| Categories | Low Work Table Vertical Injection Molding Machine |
|---|---|
| Brand Name: | TAIFU |
| Model Number: | TFW4-120R2 |
| Certification: | CE, ISO9001 |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 220 set per month |
| Delivery Time: | Negotiable |
| Packaging Details: | All the machines are fixed and well packaged in the plywood cases. |
| Key Selling Points: | High Precision |
| Warranty: | 1 year |
| Color: | White |

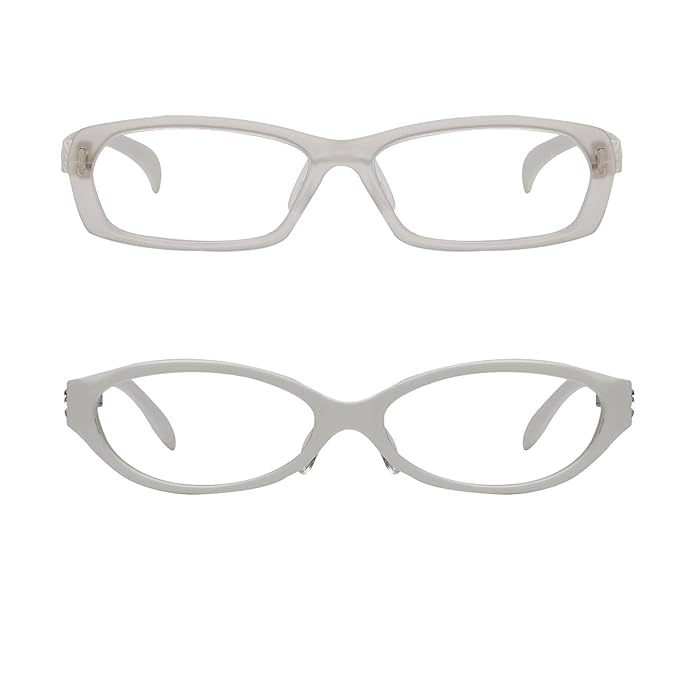

| Application: | Eyeglass Frame |
| Function: | Making Plastic Product |
| Product name: | Low Work Table Injection Molding Machine For Eyeglass Frame |
| Clamping Force: | 120 Ton |
| Motor: | Servo Motor |
| Power: | 20.2 KW |
| Advantage: | Low Work Table |

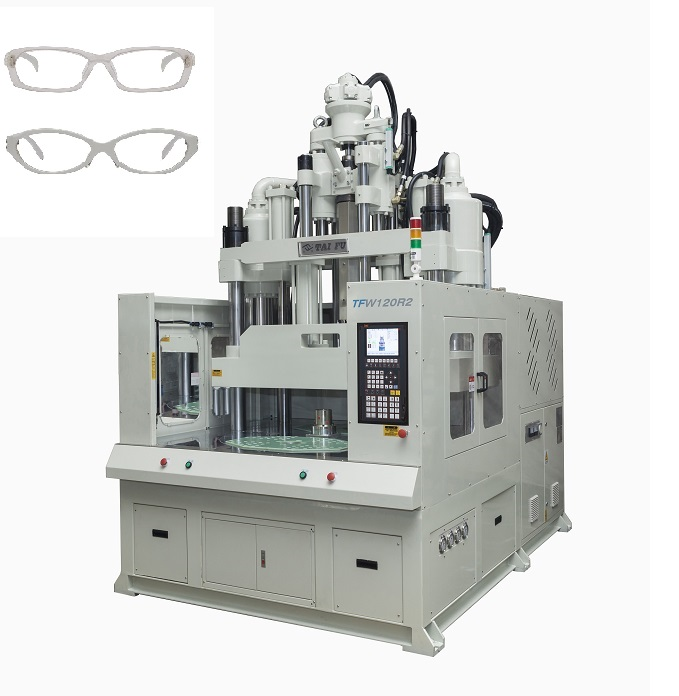

Low Work Table Injection Molding Machine For Eyeglass Frame
TAIFU low-station vertical rotary table injection molding machine adopts an ergonomic work surface to make operation more convenient and safer. The minimum diameter of the turntable is 810mm and the maximum diameter is 2300mm.
Low workbench design makes it easier to access and place inserts, saving workstation costs.
The machine is equipped with a high-performance control system to provide a strong guarantee for high-quality injection molding accuracy and stability. Because of its unique rotatable disc design, the vertical turntable injection molding machine can be used with expanded automation equipment to achieve high-quality and efficient automated production of products with complex shapes and special processes. It is now widely used in auto parts and new energy industry.
1.Specification:
| UNIT | TFW4-85R2 | TFW4-120R2 | TFW4-160R2 | ||||||||||
| Injection Unit | Screw stroke | mm | 140 | 160 | 200 | ||||||||
| Screw Diameter | mm | 32 | 36 | 40 | 36 | 40 | 45 | 45 | 50 | 55 | |||
| Theoretical Injection Volume | cm3 | 113 | 143 | 176 | 163 | 201 | 254 | 318 | 393 | 475 | |||
| Injection Weight(PS) | g | 105 | 133 | 164 | 151 | 187 | 237 | 296 | 365 | 442 | |||
| oz | 3.69 | 4.67 | 5.77 | 5.34 | 6.60 | 8.35 | 10.43 | 12.88 | 15.59 | ||||
| Max.Injection Pressure | Mpa | 228 | 180 | 146 | 222 | 180 | 142 | 218 | 177 | 146 | |||
| kgf/cm2 | 2331 | 1842 | 1492 | 2269 | 1838 | 1452 | 2226 | 1803 | 1490 | ||||
| Injection Rate | cm3/s | 100 | 126 | 156 | 128 | 158 | 200 | 167 | 206 | 249 | |||
| Max Injection Speed | mm/s | 124 | 126 | 105 | |||||||||
| Screw Speed Rotation | r.p.m | 10~280 | 10~280 | 10~280 | |||||||||
| Positioning ring diameter | mm | 120 | 120 | 120 | |||||||||
| Nozzle Out From Platens | mm | ≥45 | ≥45 | ≥45 | |||||||||
| Clamping Unit | Clamping Force | KN(ton) | 833(85) | 1176(120) | 1568(160) | ||||||||
| Clamping Stroke | mm | 280 | 300 | 350 | |||||||||
| Min.Mold Thickness | mm | 230(310) | 280(380) | 300(400) | |||||||||
| Max.Opening | mm | 510(590) | 580(680) | 650(750) | |||||||||
| (L*W)Max.Mould Size | mm | 360*360/450*320 | 420*420/560*360 | 520*520/700*450 | |||||||||
| Number of turntable stations | mm | 2 | 2 | 2 | |||||||||
| (D) Rotary Table Size | mm | φ1010 | φ1200 | φ1400 | |||||||||
| Quality of Ejector | pcs | 3 | 5 | 5 | |||||||||
| Top bar spacing | mm | 80 | 80 | 100 | |||||||||
| Ejector Distance | mm | 100 | 100 | 110 | |||||||||
| Ejector Force | KN(ton) | 45(4.6) | 45(4.6) | 45(4.6) | |||||||||
| Others | System Pressure | Mpa(kgf/cm2) | 13.7(140) | 13.7(140) | 13.7(140) | ||||||||
| Oil Tank Capacity | L | 350 | 430 | 500 | |||||||||
| Electric Power | KW | 15+2.2 | 18+2.2 | 22+2.2 | |||||||||
| Heater Power | KW | 7.0 | 10.7 | 13.7 | |||||||||
| Machine Dimensions | L*W*H | m | 2.5*1.9*2.5 | 2.6*2.0*2.9 | 2.9*2.2*3.3 | ||||||||
| Cooling water capacity | L/min | 40 | 50 | 50 | |||||||||
| Work Table Height | mm | 780+(70) | 820+(70) | 915+(80) | |||||||||
| Machine Weight | ton | 6.5 | 9.5 | 12.8 | |||||||||
2. Features:
3. Machine Pictures:
4. Applications:
5. Why choose us?
1. Best product quality and most competitive price.
2. Experienced technical personnel in production.
3. Customized design and production.
4. Excellent pre-sales and after-sales services.
6. FAQ:
Q: How about your delivery time?
Generally speaking, it will take 20 to 45 days after receiving the
advance payment. The specific delivery time depends on
Regarding your order and quantity.
Q: Are you a trading company or manufacturer?
A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.
Q: Do you test all goods before delivery?
Yes, we have 100% testing before delivery
Q: What are your payment terms?
T/T 30% deposite,70%before departure.
Q: Packaging and shipping?
The spool is plastic-covered inside and cartoned outside. Or
according to your request.
If you are interested in our machines, please do not hesitate to CONTACT US!
