| Categories | Low Work Table Vertical Injection Molding Machine |
|---|---|
| Brand Name: | TAIFU |
| Model Number: | TFW4-85R2 |
| Certification: | CE, ISO9001 |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 220 set per month |
| Delivery Time: | Negotiable |
| Packaging Details: | All the machines are fixed and well packaged in the plywood cases. |
| Key Selling Points: | Easy to Operate |
| Warranty: | 1 year |
| Color: | white & yellow |
| Application: | Ceramic Ferrules |
| Function: | Making Plastic Product |
| Product name: | Mobile Phone Spare Parts Vertical Rotary Table Injection Molding Machine |
| Clamping Force: | 85 Ton |
| Motor: | Servo Motor |
| Power: | 17.2 KW |
| Advantage: | Low Work Table |

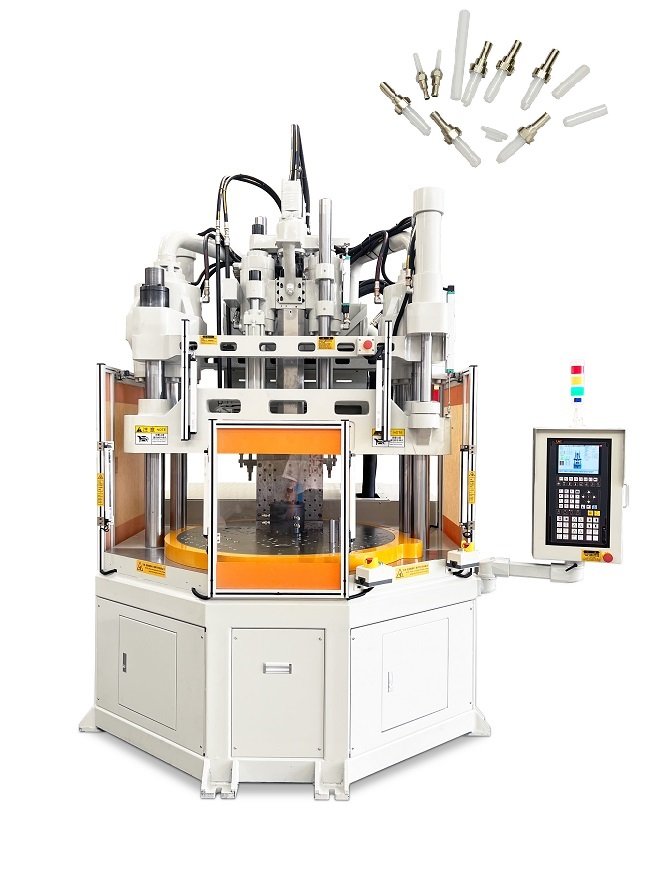

Ceramic Ferrules Injection Molding Machine With Rotary Table
TAIFU low-station vertical rotary table injection molding machine adopts an ergonomic work surface to make operation more convenient and safer. The minimum diameter of the turntable is 810mm and the maximum diameter is 2300mm.

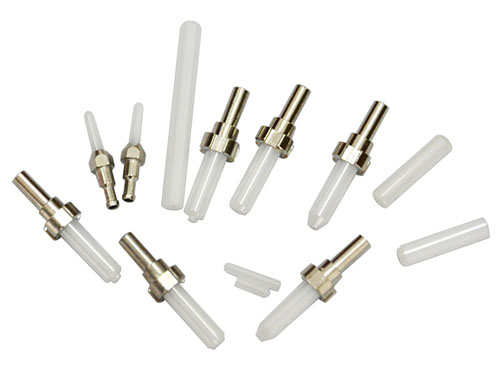

Ceramic ferrule injection molding machine with a rotary table is a specialized piece of equipment designed for the efficient and precise production of ceramic ferrules used in fiber optic applications.
The machine is equipped with a high-performance control system to provide a strong guarantee for high-quality injection molding accuracy and stability. Because of its unique rotatable disc design, the vertical turntable injection molding machine can be used with expanded automation equipment to achieve high-quality and efficient automated production of products with complex shapes and special processes. It is now widely used in auto parts and new energy industry.
1.Specification:
| UNIT | TFW4-85R2 | TFW4-120R2 | TFW4-160R2 | ||||||||||
| Injection Unit | Screw stroke | mm | 140 | 160 | 200 | ||||||||
| Screw Diameter | mm | 32 | 36 | 40 | 36 | 40 | 45 | 45 | 50 | 55 | |||
| Theoretical Injection Volume | cm3 | 113 | 143 | 176 | 163 | 201 | 254 | 318 | 393 | 475 | |||
| Injection Weight(PS) | g | 105 | 133 | 164 | 151 | 187 | 237 | 296 | 365 | 442 | |||
| oz | 3.69 | 4.67 | 5.77 | 5.34 | 6.60 | 8.35 | 10.43 | 12.88 | 15.59 | ||||
| Max.Injection Pressure | Mpa | 228 | 180 | 146 | 222 | 180 | 142 | 218 | 177 | 146 | |||
| kgf/cm2 | 2331 | 1842 | 1492 | 2269 | 1838 | 1452 | 2226 | 1803 | 1490 | ||||
| Injection Rate | cm3/s | 100 | 126 | 156 | 128 | 158 | 200 | 167 | 206 | 249 | |||
| Max Injection Speed | mm/s | 124 | 126 | 105 | |||||||||
| Screw Speed Rotation | r.p.m | 10~280 | 10~280 | 10~280 | |||||||||
| Positioning ring diameter | mm | 120 | 120 | 120 | |||||||||
| Nozzle Out From Platens | mm | ≥45 | ≥45 | ≥45 | |||||||||
| Clamping Unit | Clamping Force | KN(ton) | 833(85) | 1176(120) | 1568(160) | ||||||||
| Clamping Stroke | mm | 280 | 300 | 350 | |||||||||
| Min.Mold Thickness | mm | 230(310) | 280(380) | 300(400) | |||||||||
| Max.Opening | mm | 510(590) | 580(680) | 650(750) | |||||||||
| (L*W)Max.Mould Size | mm | 360*360/450*320 | 420*420/560*360 | 520*520/700*450 | |||||||||
| Number of turntable stations | mm | 2 | 2 | 2 | |||||||||
| (D) Rotary Table Size | mm | φ1010 | φ1200 | φ1400 | |||||||||
| Quality of Ejector | pcs | 3 | 5 | 5 | |||||||||
| Top bar spacing | mm | 80 | 80 | 100 | |||||||||
| Ejector Distance | mm | 100 | 100 | 110 | |||||||||
| Ejector Force | KN(ton) | 45(4.6) | 45(4.6) | 45(4.6) | |||||||||
| Others | System Pressure | Mpa(kgf/cm2) | 13.7(140) | 13.7(140) | 13.7(140) | ||||||||
| Oil Tank Capacity | L | 350 | 430 | 500 | |||||||||
| Electric Power | KW | 15+2.2 | 18+2.2 | 22+2.2 | |||||||||
| Heater Power | KW | 7.0 | 10.7 | 13.7 | |||||||||
| Machine Dimensions | L*W*H | m | 2.5*1.9*2.5 | 2.6*2.0*2.9 | 2.9*2.2*3.3 | ||||||||
| Cooling water capacity | L/min | 40 | 50 | 50 | |||||||||
| Work Table Height | mm | 780+(70) | 820+(70) | 915+(80) | |||||||||
| Machine Weight | ton | 6.5 | 9.5 | 12.8 | |||||||||
2. Features:
3. Machine Pictures:
4. Applications:
5. Why choose us?
1. Best product quality and most competitive price.
2. Experienced technical personnel in production.
3. Customized design and production.
4. Excellent pre-sales and after-sales services.
6. FAQ:
Q: What is the process of ceramics through injection molding?
A: It involves mixing the selected ceramic powder with binders to form the feedstock, which is then molded in a die cavity to form the required component shape. These shapes undergo a debinding process where binders are removed by using either thermal evaporation or solvent washing.
Q: Do you test all goods before delivery?
Yes, we have 100% testing before delivery
Q: How about your delivery time?
Generally speaking, it will take 20 to 45 days after receiving the
advance payment. The specific delivery time depends on
Regarding your order and quantity.
Q: Packaging and shipping?
The spool is plastic-covered inside and cartoned outside. Or
according to your request.
Q: What are your payment terms?
T/T 30% deposite,70%before departure.
If you are interested in our machines, please do not hesitate to CONTACT US!
