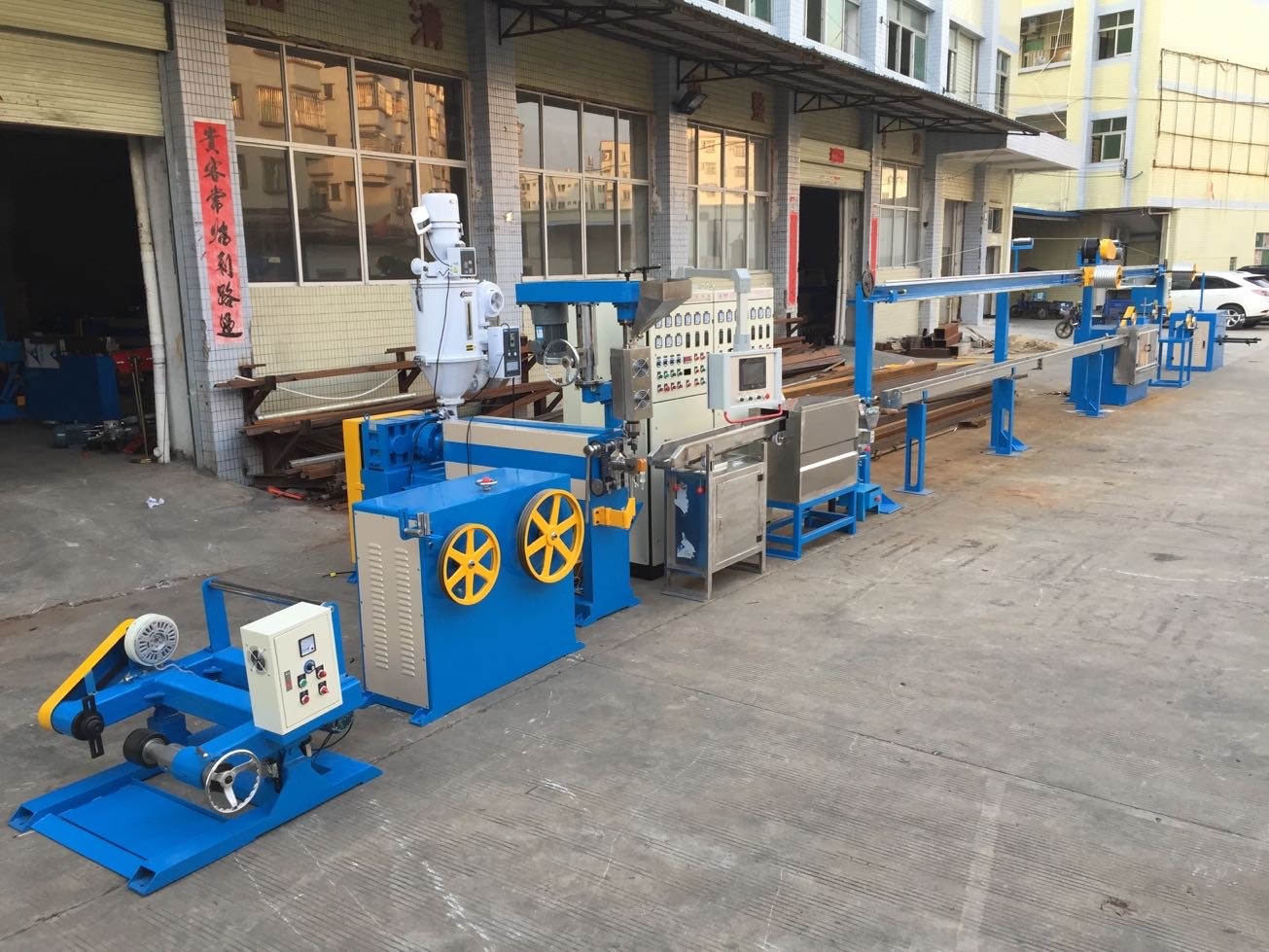

Copper Wire Extrusion Machine 140kg/h Wire Insulation Machine 70mm

Extrusion Host

Applicable Material: PVCE, Plasticization degree of 100%.

Maximum Extrusion Capacity: 280kg/hr.

Finished wire diameter: 5—20mm

Mechanical Center Height: 1000mm

Ratio of Length and Diameter: 1:25

Compression Ratio: 1:2.8

Material of Screw: One Ø90mm, Rotation Rate of Screw: 0—70RPM,

screw with whole tooth nitrogen treatment of alloy steel and chrome-plated polished surface

Material of Screw Cylinder: 38CrMoA1A alloy steel, nitrogen treatment and precisely grinding. The surface hardness inside the screw cylinder is R2-3 degree higher than that of the front surface of the screw and the screw thread.

Gearbox: Imitation of Italian-type, hardened helical gear gearbox, material of cast steel, oil-bath lubrication, tooth-face high-efficiency quenching and adoption of Japanese NACHI bearing.

Electric Heating: total 380V, with even three-phase separated flow.

Screw cylinder electric heating zone 4, the cast aluminum heating ring heating is affixed with cooling air duct.

Head electric heating zone 1, heating by cast aluminum heating ring.

Machine neck electric heating zone 1, electric plate heating

Eye die electric heating zone 1, heating by the electro-thermal tablets.

Cooling: Screw cylinder zone 4, use 4 sets of cooling fans(250W).

Control of Temperature: Use the PID automatic temperature control gauge made in Yangming, Taiwan, automatically set the control under 0-399℃ and use KTYP as the thermal-couple.

Machine head clamping: Using a ratchet quick wrench, chain drive double clamp.

Host Motor: 50HP. Jiangmen motor SINEE invertor

Head clamping: using a ratchet quick wrench, chain driven double clamping.
