120 Power Cable Extrusion Machine / Industrial Extruder Machine Cable 4*16 4*35

About us:
Our factory has been manufacturing extrusion lines for over 20 years ,we also produce copper buncher, cable twisting machine, copper drawing machine.Until now we have exported some production lines to Pakistan, iraq,Tunisia, Algerial, Egypt, India, Afghanistan,Nigeria, Sudan, we are still working on other country,

Main brands for our machine

Technical parameters sheet:

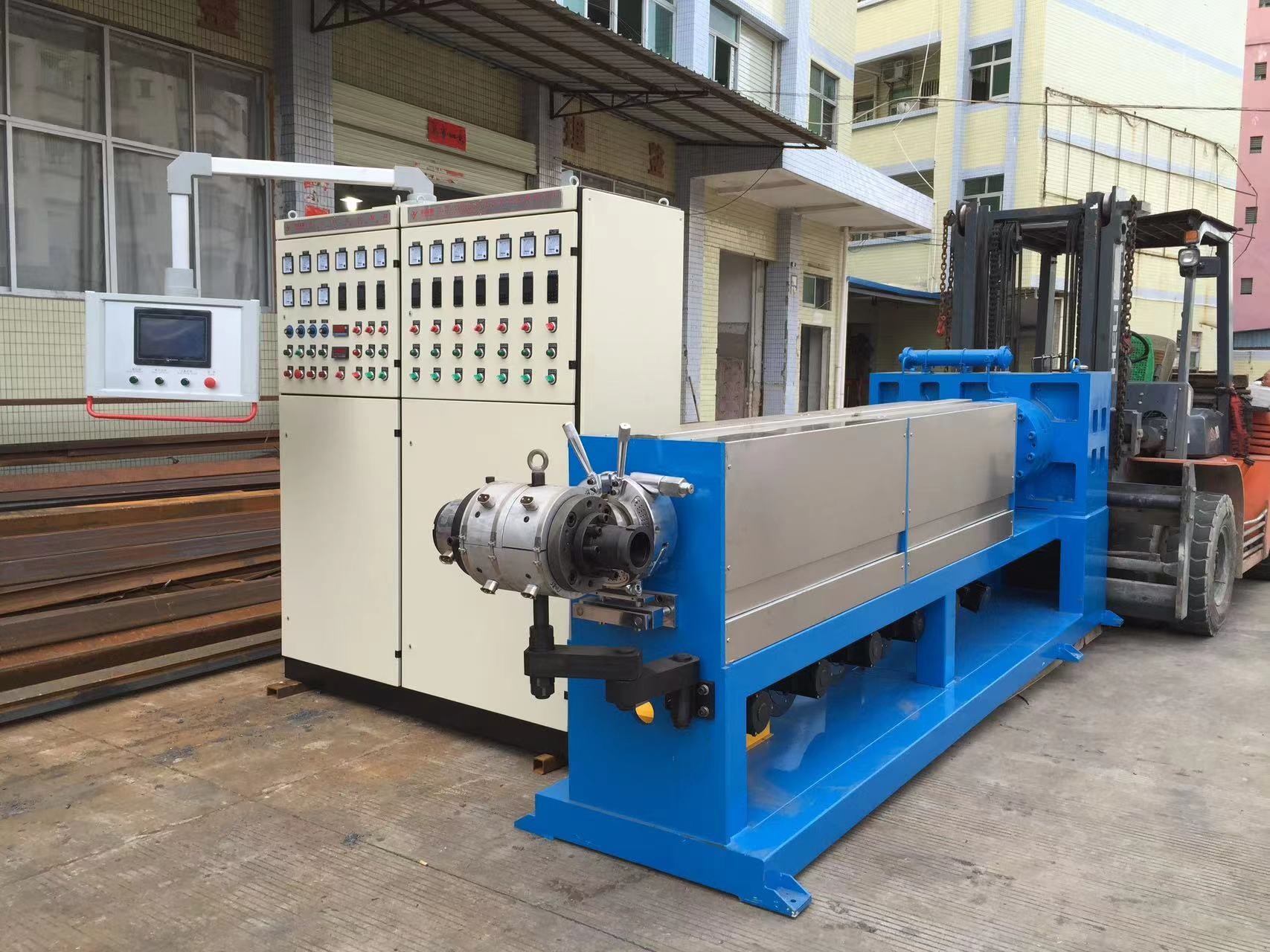

120 extruder

1, applicable materials: PVC, PE, PP plasticizing degree 100%

2, the maximum extrusion volume: 480kg/hr

3, finished wire diameter: 3 - 25mm

Center 4, mechanical height: 1000mm

5, the ratio of length to diameter: 25:1

6, the compression ratio: 2.8 times

7, screw diameter 120mm speed 0-60rpm, material 38CrMoA1A alloy steel teethnitrogen treatment, surface polishing of hard chromium plating

8, screw tube: diameter 120mm, material 38CrMoA1A alloy steel, nitriding,cylinderprecision grinding, hardness screw cylinder surface is higher than the screw thread frontal hardness R2 ~ 3 degrees.

9, gear box: imitation of Italy square reducer, hardened helical gear drive box of cast steel material, the oil bath type lubrication, tooth surface high-frequency quenching andgrinding, gear box through the bottom of the circulating cooling water for cooling, the lubricating oil has the advantages of compact structure, low noise.

10, the electric heating: 380V, three-phase shunt uniform

Screw cylinder electric heating area 5 ,cast aluminum heating coil heating of cooling airslot

Machine neck electric heating zone 1, electric heater

Head electric heating zone 1, cast aluminum heating coil heating

Eye model electric heating area 1, electric heater

11, the screw cylinder cooling: District 5, cooling fan 5

12, temperature control: using Taiwan Yangming temperature table 0 to 399 DEG temperature control automatic setting control, thermocouple with KTYP

13, the host motor: 110KW Jiangmen electric, sine inverter control to achieve thesynchronization and the take-off speed, convenient adjustment, stable operation.

14, using a ratchet head clamping: quick wrench, chain drive double clamp

YUYANG MACHINE Was established in Dongguan city which is close to Guangzhou city in the year of 2013.

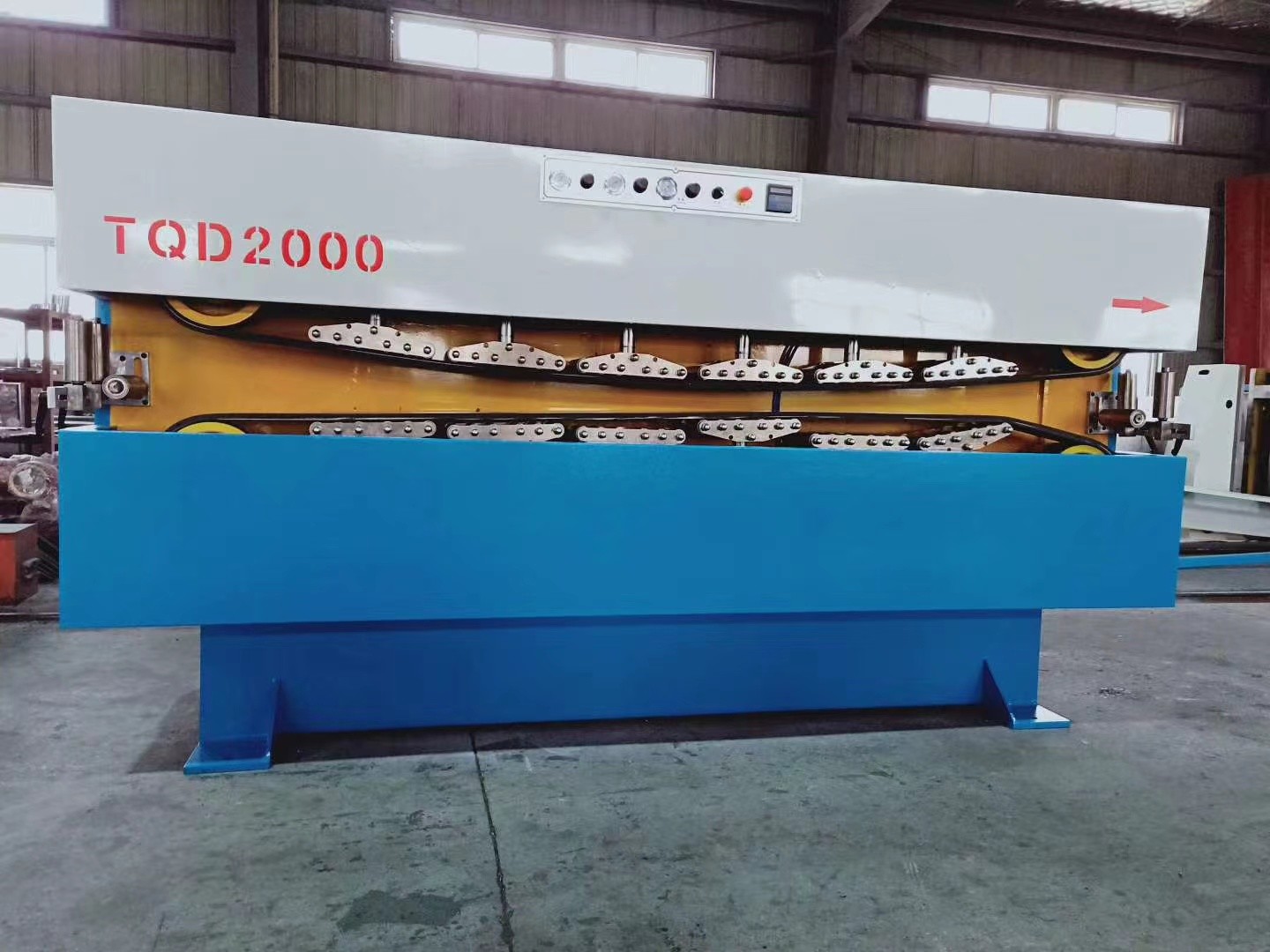

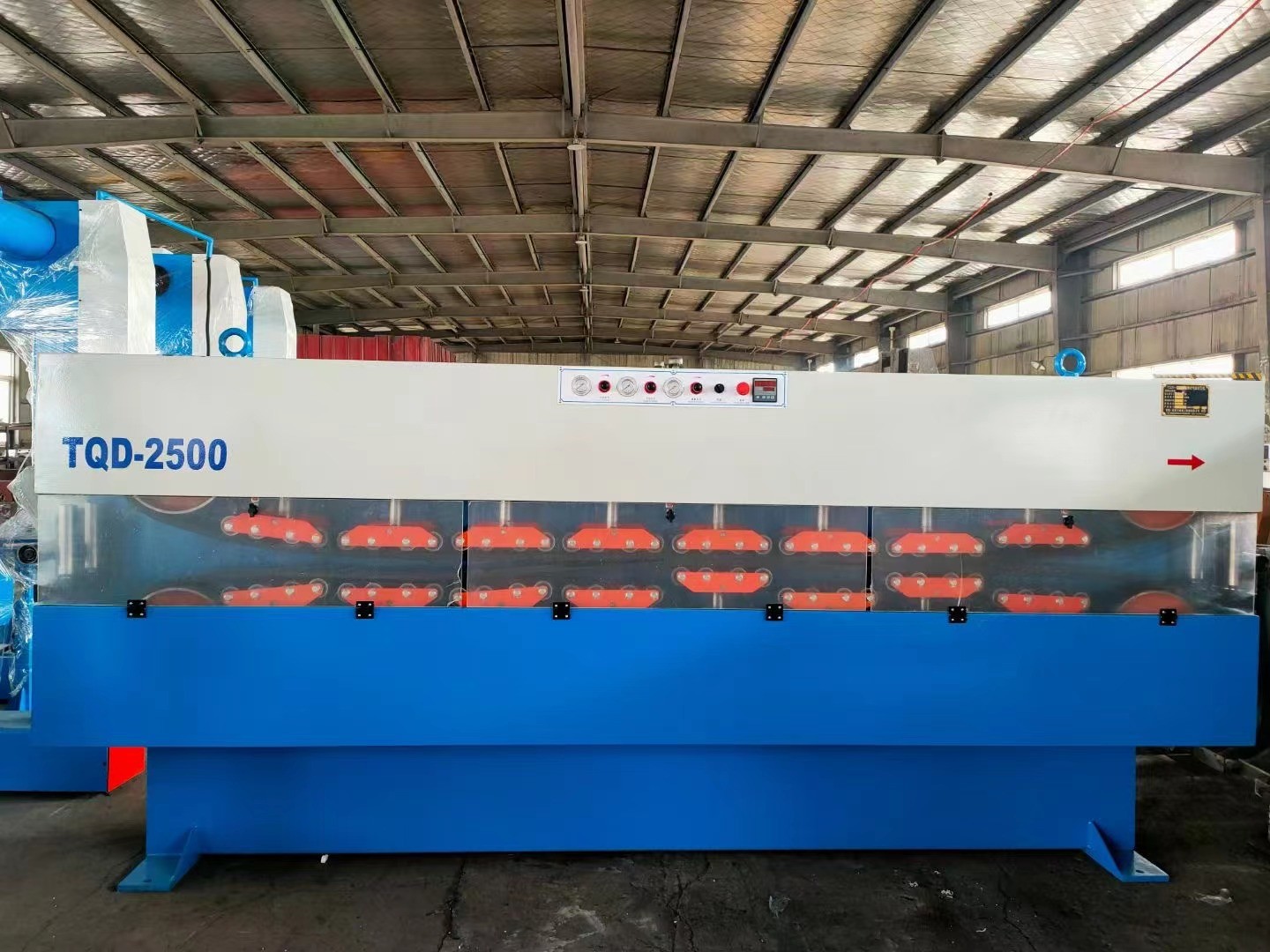

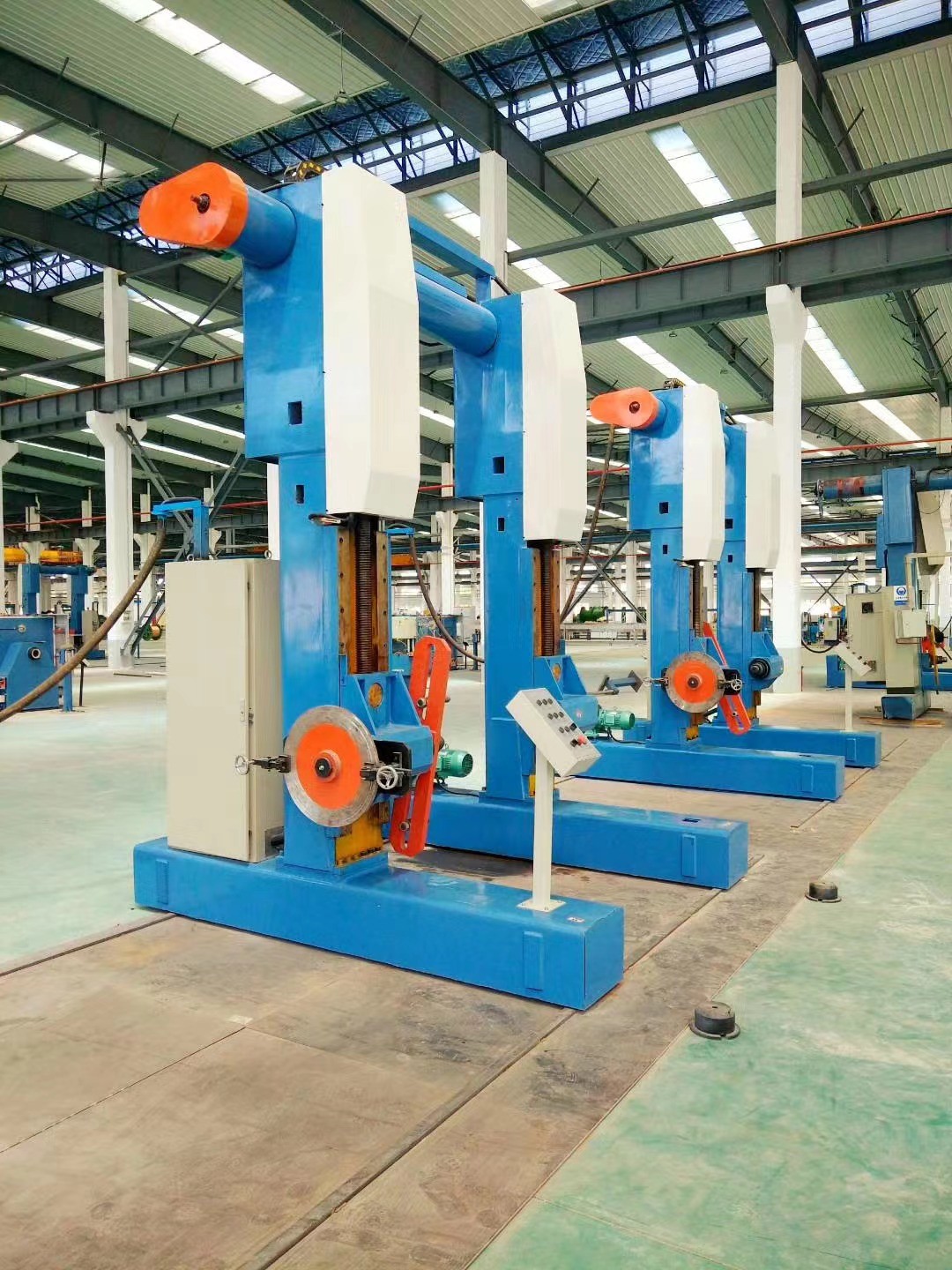

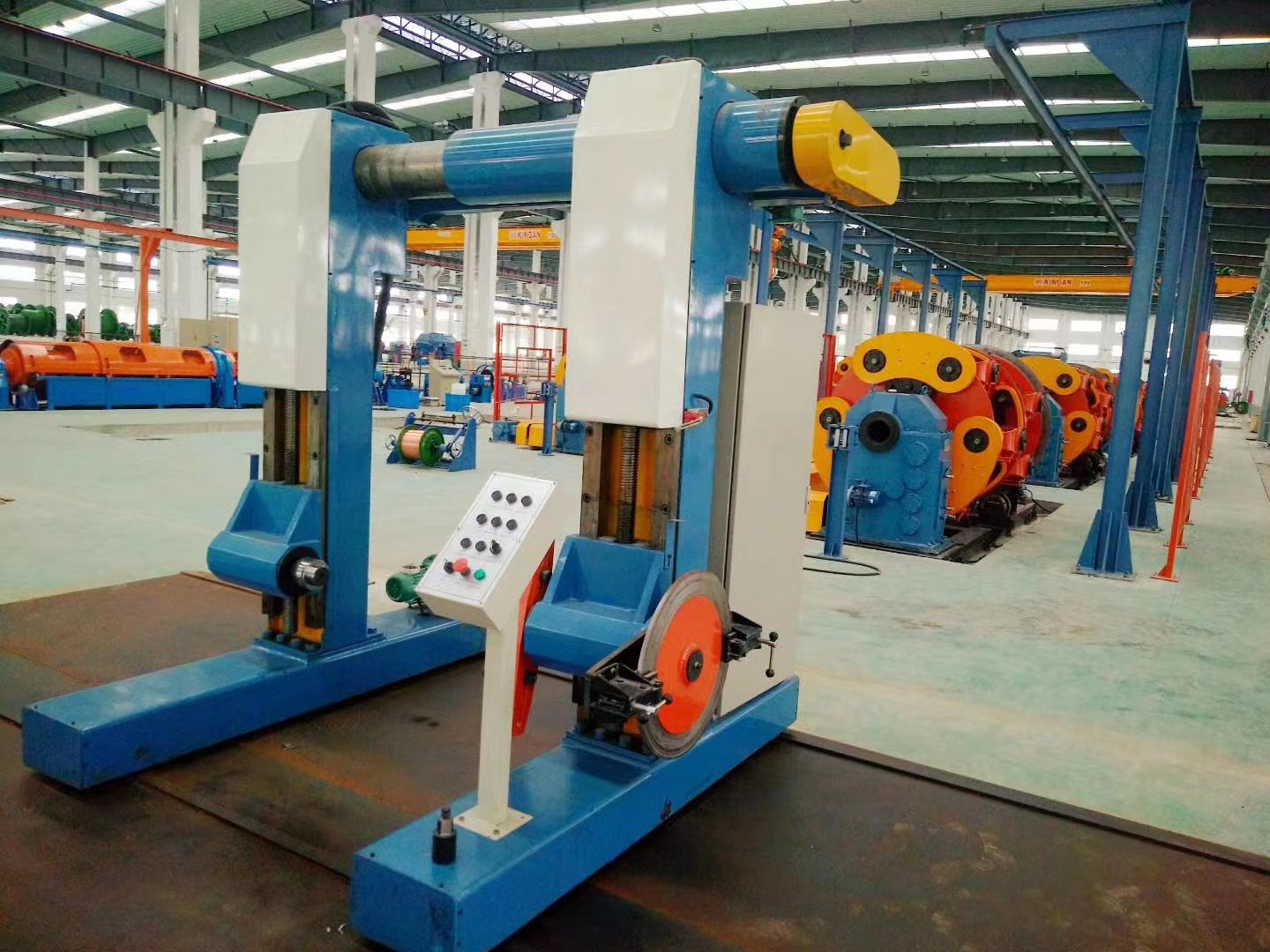

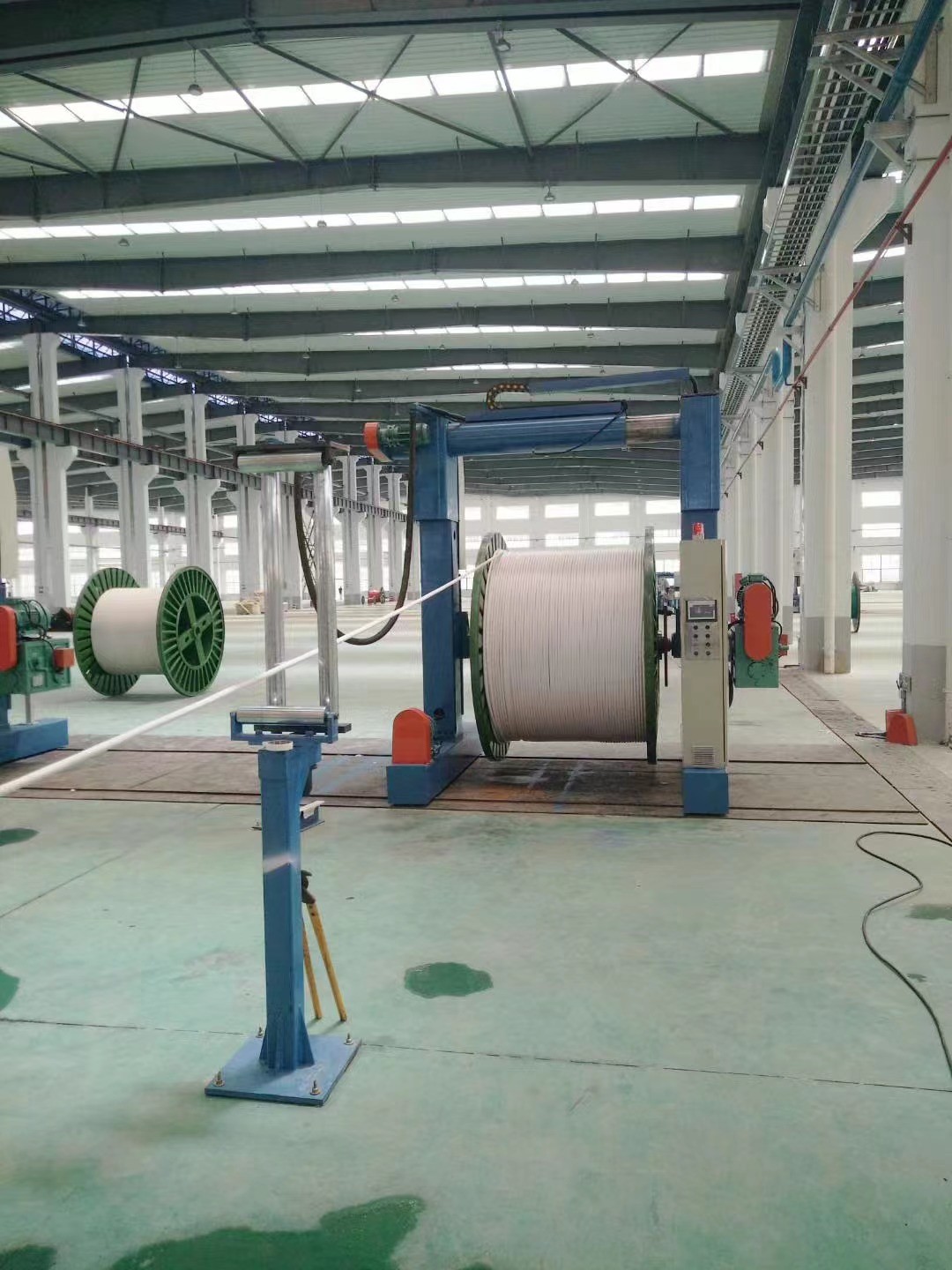

YUYANG MACHINE is professional manufacturer of cable extruder machine, copper bunching machine, wire twisting machine, cable twisting machine, tapping machine. And we also provide parts like pay off rack, pay off machine, OD testing machine, Cable printing machine , coiling machine, meter count stand, caterpillars, pulling machine, iron bobbin, ABS bobbin.

We make 50 extruder line, 70 extruder line, 80 extruder line, 90 extruder line, 100 extruder line;120 extruder line, 150 extruder line, 630 cantilever twisting machine line, 800 cantilever twisting machine line, 1000 cantilever twisting machine line, 1250 cantilever twisting machine line, 1000 bow twisting machine line. 1250 bow twisting machine line, 500 bunching line,630 bunching line, frame twisting machine line, tapping machine line.

We can help customer set up new cable factory, we can provide new production line for CAT5&6 internet cable, television TV cable, house wire, power cable, fire cable, automotive wire,We have engineer who have more than 20 years ...
