| Categories | HDMI Extender |
|---|---|
| Brand Name: | LINK-MI |
| Model Number: | LM-K120H |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, PayPal, Bank Transfer |
| Delivery Time: | 5-7 work days |
| Packaging Details: | White/Brown/Color Box |
| Model No: | LM-K120H |
| Resolutions: | 480P/720P/1080P |
| Support audio format: | LPCM |
| Max bandwidth: | 148.5MHz |
| Max baud rate: | 1Gbps |
| Size(L-W-H): | 98*78*28mm |
| Support video color format: | 8bit YCbYCr/RGB |
| The max working current: | 400mA |
| Operating Temperature/Humidity: | <0℃-45℃/10%-80%RH(no condensation) |
| Storage Temperature/Humidity: | <-10℃-70℃/5%-90%RH(no condensation) |
1080P 120M HDMI KVM UTP Extender Over Cat5E/6 Cable Optional IR Function
Introduction
LINK-MI LM-K120H This series of extender is used to transmit 1080P HD HDMI audio and video, USB keyboard and mouse and other signals of the device, including a number of styles, the user according to the actual needs of the corresponding style can be selected. Using the national standard oxygen-free copper CAT5E (24WAG gauge / 0.53 wire diameter) single cable can transmit the signal up to 120 meters, using the national standard oxygen-free copper CAT6 (23WAG gauge / 0.56 wire diameter) or above the maximum transmission of 160 meters of cable. And provide HDMI output port on the sending end to connect to a local monitor. The built-in EDID of the extender greatly improves the compatibility of the device. The device has a long transmission distance, low cost, easy to install, good compatibility, is a stable and efficient transmission method, widely used in computer monitoring systems, high-definition conference systems, high-definition teaching systems, high-definition digital advertising and other signal transmission areas.
Feature
1. Support 120m long distance transmission.
2. Support point-to-point mode and cascade connection mode.
3. Low power consumption, low temperature and high safety.
4. Support IR remote control.
5. Support USB mouse and keyboard extension.
6. The design of pure hardware, plug and play.
7. Support resolution up to 1080P.
Specification
| Model No. | LM-K120H |
| Resolutions | 480P/720P/1080P |
| Support video color format | 8bit YCbYCr/RGB |
| Support audio format | LPCM |
| Max bandwidth | 148.5MHz |
| Max baud rate | 1Gbps |
| Input HDMI cable distance | <10m AWG26 HDMI standard cable |
| Output HDMI cable distance | <15m AWG26 HDMI standard cable |
| Power adapter format | Input AC (50HZ, 60HZ) 100V-240V; output: DC5V/1A |
| The max working current | 400mA |
| Size(L-W-H) | 98*78*28mm |
| Operating Temperature/Humidity | 0℃-45℃/10%-80%RH(no condensation) |
| Storage Temperature/Humidity | -10℃-70℃/5%-90%RH(no condensation) |
| Note: Specifications are subject to change without notice. | |

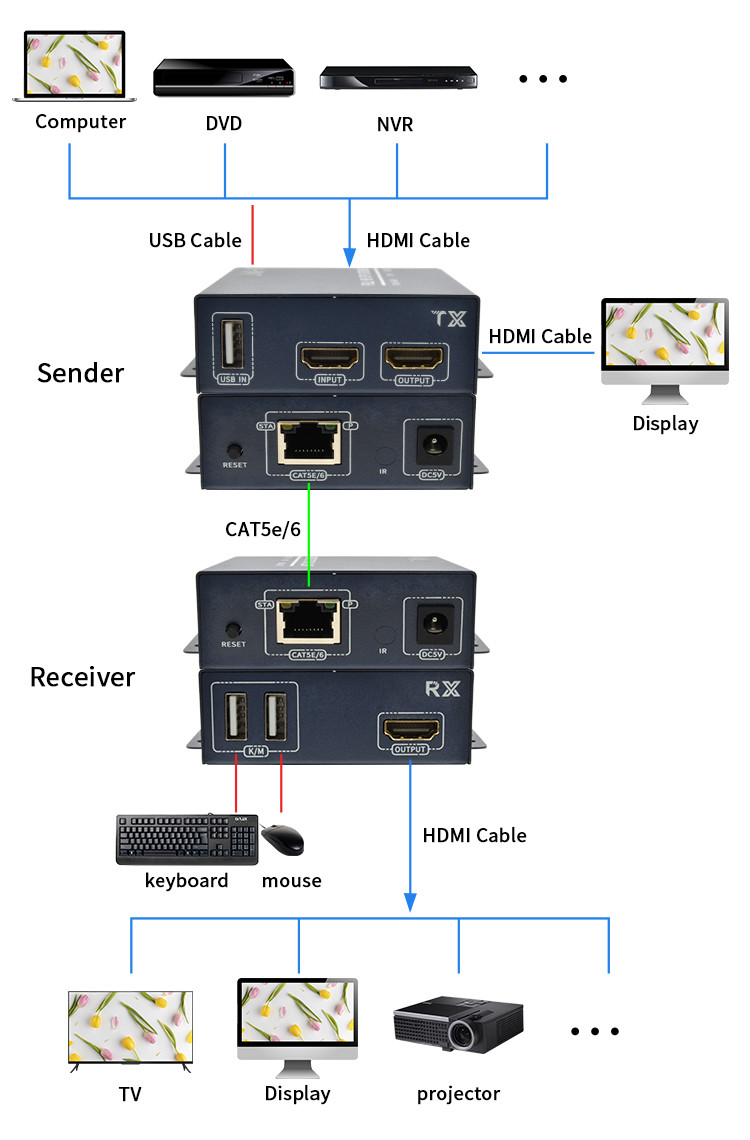

Connection Diagram

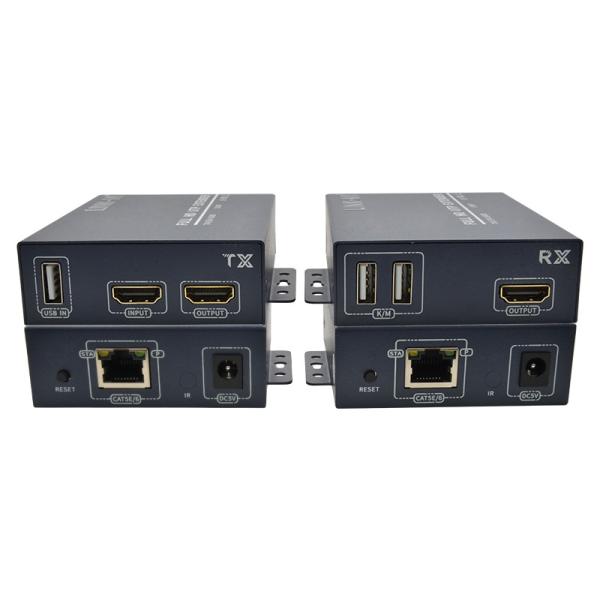

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-K120H 120m HDMI KVM Extender.pdf
|
