100m Extender HDMI Over Wireless Extender Support Point To Multicast Up To 4 Receivers

Categories HDMI Extender
Brand Name: LINK-MI
Model Number: LM-WE01
Place of Origin: China
MOQ: 1
Price: Negotiable
Payment Terms: T/T, Western Union, PayPal, Bank Transfer
Delivery Time: 5-7 work days
Packaging Details: White/Brown/Color Box
Model No.: LM-WE01
Video Resolutions: up to 1080P@50/60Hz
Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
Modulation Method: BPSK/QPSK/16-QAM/64-QAM
Wireless Standard: 802.11a/b/g/n
Wireless Band: 2.4GHz, 5GHz ISM Band
Operation Range: Up to 100 meters in open space
ESD Protection: Human body model — ±8kV (air-gap discharge) & ±4kV (contact dischrg)
Transmitter: Inputs: 1x HDMI Type A [19-pin female] Outputs: 1x HDMI Type A [19-pin female] 1x USB [Mini USB Type ] 1x IR Out [3.5mm Stereo Mini-jack]
Receiver: Inputs: 2x USB [USB Type A] 1x IR In [3.5mm Stereo Mini-jack] Outputs: 1x HDMI Type A [19-pin female]
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

100m Extender HDMI Over Wireless Extender Support Point To Multicast Up To 4 Receivers

100m HDMI over Wireless Extender Support Point to Multicast Up to 4 Receivers


Introduction

LINK-MI LM-WE01 The HDMI over wireless kit extends high-definition video and audio to any HDTV displays up to 100 meters away. It supports up to 4 displays to show one source content synchronously and resolutions up to 1080P. The extender transmits the vivid real time video and audio signals with very low latency, allowing users to view the content in other rooms of the house or office. It also allows users to control source device from display unit via source device's remote control.


Features

1. Full HD 1080p transmits up to 100 meters wirelessly in open space.
2. Supports Point-to-Point and Multicast transmission(up to 4 receivers)
3. Extends infrared remote to control source device from display side.
4. USB HID transmission from display to source.
5. Simple Plug and Play,no software installation required.


Specification

Technical

HDMI Compliance

HDMI 1.4b

HDCP Compliance

HDCP 1.4

Video Bandwidth

6.75 Gbps

Video Resolutions

up to 1080P@50/60Hz

Color Space

RGB, YCbCr 4:4:4, YCbCr 4:2:2

Color Depth

8-Bit

HDMI Audio Formats

LPCM 2CH

Modulation Method

BPSK/QPSK/16-QAM/64-QAM

Wireless Standard

802.11a/b/g/n

Wireless Band

2.4GHz, 5GHz ISM Band

Operation Range

Up to 100 meters in open space

ESD Protection

Human body model — ±8kV (air-gap discharge) & ±4kV (contact dischrg)

Connections

Transmitter

Inputs: 1x HDMI Type A [19-pin female]

Outputs: 1x HDMI Type A [19-pin female]

1x USB [Mini USB Type ]

1x IR Out [3.5mm Stereo Mini-jack]

Receiver

Inputs: 2x USB [USB Type A]

1x IR In [3.5mm Stereo Mini-jack]

Outputs: 1x HDMI Type A [19-pin female]

Mechanical

Housing

Aluminum Enclosure

Color

Black

Dimensions

142mm [W] x 80mm [D] x 19mm [H]

Weight

TX: 270g RX: 260g

Power Supply

Input: AC100 - 240V 50/60Hz

Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)

Power Consumption

3W (Max)

Operation Temperature

32-104°F/0-40°℃

Storage temperature

-4-140°F/-20-60°℃

Relative Humidity

20-90% RH (no condensation)

Note: Specifications are subject to change without notice

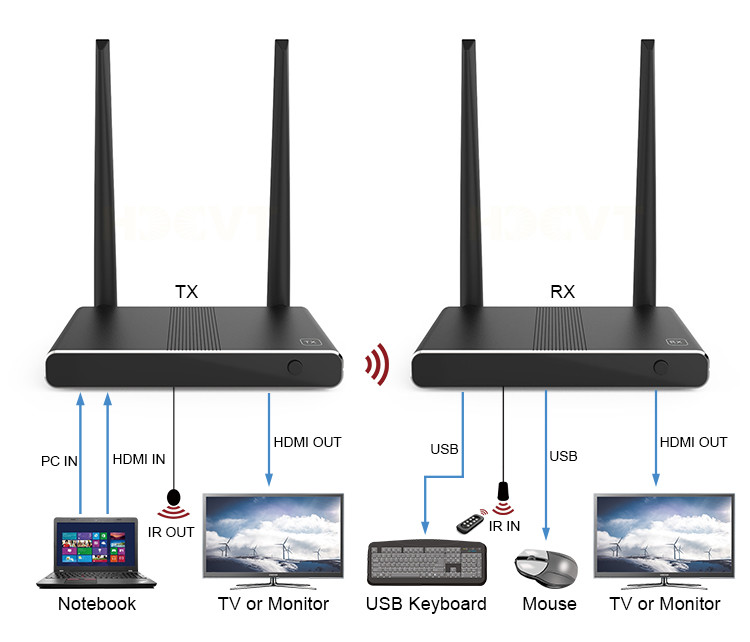

Connection Diagram


Panel Description


FAQ

Q1: Are you a factory or trading company?

A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.

Q2: Why should we choose you?

A2: We can offer products with factory price, good quality, best service and long warranty.

Q3: How about your product service?

A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.

Q4: How about the payment terms?

A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.

Q5: How do you ship the package?

A5: DHL, Fedex, EMS, by air, by sea...etc.

Q6: What kinds of warranty do you offer?

A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.

Q7: How could I buy the products I need if there is no price on the website?

A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.


User Manual:

LM-WE01 100M Wireless HDMI Extender support up to ...
