Online Vertiv GXT UPS 8kVA 8kW 208V GXT5-8000IRT5UXLE

Online Vertiv GXT UPS 8kVA 8kW 208V GXT5-8000IRT5UXLE

Online Vertiv GXT UPS 8kVA 8kW 208V GXT5-8000IRT5UXLE
Online Vertiv GXT UPS 8kVA 8kW 208V GXT5-8000IRT5UXLE
Categories Vertiv GXT
Brand Name: Vertiv
Model Number: Vertiv GXT5 UPS
Certification: CE
Place of Origin: China
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/months
Delivery Time: 60days
Packaging Details: cartons
Product name: Vertiv GXT5 UPS
Power level: 5KVA - 20KVA
Technology: 230 VAC
Product type: Tower UPS/Rack-mounted UPS
Input Voltage: 230 VAC
Rated Frequency: 50 Hz / 60 Hz
Frequency Range: 40-70Hz; Auto Sensing
Output Voltage: 200/208/220/230/240 VAC
Rated frequency: 50-60Hz
Waveform: Sine wave
Battery Type: Valve-regulated,non-spillable, lead acid
Rated Voltage: 36 Vdc, 48 Vdc, 72 Vdc
Charger Current: Nominal 2.2 A; Maximum 8 A
Operating Temperature: Full power up to 40 ºC (up to 50 ºC with derating)
Storage Temperature, °C: - 15 to + 40
Relative Humidity: 0 to 95% non-condensing
Operating Elevation: Up to 3,000 m at 25°C without derating
Audible Noise: 55dB
Safety: UL-1788, IEC62040-1:2008 version, GS mark
Emissions: IEC/EN/AS 62040-2 2nd Ed (Cat 2)
Transportation: ISTA Procedure 1E
Contact Now
Company Info.
Visench Technology Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

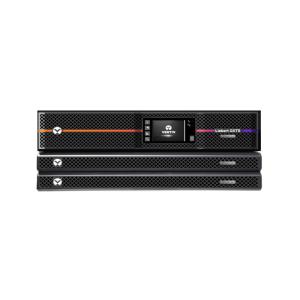

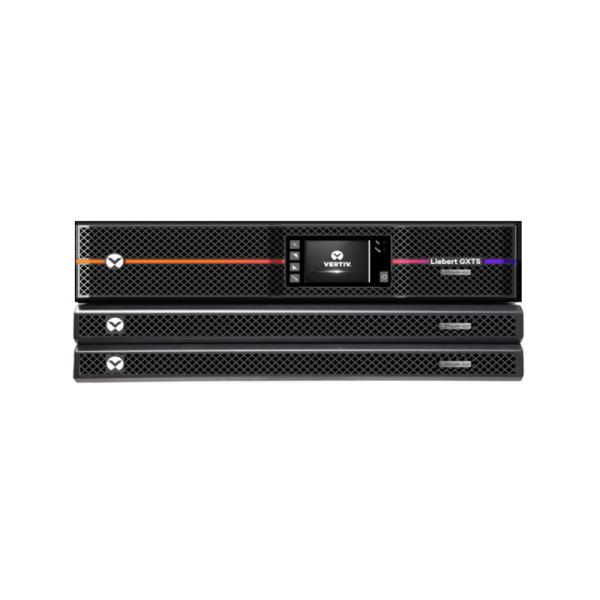

Online Vertiv GXT UPS 8kVA 8kW 208V GXT5-8000IRT5UXLE


Vertiv Liebert GXT5 UPS 8kVA/8kW 208V Online Rack Tower UPS GXT5-8000IRT5UXLE


Liebert™ GXT5 UPS is an online double conversion UPS solution which offers premium power outage protection and continuous power conditioning in a compact and flexible deployment system. It protects critical equipment from all power disturbances due to blackouts, brownouts, saps, surges or noise interference. Scalable runtime option with matching auto-detection external battery cabinets offer additional flexibility when extended uninterrupted power is required. User friendly LCD interface as well as full network management capability, including configuration and remote updates, make this system easy to deploy and simple to maintain. With market leading efficiency and unity power factor operation, the Liebert™ GXT5 will fill your critical applications needs.


Technical Data

Power
Output voltage regulation3%
Output power factor1
Input power factor0.99
Output power8000 W
Input operation voltage (min)176 V
Input operation voltage (max)288 V
Output operation voltage (min)230 V
Output operation voltage (max)240 V
Efficiency95%
Emergency Power Off (EPO)Yes
Power factor1
Output power capacity8000 VA
Efficiency (On-line mode)95%
Single-phase input voltage supported220,230,240 V
Battery
Battery typeVRLA
Number of batteries supported16
Battery voltage12 V
Battery capacity9 Ah
Battery technologySealed Lead Acid (VRLA)
Typical backup time at half load9.5 min
Typical backup time at full load3.5 min
Hot-swap batteryYes
Battery recharge time(90%)5 h
Performance
UPS topologyDouble-conversion (Online)
WaveformPure sine
Number of output phases1
Number of input phases1
Power protection featuresOverload
Noise level55 dB
Audible alarm(s)Yes
Overload capacity (1 minute)150%
Overload capacity (5 minute)125%
Features
Output frequency50/60 Hz
UPS topologyDouble-conversion (Online)
WaveformPure sine
Output voltage regulation3%
Number of output phases1
Number of input phases1
Output power factor1
Input power factor0.99
Output power8000 W
Input operation voltage (min)176 V
Input operation voltage (max)288 V
Output operation voltage (min)230 V
Output operation voltage (max)240 V
Efficiency95%
Emergency Power Off (EPO)Yes
Power protection featuresOverload
Power factor1
Noise level55 dB
Audible alarm(s)Yes
Output power capacity8000 VA
Overload capacity (1 minute)150%
Overload capacity (5 minute)125%
Efficiency (On-line mode)95%
Single-phase input voltage supported220,230,240 V
Input frequency50/60 Hz
Ports & interfaces
USB portYes
AC outlets quantity8 AC outlet(s)
AC outlet typesC13 coupler,C19 coupler,IEC 320,Terminal
Serial ports quantity1
RS-232 ports1
Design
International Protection (IP) codeIP20
Rack capacity5U
Form factorRackmount/Tower
Product colourBlack
SafetyIEC62040-1:2008
DisplayLCD
Cooling typeActive
CertificationCE, EMI/EMC/C-Tick EMC, ESD
RoHS complianceYes
Operational conditions
Operating temperature (T-T)0 – 40 C
Storage temperature (T-T)-15 – 40 C
Operating relative humidity (H-H)0 – 95%
Storage relative humidity (H-H)0 – 95%
Operating altitude0 – 3000 m
Technical details
Output voltage230 V
Output frequency50/60 Hz
Cooling
Cooling typeActive
Weight & dimensions
Weight74.5 kg
Width430 mm
Height217 mm
Depth630 mm
Package width646 mm
Package depth816 mm
Package height520 mm
Package weight93 kg
Packaging data
Package width646 mm
Package depth816 mm
Package height520 mm
Package weight93 kg
Certificates
SafetyIEC62040-1:2008
CertificationCE, EMI/EMC/C-Tick EMC, ESD
RoHS complianceYes
Other features
Output voltage230 V
Battery typeVRLA
