Name: Online UPS Vertiv GXT 16kVA 16000W 230V GXT516KIRT9UXLE
Brand: Vertiv
Price: 1 USD

Home > Wires, Cables & Cable Assemblies >

Online UPS Vertiv GXT 16kVA 16000W 230V GXT5-16KIRT9UXLE

Categories	Vertiv GXT
Brand Name:	Vertiv
Model Number:	Vertiv GXT5 UPS
Certification:	CE
Place of Origin:	China
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1000pcs/months
Delivery Time:	60days
Packaging Details:	cartons
Product name:	Vertiv GXT5 UPS
Power level:	5KVA - 20KVA
Technology:	230 VAC
Product type:	Tower UPS/Rack-mounted UPS
Input Voltage:	230 VAC
Rated Frequency:	50 Hz / 60 Hz
Frequency Range:	40-70Hz; Auto Sensing
Output Voltage:	200/208/220/230/240 VAC
Rated frequency:	50-60Hz
Waveform:	Sine wave
Battery Type:	Valve-regulated,non-spillable, lead acid
Rated Voltage:	36 Vdc, 48 Vdc, 72 Vdc
Charger Current:	Nominal 2.2 A; Maximum 8 A
Operating Temperature:	Full power up to 40 ºC (up to 50 ºC with derating)
Storage Temperature, °C:	- 15 to + 40
Relative Humidity:	0 to 95% non-condensing
Operating Elevation:	Up to 3,000 m at 25°C without derating
Audible Noise:	55dB
Safety:	UL-1788, IEC62040-1:2008 version, GS mark
Emissions:	IEC/EN/AS 62040-2 2nd Ed (Cat 2)
Transportation:	ISTA Procedure 1E

Contact Now

Add to Cart

Company Info.

Visench Technology Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

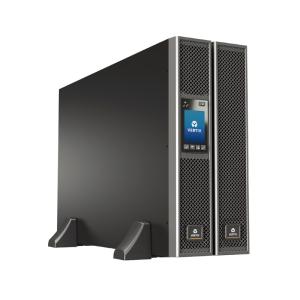

Online UPS Vertiv GXT 16kVA 16000W 230V GXT5-16KIRT9UXLE

Vertiv Liebert GXT5 16kVA 16000W 230V Online UPS GXT5-16KIRT9UXLE

Liebert GXT5, 16000 VA, 16000 W, 230 V, EU, 217x430x630 mm

Liebert™ GXT5 UPS is an online double conversion UPS solution which offers premium power outage protection and continuous power conditioning in a compact and flexible deployment system. It protects critical equipment from all power disturbances due to blackouts, brownouts, saps, surges or noise interference. Scalable runtime option with matching auto-detection external battery cabinets offer additional flexibility when extended uninterrupted power is required. User friendly LCD interface as well as full network management capability, including configuration and remote updates, make this system easy to deploy and simple to maintain. With market leading efficiency and unity power factor operation, the Liebert™ GXT5 will fill your critical applications needs.

The Vertiv Liebert GXT5 16kVA Tower/Rack Mount UPS is a 16KVA/16kW true on-online uninterruptible power supply from Server Room Environments that will deliver a continuous, high quality AC power output to connected devices without interruption when transferring from or to battery power. The standard runtime of 3.5m (internal battery) can be extended by installing additional battery extension packs with the UPS to provide several hours of runtime.

The Liebert GXT5 UPS system is available in 750VA, 1kVA, 1.5kVA, 2kVA, 3kVA, 6kVA, 8kVA, 10kVA, 16kVA and 20kVA sizes.

GXT5 16kVA UPS Features

On-line design means zero transfer time
Wider input voltage minimizes battery usage
High output power factor = 1
High efficiency (up to 94%) in on-line mode
ECO mode option allows improved energy efficiency (up to 98%)
Programmable sockets for power cycling hung equipment and optimum battery usage
Individually controllable output power sockets
External battery cabinets with auto-detection
Battery health status and replacement date prediction
Remote management, update and configuration
Optimized thermal management and variable speed fan
Full colour graphic LCD display with gravity sensing
Compact Rack / Tower design
Easy to install, configure and operate
Vertiv RDU101 network communications card with advanced features
Compatibility with environmental monitoring sensors
Integrated dry-contacts with selectable functions
Free Trellis Power Insight management software
Serial Port for out-of-band management with Avocent Serial Consoles
Automatic internal bypass and additional external maintenance bypass as an option
RoHS and REACH compliance

The GXT5 provides extensive communications for power monitoring, control and preventative maintenance. The UPS has four onboard, user-definable dry contact I/O for integration with support and building management systems, supports SNMP, web, and environmental sensors with the optional RDU101 Communications card, provides serial connection for integration of Avocent ACS product or direct serial management and control of the UPS.

Technical Data

Power
Output voltage regulation	3%
Output power factor	1
Output power	16000 W
Input operation voltage (min)	176 V
Input operation voltage (max)	288 V
Output operation voltage (max)	240 V
Efficiency	95%
Power factor	1
Output power capacity	16000 VA
Efficiency (On-line mode)	95%
Performance
UPS topology	Double-conversion (Online)
Waveform	Sine
Number of output phases	1
Number of input phases	1
Power protection features	Overload
Noise level	58 dB
Features
Output frequency	50/60 Hz
UPS topology	Double-conversion (Online)
Waveform	Sine
Output voltage regulation	3%
Number of output phases	1
Number of input phases	1
Output power factor	1
Output power	16000 W
Input operation voltage (min)	176 V
Input operation voltage (max)	288 V
Output operation voltage (max)	240 V
Efficiency	95%
Power protection features	Overload
Power factor	1
Noise level	58 dB
Output power capacity	16000 VA
Efficiency (On-line mode)	95%
Input frequency	40 – 70 Hz
Ports & interfaces
USB port	Yes
Serial interface type	RS-232,RS-485
AC outlets quantity	6 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Serial ports quantity	1
Battery
Number of batteries supported	32
Battery voltage	12 V
Battery capacity	9 Ah
Battery technology	Sealed Lead Acid (VRLA)
Typical backup time at half load	9.5 min
Typical backup time at full load	3.5 min
Design
International Protection (IP) code	IP20
Form factor	Rackmount/Tower
Product colour	Black
Safety	IEC62040-1:2008, GS; UL1778, c-UL
Display	LCD
Certification	IEC/EN/AS 62040-2 2nd Ed (Cat 2 6); FCC 15 A CISPR22 A(RFI) CE
Operational conditions
Operating temperature (T-T)	0 – 40 C
Storage temperature (T-T)	-15 – 40 C
Operating relative humidity (H-H)	0 – 95%
Storage relative humidity (H-H)	0 – 95%
Operating altitude	0 – 3000 m
Technical details
Output frequency	50/60 Hz
Bypass	Yes
Sustainability certificates	RoHS, ENERGY STAR
Weight & dimensions
Weight	135.2 kg
Width	430 mm
Height	394 mm
Depth	630 mm
Package width	900 mm
Package depth	1200 mm
Package height	700 mm
Package weight	186.7 kg
Packaging data
Package width	900 mm
Package depth	1200 mm
Package height	700 mm
Package weight	186.7 kg
Certificates
Safety	IEC62040-1:2008, GS; UL1778, c-UL
Certification	IEC/EN/AS 62040-2 2nd Ed (Cat 2 6); FCC 15 A CISPR22 A(RFI) CE
Other features
Output connections	Hardwire
Input connection type	Hardwire (common or split bypass)
Overload protection	Yes
Nominal output voltage	230 V
Nominal input voltage	200-240 V
Bypass	Yes
