The film winder stacker is used to tighten the inner core of the film winder and paper roll stacker. It is based on the principle that the utility model relates to a tensioning structure applied to a film winder, including a fixed shaft, a tensioning member set on the fixed shaft, and a lock nut mounted on the fixed shaft. The utility model has the advantages of simple operation, compact structure, fast tightening speed, effective improvement of the tensioning force and maintenance of a large torque, favoring improvement of the stability of the film sealing or tearing, improvement of the work efficiency, and adaptability to the film winding of different inner diameters. We apply this film winding and tensioning structure to electric stacker, all operations are electric, which greatly improves the working efficiency.

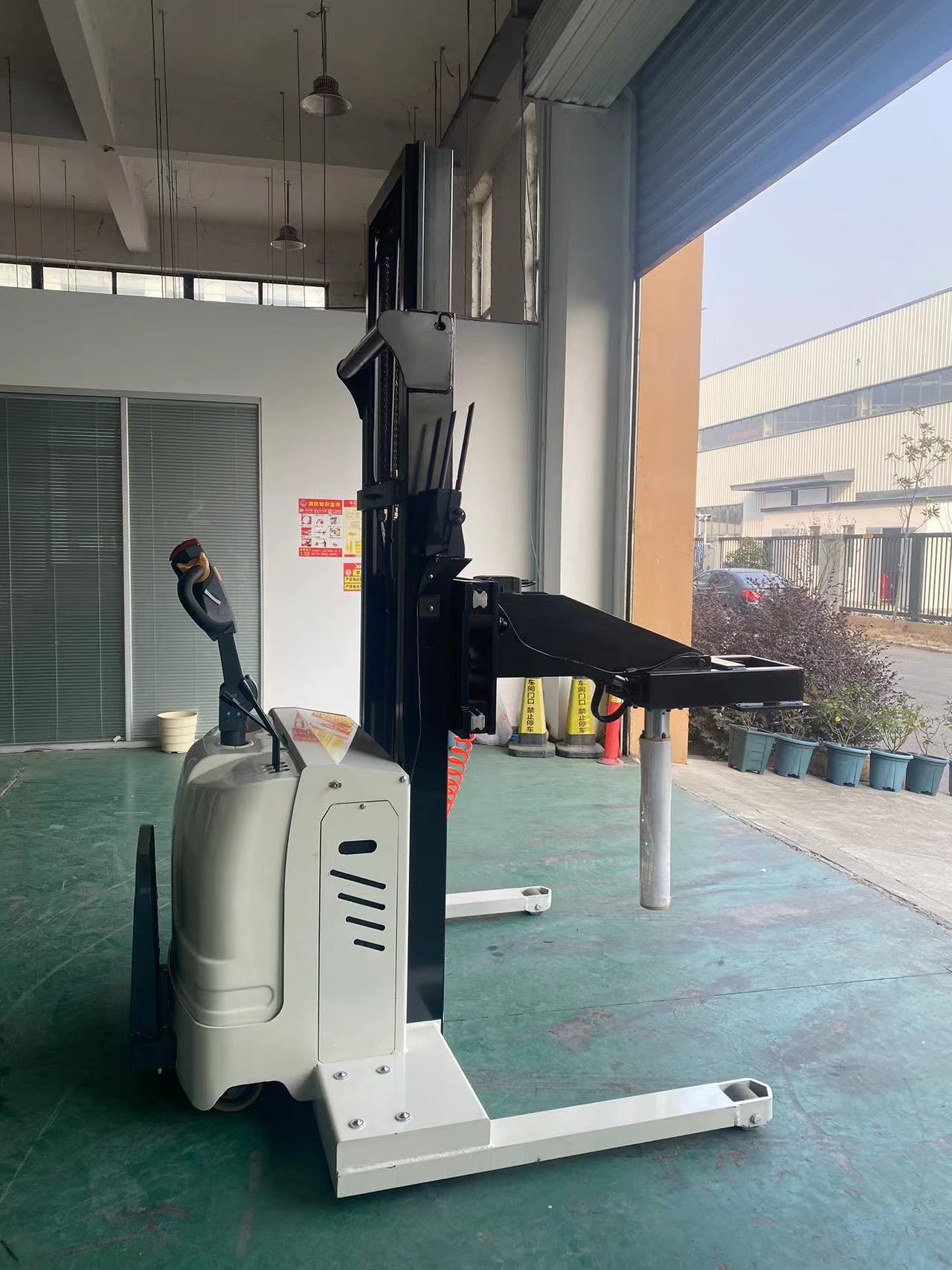

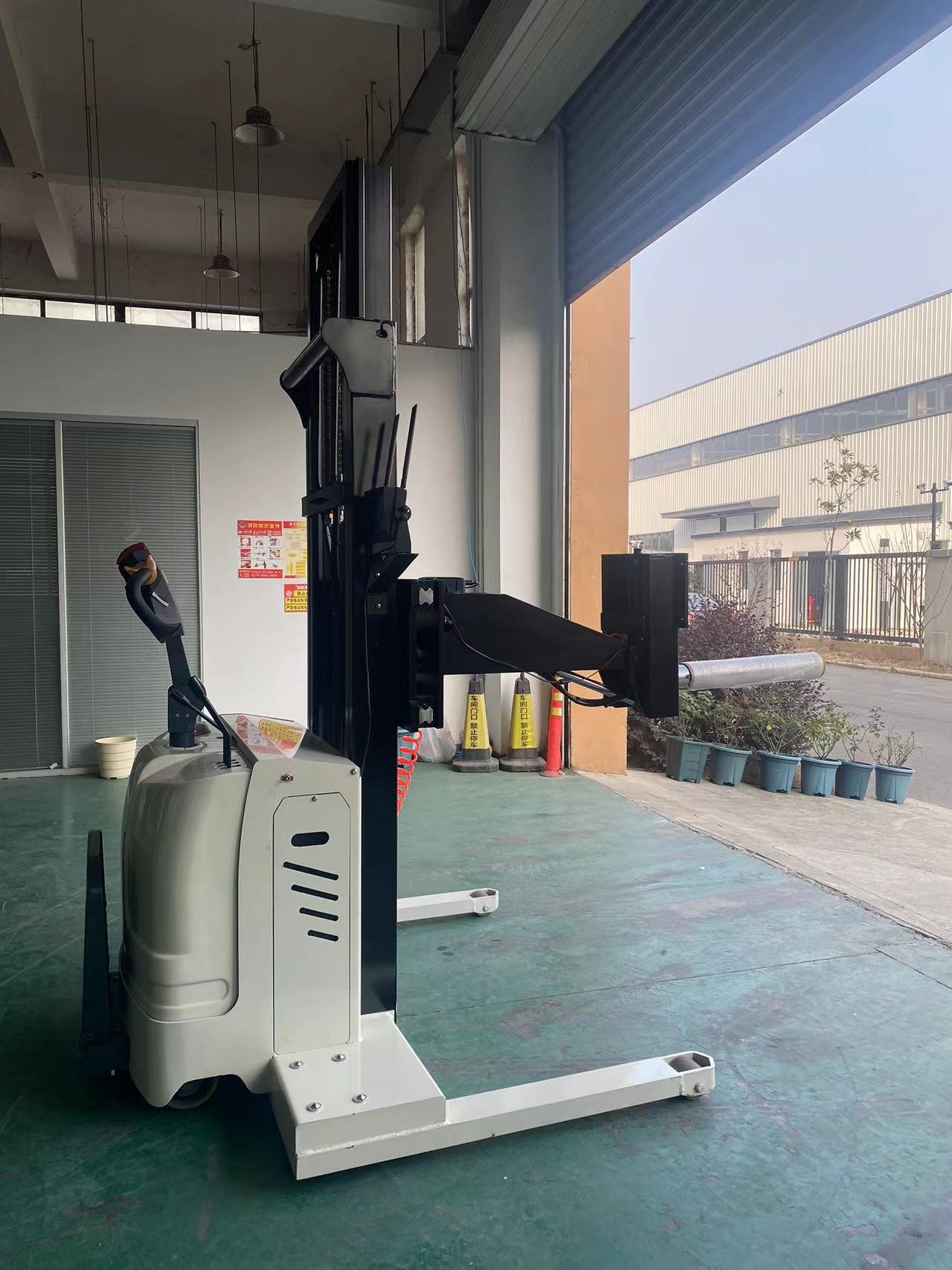

1.All-electric film paper roll up axis rotary loading car for mechanical special design, expansion axis can be set for the built-in battery power electro-hydraulic drive, easy to insert the film paper roll into the center of the shaft hole, fork up the horizontal horizontal or vertical rolls, rotate so that the vertical into horizontal or horizontal put into the vertical.

The use of Paper Plastic Film Roll Lifter process
The paper plastic film roll lifter is a forklift truck accessory specially designed for handling and stacking paper rolls. It can safely and stably fix the paper rolls on the forklift truck to ensure that no accidental damage occurs during the handling process. This article will introduce the use of paper plastic film roll lifter process.
The process of using paper plastic film roll lifter is as follows.
1. Check the integrity of the forklift paper clip: Before using the forklift paper clip, we need to carefully check its appearance is not damaged and whether the parts are normal. In particular, check whether the bayonet is intact to ensure that it can firmly fix the paper roll.
2. Install the forklift paper roll holder on the forklift: Assemble the fork from the paper roll to the forklift, make sure it is firmly fixed on the forklift, and adjust the position of the fork to fit the size of the paper roll.
3. Adjust the fixture width of the paper roll clamp: According to the size of the paper roll, adjust the fixture width of the forklift paper roll clamp. In general, the width of the clamp should be slightly larger than the diameter of the paper roll to ensure that the paper roll can be firmly clamped in the clamp.
4.Put the paper clamp on the forklift truck : Roll the paper roll from one side into the forklift truck paper roll clamp's fixture and adjust the clamping strength of the fixture, so that the paper roll can be firmly clamped in the fixture, to avoid the paper roll from sliding or falling off during the handling process.
5. Lift the paper roll:Open the bayonet of the forklift paper roll clamp, lift the paper roll and move it off the ground. In the process of lifting the paper coupon, make sure that the paper roll can be lifted smoothly to avoid the paper roll being crushed or dropped.
