CE Approved Semi Electric Pneumatic Roll Turner Stacker With Electric Lifting And Rotation

Categories Roll Turner
Brand Name: CUSTOM
Model Number: PRT0516
Certification: CE
Place of Origin: CHINA
MOQ: 1 units
Price: $4600/units
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50units/month
Delivery Time: 7 working days
Packaging Details: iron pallet+plastic film
Load capacity: 500kg
Lifting height: 1600mm
Load centre: 500mm
Tire: PU Wheel
Battery power: 12V/120Ah
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

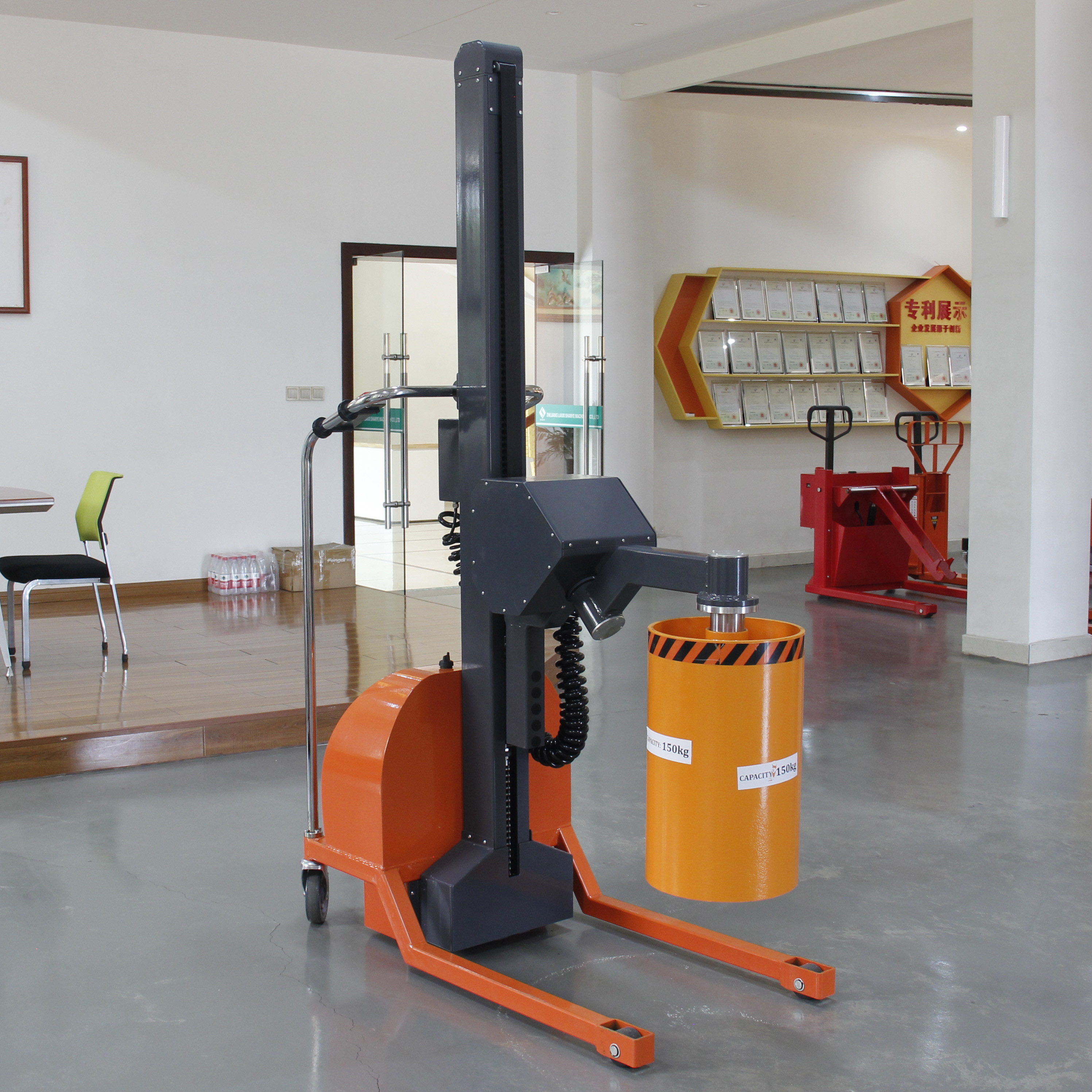

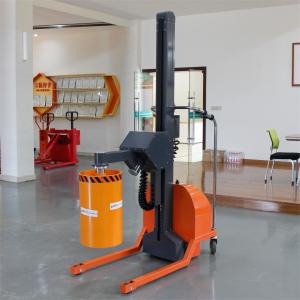

CE Approved Semi Electric Pneumatic Roll Turner Stacker With Electric Lifting And Rotation

CE Approved Semi-Electric Pneumatic Roll Turner Stacker with Electric Lifting and Rotation

Pneumatic Roll Stacker is an industrial equipment specifically designed for material handling and stacking. It adopts pneumatic technology and is driven by compressed air, which can efficiently lift and rotate rolled materials such as paper rolls, fabric rolls, etc. This device combines the automation processing requirements of rolled materials and improves operational efficiency and safety through electric lifting and rotating functions. Inflatable film stacking trucks are widely used in the warehousing and logistics industries, helping enterprises achieve automation and precise stacking of materials, thereby optimizing production processes and improving production efficiency.

Power source
Battery
Rated load
kg
500kg/customized
Load center
mm
500
Operation way
Standing operation,electric lifting,electric gripper,electric rotating,electric moving
Turning radius
mm
1050
Aisle width
mm
1900
Length
mm
760
Width
mm
2100/customized
Mast
mm
1-stage mast
Adjustable extent of turning
mm
200~1250
Max height of forks
mm
1500
Min height of forks
mm
200
Rotation angle
°
90°(left and right)/360 degree
Hoisting speed(load/unload)
mm/s
110/160
Descent speed(load/unload)
mm/s
150/130
Climbing capability
3.5
Braking mode
Wheel brake
Tyres material
Nylon
Load wheel dimensions
mm
85*80,2pcs
Steering wheel dimensions
mm
180*50,2pcs
Hydraulic motor
kw
24v/2.2kw
Battery
v/ah
24/210
Weight
kg
500
Mandreal diameter

3''/6''/customized

Inflatable film stacking truck (also known as airbag stacking truck) is a special stacking equipment that uses airbag technology to achieve lifting and moving functions. It is usually used in situations that require small and flexible stacking operations, such as warehouse and factory cargo handling.
Regarding the market situation of inflatable film stacking trucks, the following points may be helpful for understanding:
Application areas: Mainly used in confined spaces or environments that require precise manipulation, such as narrow passages, special shaped goods, etc. Its demand in specific industries may be significant due to space limitations or the specificity of handling requirements.
Technological development: With the advancement of industrial automation and the increasing demand for efficiency, the technology of stacking equipment is also constantly evolving. As a special form of inflatable film stacking truck, it may be affected by these trends.
Market size: Although the market size of this type of equipment may be relatively small compared to traditional stacking equipment such as forklifts, its market share may increase in specific industries and application scenarios. Especially in fields that require low noise, precise control, or high environmental friendliness.
Competition and Opportunities: Due to the relatively small market, competition in this field may be intense. Enterprises may gain competitive advantages through technological innovation, service quality, and market positioning
.
