300-500 STUDS Welding Range 6-10MM Pin Brazing Machine RSN-301

Product description

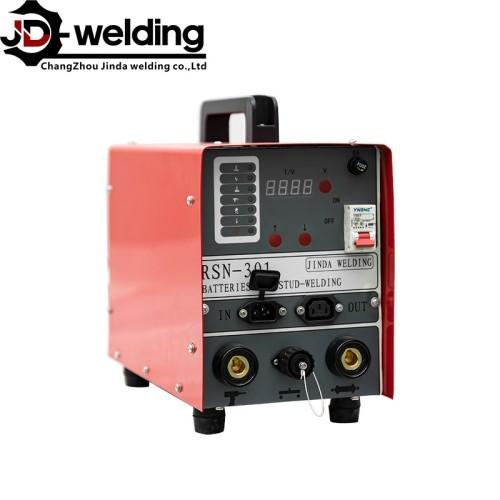

Pin brazing machine,RSN-301

Self-sufficient, no power connection required

Up to 500welds M10 with a single battery charge

11kg light weight(with Battery)

1.0 Intrduction:

The pin brazing machine RSN-301 uses advanced inverter technology, with the current powerful battery energy storage technology, the perfect combination. The new design of the control circuit can be used in the field of field railways, bridges, Oil pipeline power

lines maintenance in without charging. Pin brazing machine easy is to carry, wide range of operations, a full charge can be welded

300-600 times, either at the factory or in the field operations, is your most effective

helpers.

2.0 Product parameters:

Model	RSN-301 pin brazing machine
Input power	30 Kva
Welding Curren	300A
Welding Time	0.1-2.5S
welding range	6-10MM
Battery Capacity	300-500 STUDS
Welding Rate	5-8/min
Protection	Ceramic ferrule
Class Protection	IP23
Dimensions (L x W x H) (mm)	350 x 195 x 260mm
Weight	11kg

We are a manufacturer of stud welding machines, we have a wide range of products, Stud Welding,Weld Studs,Mig Mag CO2,TIG MMA etc. We look forward to your information.

3.0

Chang Zhou Qishuyan Jinda Welding Co.Ltd is established in the year of 1997 , it has more than 20 years professional experience for CD & Drawn Arc Stud Welding . It has mainly produced CD & Arc Stud Welder , stud gun , welding studs , insulation pins , ceramic ferrules , shear connectors , stub pin , Chuck , Shoes and reference Stud Welding Accessories . By importing foreign advance technology , then combined our new research , we have produced series kindly of stud welder which has same functions with US or German Nelson stud welder , KOCO , Taylor stud gun . Meanwhile , we have our special advantages for that . We manufacture many kinds of welding studs , insulation pin , arc studs for different material , no matter SS304 , copper plated or AL . Also with ceramic ferrules , we could make it according to your drawings or samples if you have any special demands for that . That's why we had sell them well both in China and foreign country , including Malaysia , Australia, Singapore, Iran, Indonesia, American and so on . Should there any problems or any inquiry, kindly to email with us so that we could give you professional recommend. Pl check up our website :www.czjd.com for more details .We welcome you to visit us and sincerely hope we could be long term business partner .
