Industrial Brazing Wire Material

Product description

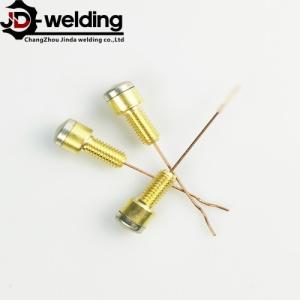

Pin Brazing Consumables

Pin Brazing Consumables inculde ceramic ferrule,cable lugs,and brazing pins.

1.0 Intrduction:

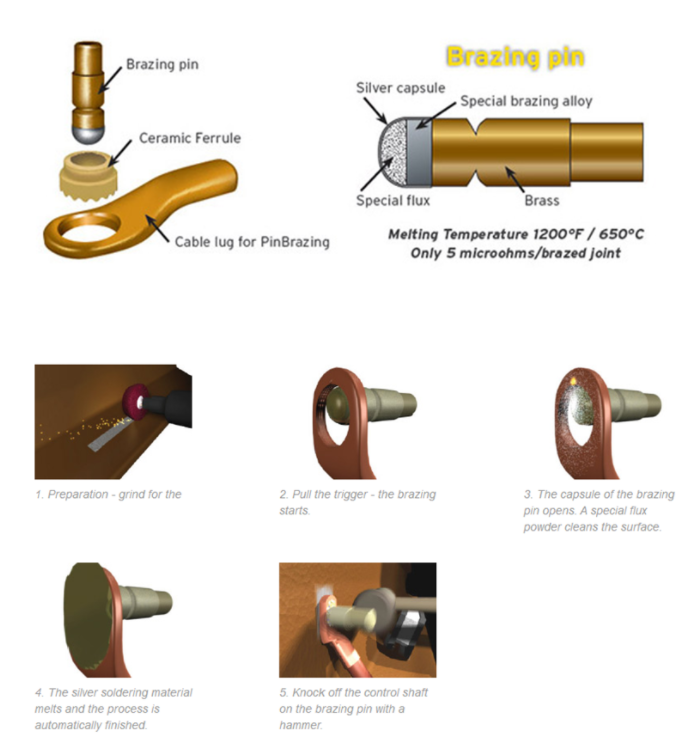

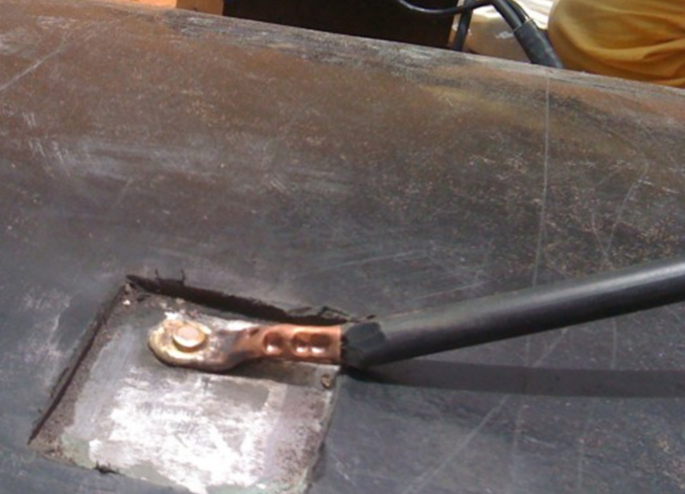

By using RSN-301 pin brazing machine we can easily weld the brazing pin to the electrical cable connection over the joints, such as in the case of application of cathodic protection system to a pipeline with spigot and sleeve joints. It gets brazed at both the spigot and sleeve ends of the pipe and the cable attached. In case of pipes of ductile or cast-iron, one goes for threaded brazing pins application where a prefabricated cable with nuts is fastened. As for steel pipes, pin brazing either in the form of threaded brazing pins with nuts or cable is used. It gets brazed directly onto the pipe by means of a lug.

2.0 Product parameters:

Model	Dimension L,Thread length(mm)	Qty/pack
8mm Standard	Φ8mm	100
8mm Extra	Φ8mm	5
9.5mm	Φ9.5mm	100
M8 Threaded	M8 L=16	50
M10 Threaded	M10 L=24	50
M12 Threaded	M12 L=24	50

We are a manufacturer of stud welding machines, we have a wide range of products, Stud Welding,Weld Studs,Mig Mag CO2,TIG MMA etc. We look forward to your information.
