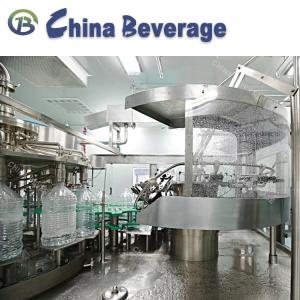

5L Water Bottles Packing Machine Stainless Steel Adjustable Capacity Gravity Filling

5L Bottled Water Filling Machines For Mineral Water

Description:

The water filling machine is composed of separate rinsing, filling and capping units. It is innovated and designed in the requirement of still pure water and mineral water in big jars, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.

Working process:

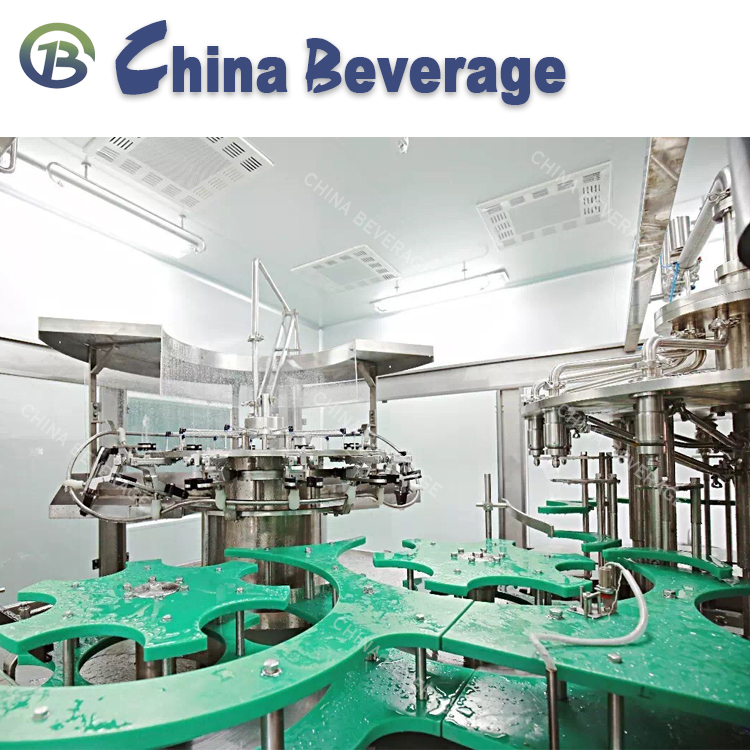

washing:

1. The rotary wheel is a fully SUS304 stainless steel welded structure.

2. The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of SUS304 stainless steel, this bottle clamp is hygienic and durable.

3. The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.

4. All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.

5. The rinser is driven by driving system positioned inside machine frame via gear transmission.

6. Transfer Starwheel

Made of stainless steel of superior quality.

Equipped with bottle jam protection device.

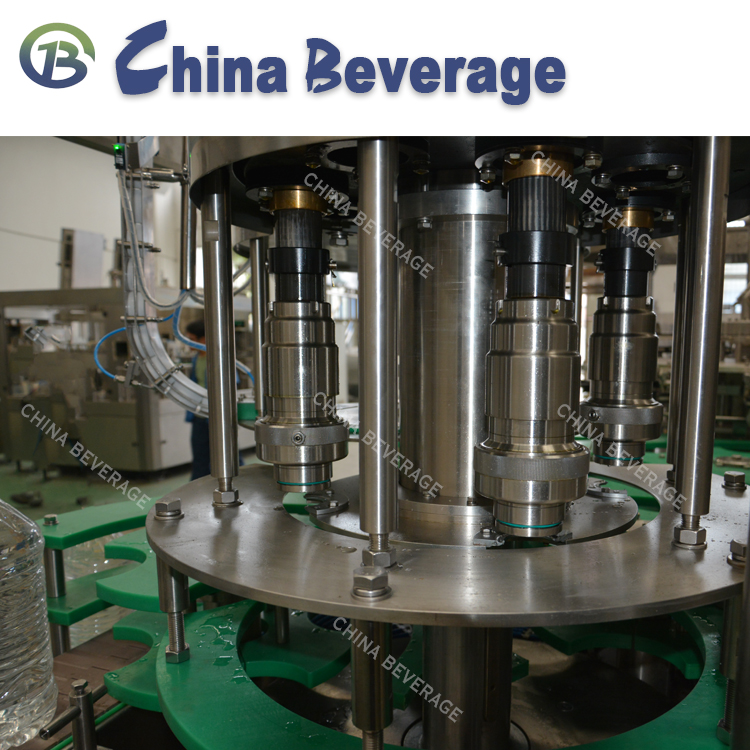

Filling:

The design of filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck, the control accuracy is within ±2mm.
The filling valve material is SUS304.

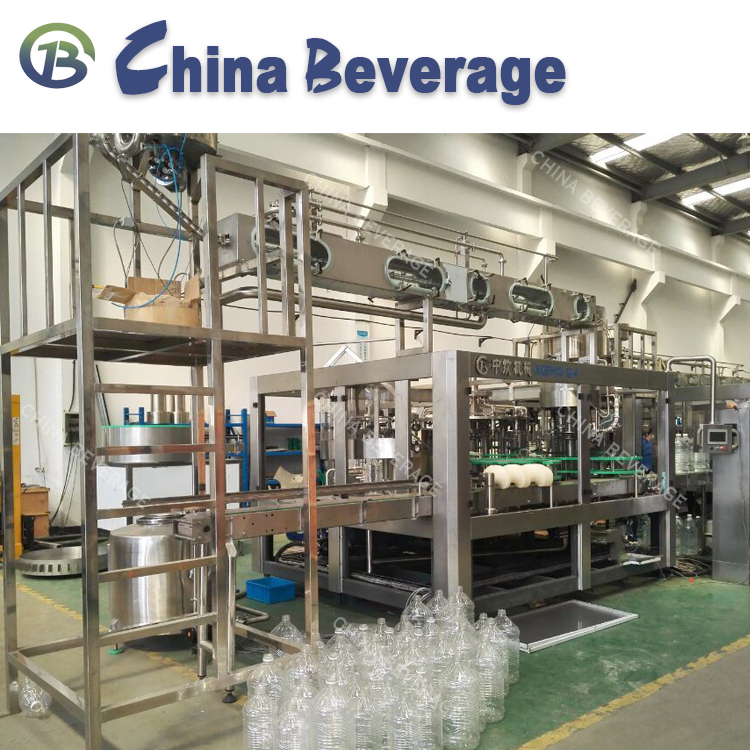

Water filling production line includes

Technical Parameters
- Model: XGF12-12-4
- Type of Bottles: PET Bottles of various shapes
- Filling Temperature: Ambient temperature
- Filling Principle: Gravity Filling
- Filling Product: Mineral water, purified water

Capping Part of Bottled Beverage Filling machine:

• Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
• All 304stainless steel construction
• Automatic stop when lack of bottle

1. Water purifying system
2. Auto PET bottle blowing system
3. Auto 3-in-1 washing-filling-capping monoblock system
4. Auto labeling system
5. Auto PE film wrapping system

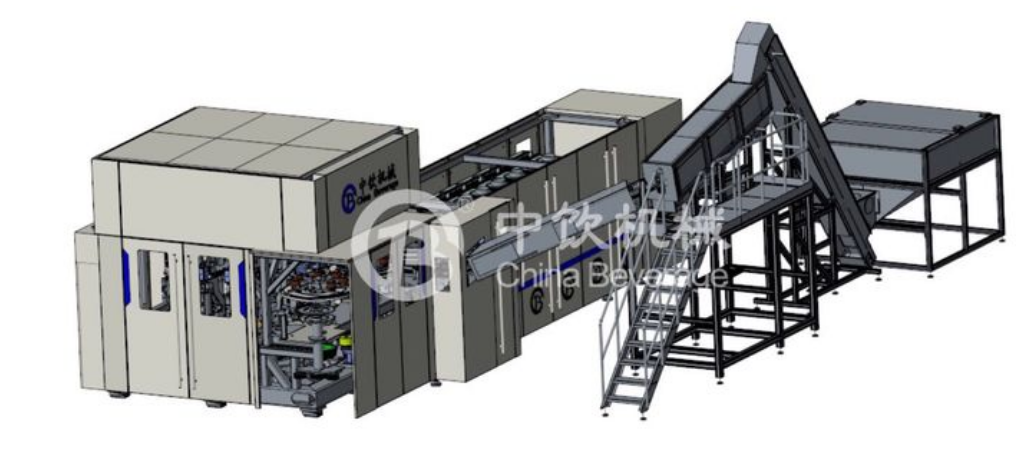

Introduction of Auto PET bottle blowing system

Main Specification

Jiangsu Zhongyin Machinery Co., Ltd. is located in Donglai Town, Zhangjiagang City, Jiangsu Province. It has international standard workshop more than 15000 square meters. It is one of the professional beverage packaging machinery manufacturers with collecting research, development and manufacturing. It is China's best beverage machinery equipment suppliers. As liquid packaging industry enterprise, the drink service network is all over the world more than 30 countries and regions, products are widely used in drinks, flavor, cosmetic, beer, milk, and pharmaceutical industries.

Gathering the domestic famous machinery manufacturing enterprise, which have many years' staff more than 60 from machinery, technology and automatic control these 3 fields. It's the strong team of liquid (drink) packaging machinery industry in China, the existing 2 food engineering doctor, 5 masters, 12 senior engineers, can provide users with: Market positioning analysis, designing, engineer training and a set of turnkey solution project and related services.

Modern factory, all kinds of advanced processing equipment and testing equipment, experienced technicians, scientific and strict management, constitute the drink mechanical excellence in product manufacturing system. It also provides Zhongyin Machinery product's quality in the most powerful guarantee.
