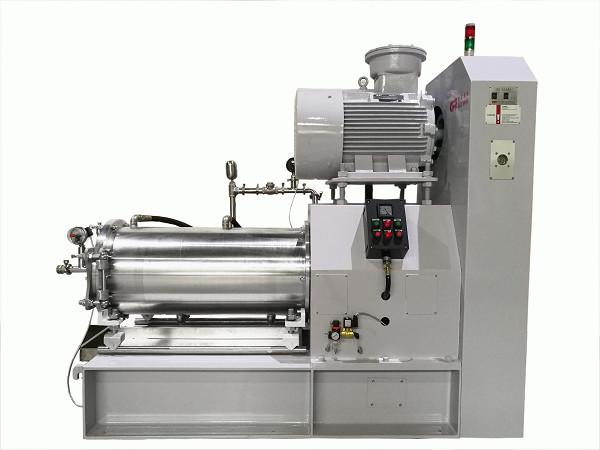

100L Bead Mill Machine With Dyamic Discharging With gear Pump in paper making industry

100L Bead Mill Machine With Dyamic Discharging With Gear Pump In Paper Making Industry

1. 100L Bead Mill Machine Technical Data

No	Main Parameters	HZ PLUS100	Note
1	Motor power (kW)	55 kW	Ex-proof/non ex-proof available
2	Effective volume of grinding chamber (L)	82L	volume can be suggested according to different grinding materials and usages
3	Water pressure (MPa)	0.3
4	Cooling water consumption (L/min)	2.5 -3m3/h	Advision: Users offer the Cooling water less 10°C
5	Dimensions:L*W*H (mm)	2200*1150*1950
6	Weight (kg)	2500

2. 100L Bead Mill Machine Configuration Instructions

No	Main parts	HZ PLUS100	Notes
1	Material of External vessel	SUS 304 stainless steel
2	Material of Inner grinding vessel	9Cr18Mo alloy steel, SUS 304 stainless steel,SIC	different mateials for choice
3	Material of Dispersing shaft	40Cr with hard chromium plating
4	Material of Dispersing disk (agitator disk)	SUS 304 stainless steel, Cr12Mov wearable steel
5	Feeding and discharging end covers on the cylinder	SUS 304 stainless steel
6	Dynamic discharge screen ring	Wire Wound screen ring with 304.Gaps: 0.1-2.5mm.
7	Mechanical seal	Intelligent double mechanical seal with mandatory screwing-cooling system
8	Feeding pump	1.5” gear pump;
9	Industries of Application	coatings, paints, inks, food, food addictive, powder,mining, paper making etc
10	Patent	multi-patents technology applied in these bead mill machine

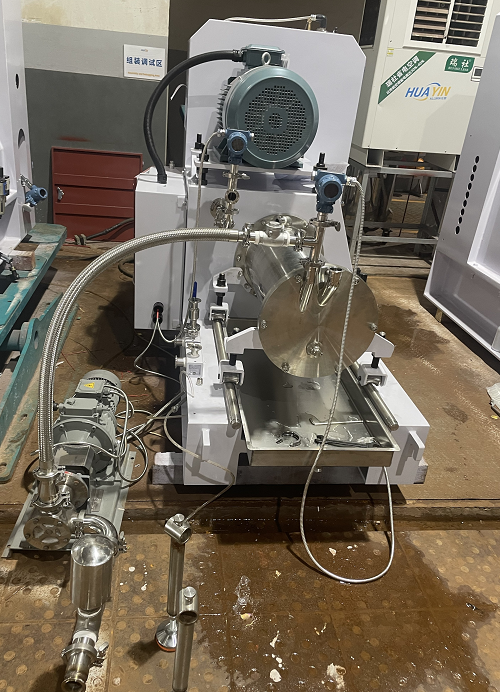

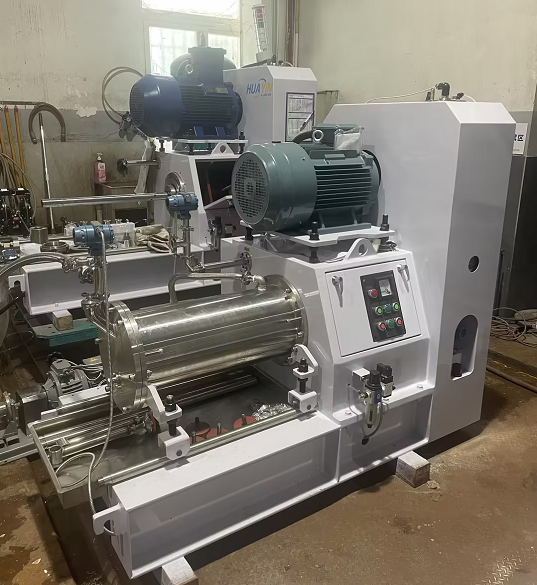

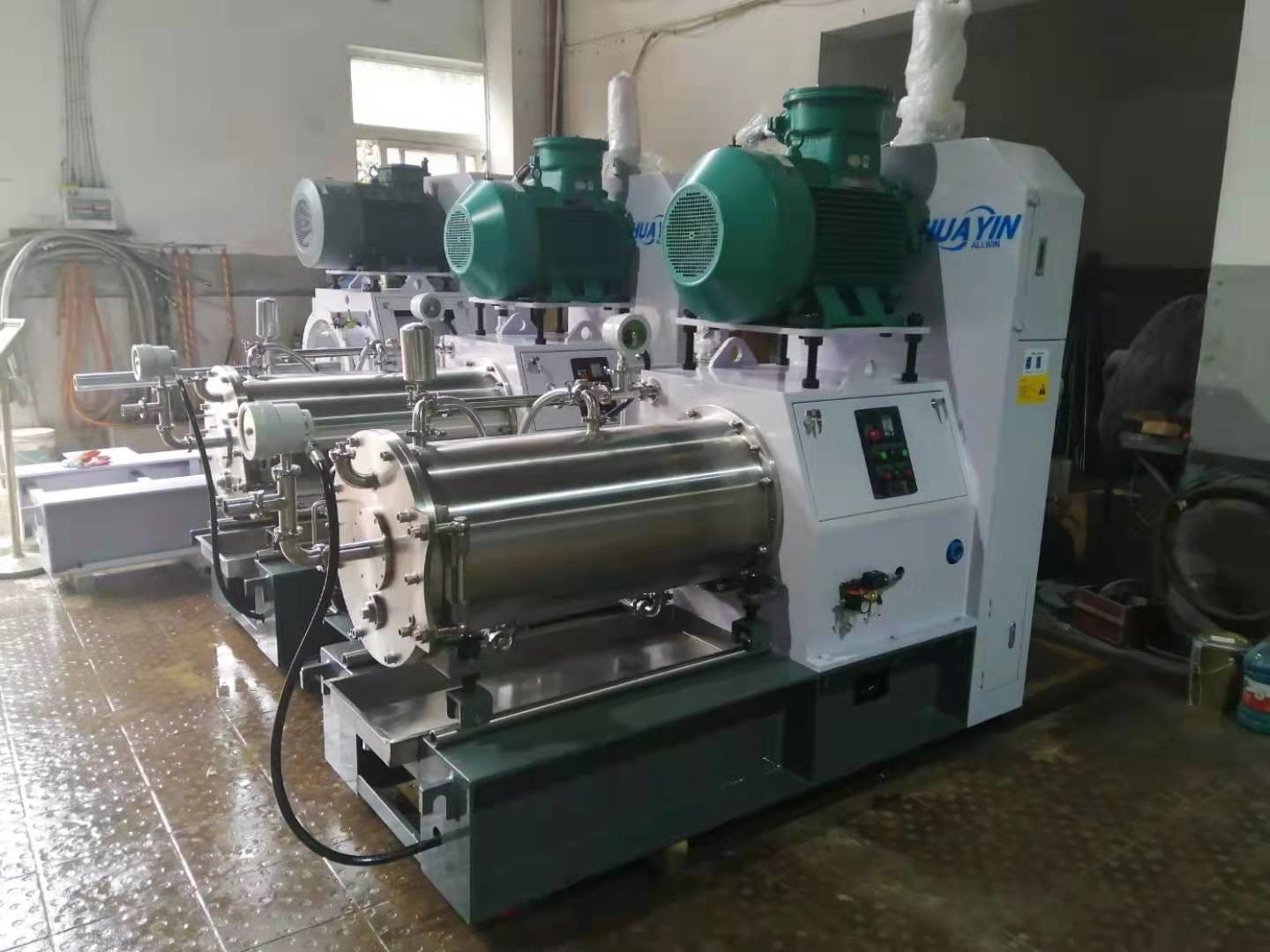

3.Display of Horizontal Sand Mill Machine

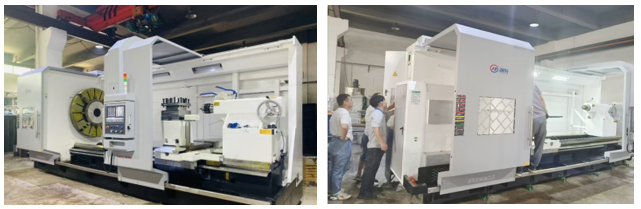

4. Display of manufacturing Equipments

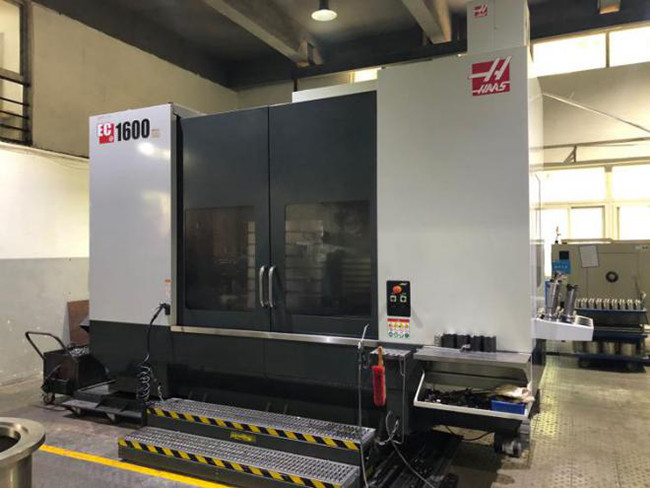

Imported form America, HAAS 1600 Series, valued 2.6 million RMB, used to process key parts to ensure small runout of end face, steady operation.

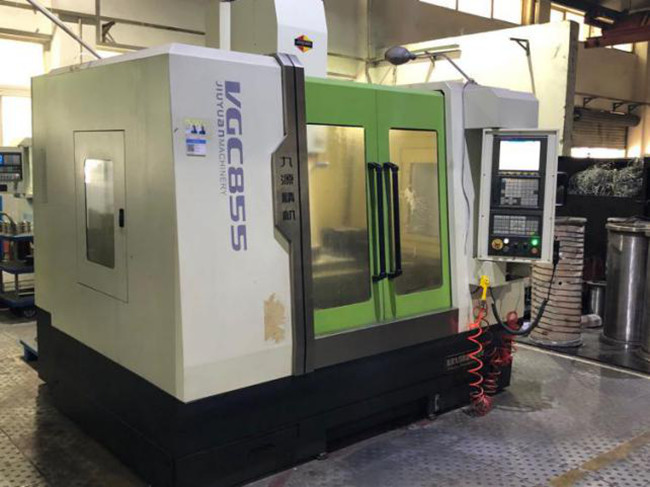

Brand TAIWAN JIUYUAN, precision CNC.

5. Advantages Of Bead Mill Machine

A. Long History in grinding and dispering. Founder of Allwin,Mr. Yongqi Wang, is the fist Chinese designer, and over 27 years innovation in technical, the grinding machine has gained famous brand and great reputation in China.

B. Long terms cooperation with great and famous enterprises. Such as Akzo Nobel, which had purchased over 20 units sinced 2004. Both high quality and great service can help to contribute cooperation.

C. Master key technology of grinding and dispersing, ensured higher efficiency, lower temperature, less person and greater finness than other competitors.

6. Culture of ALLWIN company

❶Company Target: to be a better service-provider and manufacturer in grinding and dispersing.

❷Product Mind: to produce great machines for great enterprises which are facing future, starving to development.

❸Service Aim: to creat values for user-centered customers.

❹Cooperation Principle: to solve the problem with mutual benefits.

Allwin Machine & Equipment Co., Ltd. is a Chinese national high-tech enterprise and specialized manufacturer of wet grinding, dispersing equipment, and production lines. Established in 1993 in Chongqing, China, we have been certified with ISO9001:2015.

With 30 years of industry experience, Allwin is committed to helping providing customers with full-process services from construction planning, product supply, to providing complete production lines, personnel training, and lifelong maintenance services.

Allwin specializes in the research and production of bead mills, mixers, dissolvers, customized production lines, tanks, and zirconia beads, with 30 years of industry experience and proficient in wet grinding core technology. We have sold more than 10,000 devices, serving 180 cities in China and exporting products to multiple countries.

Our customer base mainly covers Battery, Ceramics, Nanomaterials, Coatings, MLCC/LTCC, Pharmaceuticals, Food, Titanium dioxide, Personal Care, Papermaking, Inks, Pesticides, Graphene, Metallic and Non-metallic Minerals and more.

We have a professional R&D team, After-Sales Service team, Process Production department, run a Product Lifecycle Management (PLM) system. Our equipment is excellent, from materials to parts are all produced by CNC. The quality characteristics of our products are stable, reliable, interchangeable well, Precise, low noise, and long life. As a manufacturer, we comply with the ISO9001 standard strictly.

Allwin workshop:

Allwin Service:

1. Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.

2. 12-24H feedback any customers questions, firstly offer the video help you solving, if need arrange maintenance engineer for you.

R & D Team：

1. Allwin has been authorized with more than 11 patents and established cooperation with universities. Allwin has more than 12 engineers for Design and optimizing.
2. Whole production solution: Allwin can offer the Whole production solution for you, from Dispersing to grinding, from accessories to grinding media.

Sales Team:

      Allwin have professional sales team for you, before order we will recommand the suitable mills for your according to your requiriments and materials characteristics.

Quality Team:

       Allwin have professional engineers and a strict QA& QC system, Our factory comply with the IS09001 standard strictly.

Production Team:

•      Advanced machining center and skilled operators.
