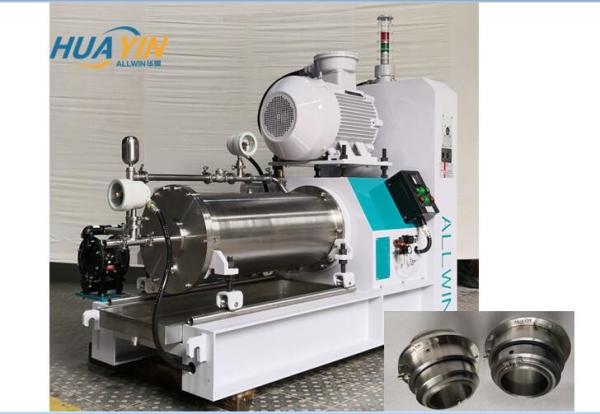

High Capacity 37kW SC Bead Mill Machine 60L Paint Grinding Machine

High Capacity In Paint Pigment Pesticide SC Micron 37kW 60L Bead Mill Machine For Oil Base Ex-Proof

The main introduction of Bead Mill Machine:

1. High independent technology: This Sand grinding mills are main consists of chamber and disc dispersing system. The double end mechanical sealing with independent technology could resistant to more than 1600 kinds of solvents.

2. Urtra fineness: The series have great flow rate and super fine discharging, the finally fineness can be reach 1um for D90 .

3. Better Cooling system:The cooling efficiency is better than normal mills because the sectional double spiral water course is more beneficial to heat exchange.

4. High Efficiency: The grinding efficiency is higher 15-30% than traditional mill machines; the combined disperser can rapidly increase dispersing efficiency.

5. Different materials chosed for inner chamber and dispersing discs: All the materials of contact parts could be chose from wearable steel, stainless steel, PU and ceramics for meeting different requirements.

6. Bigger and Smaller grinding media for different needs: The grinding media is extremely from 0.3-3.0mm are suitable for this series mills. We recommend the 95% zirconium beads. The discharging is great flow with bigger screen rings which can be easily cleaned and removed.

7. Widely application used: This Super series are widely used in coating and paint, pigment, pesticide and agro-chemical industry, Pigment and dyestuffs, Printing inks, Gravure inks, food and food processing,non-metallic minerals.

The Technical Data of Bead Mill Machine:

The Configuration instructions of Bead Mill Machine:

1. Outer chamber materials: 304 stainless steel

2. Inner Chamber materials: 304 stainless steel or you need

3. Dispersing shaft: 40Cr with hard chromium plating

4. Dispersing disk: PU coated 304 stainless steel

5. Feeding and discharging end covers on the cylinder: 304 stainless steel

6.Turbine centrifugal separator and pins: 304 stainless steel and YG6 pins

7. Static discharge screen ring: Wire Wound screen ring with 304.Gaps: 0.5mm.

8. Mechanical seal: Intelligent double mechanical seal with indepent technology

9. Feeding pump: 1.5” ARO diaphragm pump;

10. Appliance configuration: Non Explosion-proof machine, suitable for water base materials, motor 55kW. Non Explosion-proof parts: operation column,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves with NO ex electrical contacts., Control system (button type).

11. Fasteners and connecting parts: Stainless steel clamp-type connecting parts.

This series from 5L to 300L

"SUPER" SP series of Bead Mill
Type	Working Volume (L)	Power (kW)	Grinding Beads (mm)	Throughput (kg/h)
SP5	5	7.5	0.3-3.0	20-200
SP15	15	15	0.3-3.0	50-500
SP30	30	30	0.3-3.0	70-700
SP50	50	37	0.3-3.0	100-1000
SP100	100	55	0.3-3.0	300-3000
SP250	250	75	0.3-3.0	450-4500
SP300	300	90	0.3-3.0	550-5500

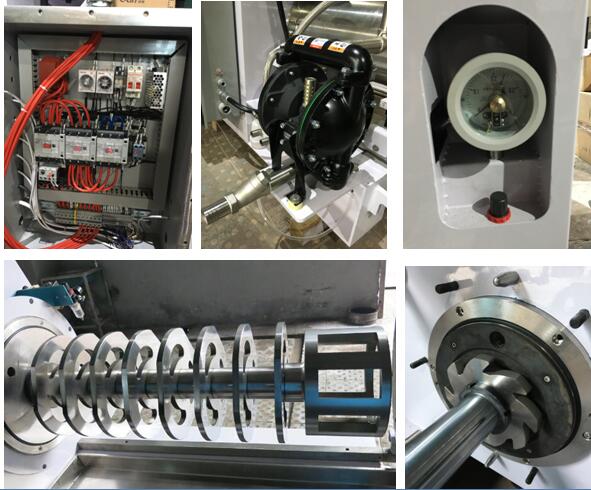

The Detailed Production show :

The company advantages:

Long history and plentiful experiences with 25 year

Master the core technology of dispersing and grinding

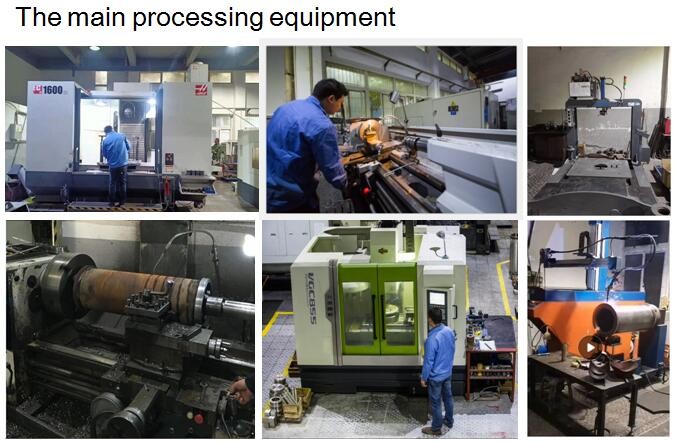

With imported four –axis Haas machining center

Have laboratory for grinding test and detection the fineness.

With ISO9001 certification and more than 11 patents of sand mill

Widely used in industries : Paint and Coating ,Pigment and dyestuffs, Printing inks, Gravure inks, Medicine and Cosmetics, food and food processing, Pesticide and Agrochemical industry, Hi-Tech nanometer products.

The After sales service:

1. Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.

2. 12-24H feedback any customers questions, firstly offer the video help you solving, if need arrange maintenance engineer for you.

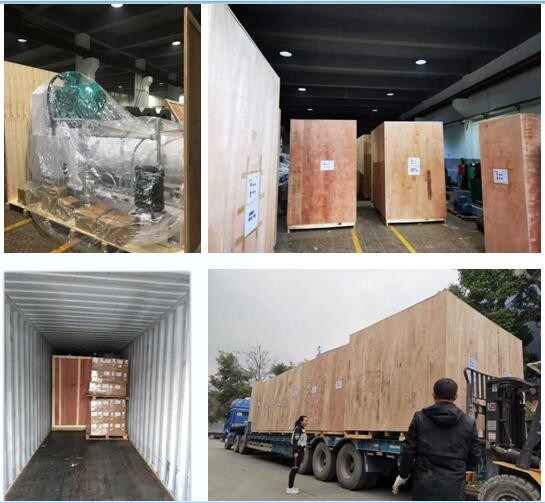

The packing and delivery (firstly anti-abrasion film and packed in wooden boxes)

If need more detailed information and price ,please contact us soon and warmly welcome to visit us!

Allwin Machine & Equipment Co., Ltd. is a Chinese national high-tech enterprise and specialized manufacturer of wet grinding, dispersing equipment, and production lines. Established in 1993 in Chongqing, China, we have been certified with ISO9001:2015.

With 30 years of industry experience, Allwin is committed to helping providing customers with full-process services from construction planning, product supply, to providing complete production lines, personnel training, and lifelong maintenance services.

Allwin specializes in the research and production of bead mills, mixers, dissolvers, customized production lines, tanks, and zirconia beads, with 30 years of industry experience and proficient in wet grinding core technology. We have sold more than 10,000 devices, serving 180 cities in China and exporting products to multiple countries.

Our customer base mainly covers Battery, Ceramics, Nanomaterials, Coatings, MLCC/LTCC, Pharmaceuticals, Food, Titanium dioxide, Personal Care, Papermaking, Inks, Pesticides, Graphene, Metallic and Non-metallic Minerals and more.

We have a professional R&D team, After-Sales Service team, Process Production department, run a Product Lifecycle Management (PLM) system. Our equipment is excellent, from materials to parts are all produced by CNC. The quality characteristics of our products are stable, reliable, interchangeable well, Precise, low noise, and long life. As a manufacturer, we comply with the ISO9001 standard strictly.

Allwin workshop:

Allwin Service:

1. Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.

2. 12-24H feedback any customers questions, firstly offer the video help you solving, if need arrange maintenance engineer for you.

R & D Team：

1. Allwin has been authorized with more than 11 patents and established cooperation with universities. Allwin has more than 12 engineers for Design and optimizing.
2. Whole production solution: Allwin can offer the Whole production solution for you, from Dispersing to grinding, from accessories to grinding media.

Sales Team:

      Allwin have professional sales team for you, before order we will recommand the suitable mills for your according to your requiriments and materials characteristics.

Quality Team:

       Allwin have professional engineers and a strict QA& QC system, Our factory comply with the IS09001 standard strictly.

Production Team:

•      Advanced machining center and skilled operators.
