Categories | Copper Round Rod |
---|---|
Brand Name: | JIANGSU PUCHENG |
Model Number: | H59,62,H65,H68,H70,H80,H85,H90,H96,C2100,C2200,C2300,C2400,C2600,C2680,C2720, C2800,C3560,C3601,C3713,C3771,C3561,C3710 |
Certification: | SGS ISO ROHS |
Place of Origin: | Mainland China |
MOQ: | 100 kgs |
Price: | 5-10 USD PER KG |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 800TONS PER MONTH |
Delivery Time: | 5-10Days after confirming order |
Packaging Details: | Standard Seaworthy Package |
Product name: | Copper Round Rod |
Grade: | C1011,C1020,C1100,C1221,C1201,C1220.etc |
Alloy Or Not: | Alloy |
Cu: | 50% - 99.99% |
Trading term: | CIF CFR FOB EXW |
Payment Term: | 30%TT / LC |
Hardness: | 1/2 Hard |
Port: | Shanghai |

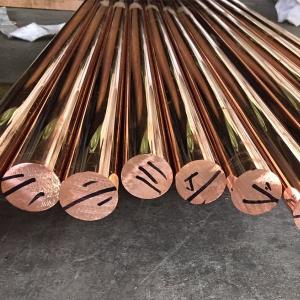

H90 Copper Round Rod 1mm 2mm 3mm Square Copper Bar Cutting As Drawings Copper Sheet
Main features: high strength, good plasticity, good cutting
machinability, easy welding, good corrosion resistance.
Main use: It is used to make pin, rivets, nuts, washers, guided
wave tube, thread clamp plate, the annular and cooling parts, food
industry, shipbuilding industry, paper-making industry with parts,
plug and socket fittings
Product Details
Shape | Condition | Size |

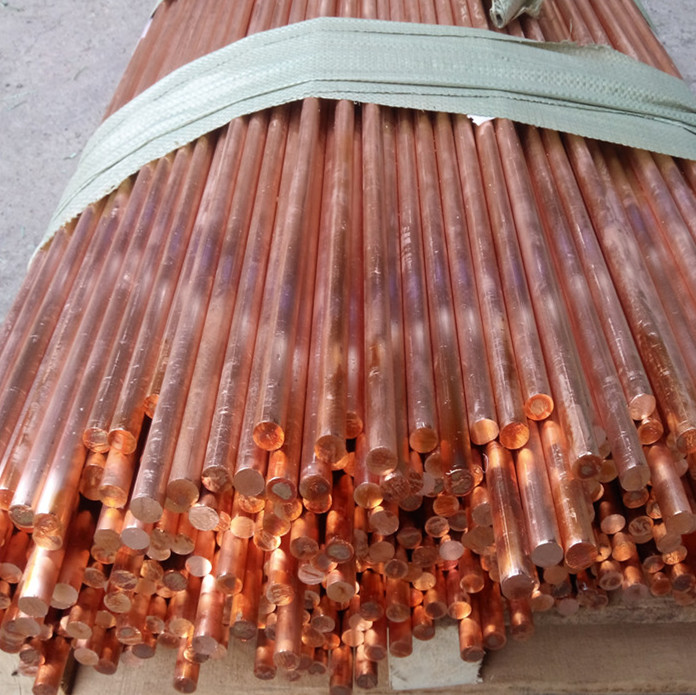

Straight Round Rod/ Wires | hard/half hard | Φ2-15mm |
Straight Round Rod | hard/half hard | Φ3-90mm |

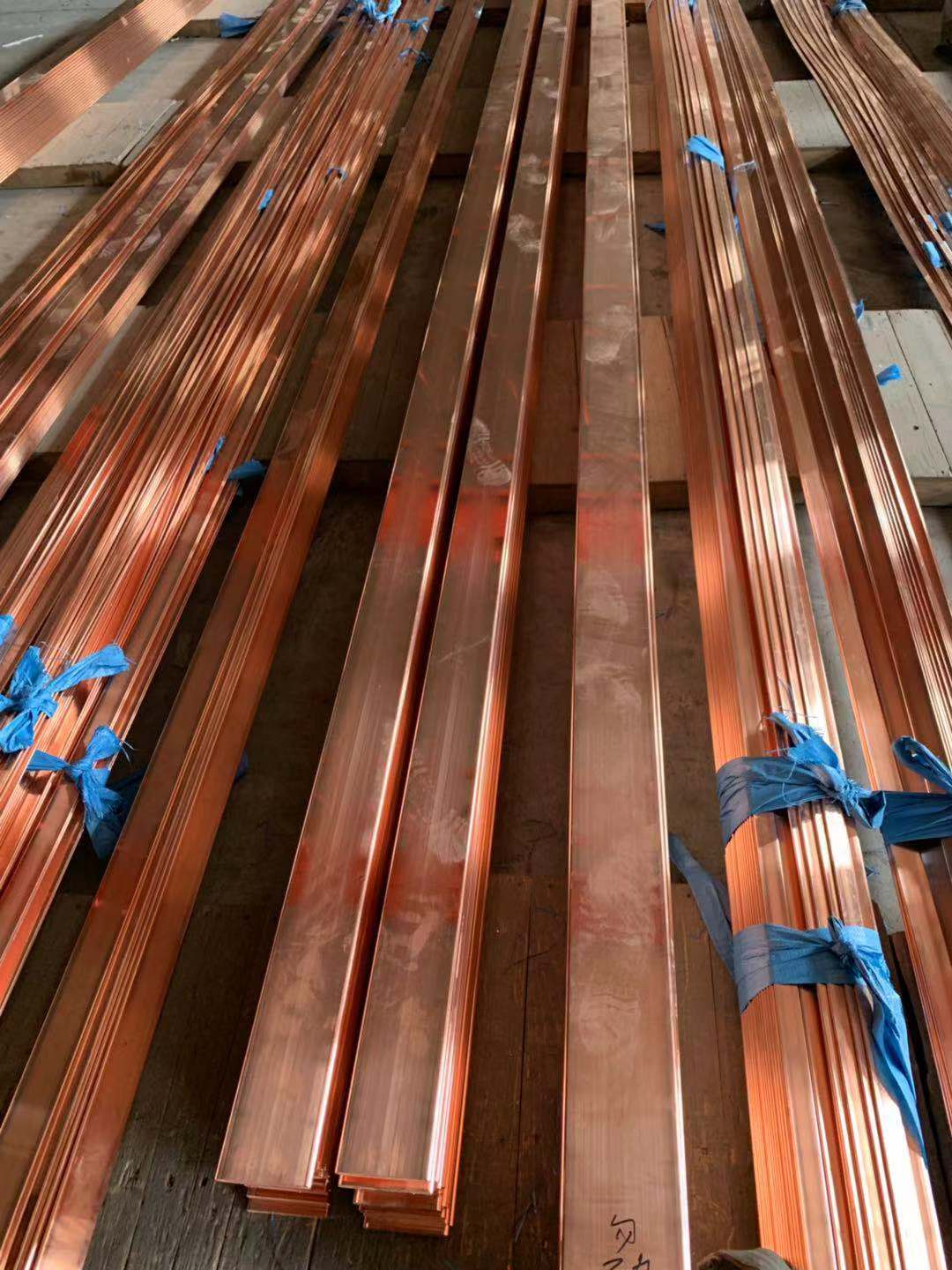

Flat Bars/ Plates/ Sheets | hard/half hard | a2-8*b2-150mm |
GB | ISO | ASTM | JIS |
TU1,TU2 | Cu-OF | C10200 | C1020 |
T2 | Cu-RTP | C11000 | C1100 |
TP1 | Cu-DLP | C12000 | C1201 |
TP2 | Cu-DHP | C12200 | C1220 |
Chemical Composition
GB | Composition(%) | ||||
Cu | P | O | Other | ||
TU1 | 99.97 | 0.002 | less than 0.002 | balance | |
TU2 | 99.95 | 0.002 | less than 0.003 | balance | |
T2 | 99.9 | - | - | balance | |
TP1 | 99.9 | 0.004-0.012 | - | balance | |
TP2 | 99.9 | 0.015-0.040 | - | balance |
ASTM | Composition(%) | ||||
Cu | P | O | Other | ||
C10200 | 99.95 | 0.001-0.005 | - | balance | |
C11000 | 99.9 | - | - | balance | |
C12000 | 99.9 | 0.004-0.012 | - | balance | |
C12200 | 99.9 | 0.015-0.040 | - | balance |
Product Image
Package & Shipping
Packing Details Sea woden boxes Delivery Details : 7-15 days after confirm the order Copper pipe meet the export standard. Plastic film and brown paper can be covered at customers'need. What's more, wooden case or wooden pallet is adopted to protect products from damage during the delivery.
Certification
