| Categories | Thermostatic Radiator Head |
|---|---|
| Brand Name: | TANGER |
| Model Number: | TMS-04 |
| Certification: | ISO9001 |
| Place of Origin: | Wuxi, Jiangsu, China |
| MOQ: | 12,000 pcs |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Supply Ability: | 700,000 pcs/month |
| Delivery Time: | 7-10 working days |
| Packaging Details: | Cartons, pallet |
| Product name: | Radiator valve head temperature liquid sensor |
| Application: | Radiator, HVAC, Floor/ underfloor heating, Boiler system, Piping system |
| Type: | Floor heating thermostats, Floor/ under floor heating system |
| Housing Material: | Iron |
| Standard: | ISO9001 certified |
| Warranty: | 2 years |
Thermostatic Temperature Sensor TMS-04
TMS-04 liquid thermostatic sensors are specially designed for being used in thermostatic radiator valves. It's small in size and lightweight, and easy to install.
Compatible with most Thermostatic Radiator Heads
Technical Specifications
| Model number | TMS-04 |
| Working range | 5°C-30 °C with a load of 50N |
| Extension | 0.22±0.11mm/°C |
| Workload | 40/80N |
| Minimum workload | 40N |
| Maximum workload | 120N |
| Min/max. temperature | -25°C to 55 °C |
| Hysteresis/K | <0.12 |
| Total expansion | 4.84±0.22mm between 6-28 °C with a load of 50N |

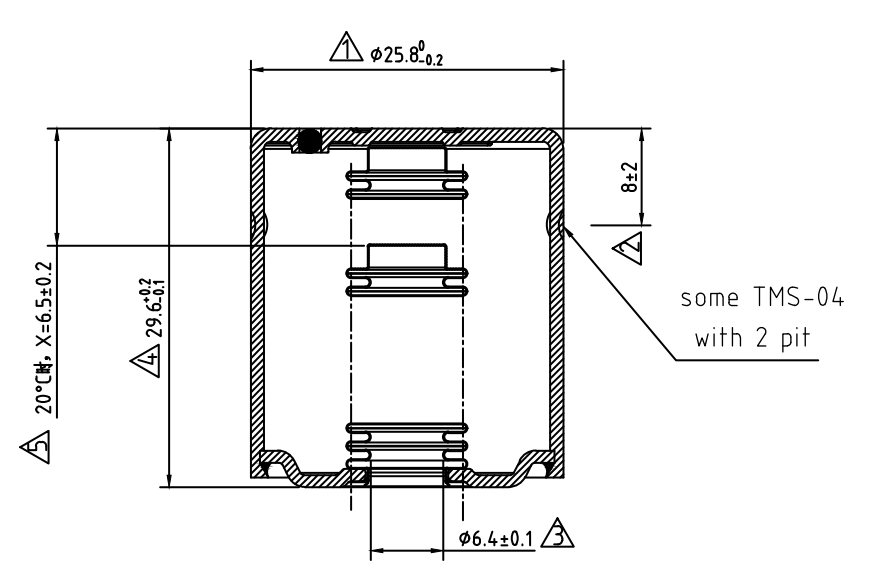

| "X" | X=6.5±0.2mm |
| Total expansion | 2.2±0.11mm between 15-25°C with a load of 50N |

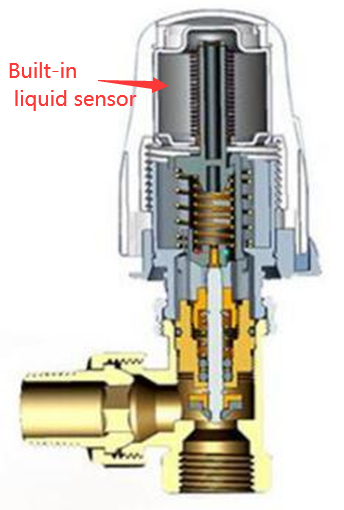

Liquid sensors can not work independently and are usually installed in radiator thermostatic valve heads.
Q1: Are you a manufacturer or a trader? A1: We have been a thermostat manufacturer focusing on thermostats and temperature controls in the HVAC market for over 30 years. |
Q2: How are your product quality and warranty? A2: All our products are 100% tested and conform to CE standards. Samples are available for quality evaluation. One year warranty, but we will continue to provide you technical service after the warranty period. |
Q3: Can you make a new design for us? Or can you make thermostats according to the samples we give? A3: We provide OEM and ODM services. We have our own industrial and packaging designer and professional mechanical and electrical engineers to help customers to develop new products. |
Q4: How long can I get the sample? A4: Samples are usually ready in 5-20 days based on different types. |
Q5: What are the nearest ports of shipment? A5: We usually export goods from Shanghai or Ningbo port. If there are exceptional cases, we will discuss them. |
|
