| Categories | Thermostatic Radiator Head |
|---|---|
| Brand Name: | TANGER |
| Model Number: | TF-36 |
| Place of Origin: | Wuxi, Jiangsu, China |
| MOQ: | 1,000 pcs |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Supply Ability: | 150,000 pcs/month |
| Delivery Time: | 50-60 days |
| Certification: | ISO9001 |
| Packaging Details: | Cartons, pallet |
| Product Name: | Thermostatic valve head with spiral immersion sensor TF-36 |
| Type: | Floor heating thermostats, Floor/ under floor heating system |
| Application: | Radiator, HVAC, Floor/ underfloor heating, Boiler system, Piping system |
| Valve Type: | Straight thermostatic valve |
| Housing Material: | Plastic |
| Color: | White or customized |
| Standard: | ISO9001 certified |
| Warranty: | 2 Years |
Product Description

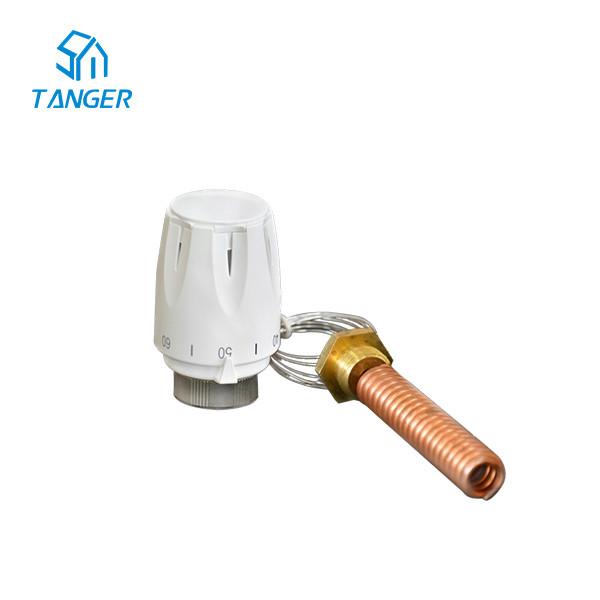

Remote Temperature Controller TRV Head With Spiral Immersion Sensor
TF-36 has a thin capillary tube running away from it to a position away
from the Radiator with a temperature sensing bulb at the end, which
is usually clipped into a small plastic bracket/box with a lid and
then clipped onto the front with small gaps allowing for air
temperature sensing.
These sensing bulbs can fail after a while or get damaged, as can
the capillary tube making the TRV completely ineffective.
As the Radiator is boxed in, a typical TRV / TRV head would be no
good. So You will need to find a compatible TRV with a remote
sensor - fit the Head and run the sensor tube, etc., to a suitable
position away from the Radiator.
Ideally, renew the Remote Sensing TRV, including the Valve, plus
run the sensor tube, etc., as you know that it has been fitted for
a long time, and the pin will almost certainly not be as accessible
as it once was.
Features
Materials
Technical Specifications
| Model | TF-36 |
| Temperature range | 20~70 ℃ |
| Maximum static pressure | 1.0 MPa |
| Maximum differential pressure | 0.1 MPa |
| Maximum temperature resistance | 80 ℃ |
| Installation size | M30x1.5 |
| Brass nut size | G1/2" |
| Hysteresis | 0.4 K |
| Thermal bulb | Φ15.3x95mm |
| Capillary length | 1000mm |
Installation and Precautions
Below is the picture of the packaging of the thermostatic valve head with a spiral immersion sensor.
FAQ
| Q1: Are you a manufacturer or a trader? A1: We have been a thermostat manufacturer focused on thermostats and temperature controls in the HVAC market for over 30 years. |
| Q2: How are your product quality and warranty? A2: All our products are 100% tested and conform to CE standards. Samples are available for quality evaluation. One year warranty, but we will continue to provide you technical service after the warranty period. |
| Q3: Can you make a new design for us? Or can you make thermostats
according to the samples we give? A3: We provide OEM and ODM services. We have our own industrial and packaging designer and professional mechanical and electrical engineers to help customers to develop new products. |
| Q4: How long can I get the sample? A4: Samples are usually ready in 5-20 days based on different types. |
| Q5: What are the nearest ports of shipment? A5: We usually export goods from Shanghai or Ningbo port. If there are exceptional cases, we will discuss them. |
|
