Brand Name: | Li Zhun |
Model Number: | B5 50HZ -4P |
Certification: | SGS |
Place of Origin: | China |
MOQ: | 10 |
Payment Terms: | T/T |
Supply Ability: | No Limited |
Delivery Time: | 5 - 8 work days |
Packaging Details: | Wooden Box |
Performance level: | High |
Material: | Aluminum Alloy |
Condition: | New |
Warranty: | 1 Year |

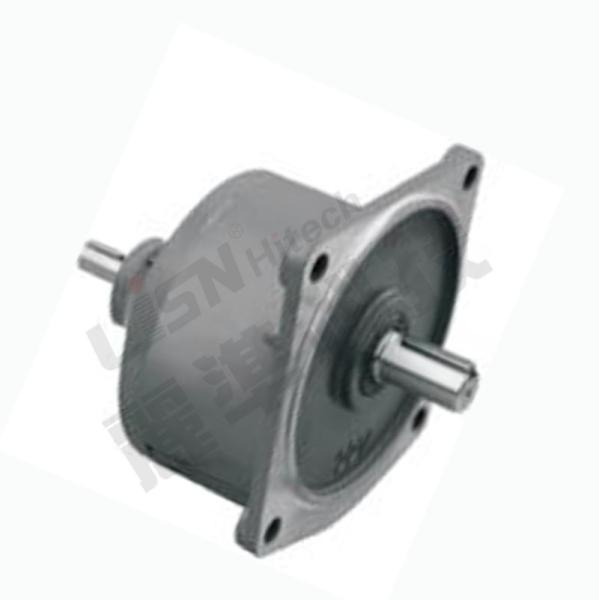

1. The reducer is manufactured according to international technical
requirements, with high scientific and technological content.
2. Space saving, reliable and durable, high overload capacity, and
power up to 95KW.

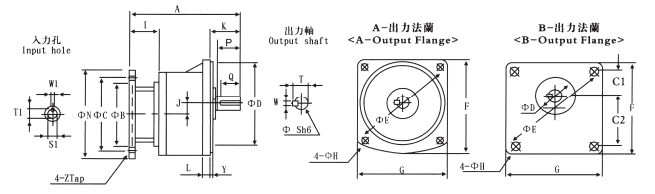

KW | Gear Ratio | TYPE | A | D | E | F | G | H | J | K | L | Y | kg |
100W 1/8HP | 3 - 50 | *18 | 168 | 50 | 140 | 120 | 120 | 9 | 16 | 38 | 12 | 5 | 3 |
60 -200 | 22 | 200 | 148 | 185 | 170 | 156 | 11 | 18.2 | 49 | 12 | 3.5 | 4 | |
60 -200 | *22 | 200 | 55 | 170 | 146 | 146 | 11 | 18.2 | 49 | 12 | 3.5 | 4 | |
200W 1/4HP | 3 - 10 | *18 | 168 | 50 | 140 | 120 | 120 | 9 | 16 | 38 | 12 | 5 | 3 |
15 -90 | 22 | 200 | 148 | 185 | 170 | 156 | 11 | 18.2 | 49 | 12 | 3.5 | 5 | |
15 -90 | *22 | 200 | 55 | 170 | 146 | 146 | 11 | 18.2 | 49 | 12 | 3.5 | 4 | |
100 -200 | 28 | 258 | 170 | 220 | 195 | 180 | 11 | 20.8 | 57 | 15 | 4 | 7 | |
400W 1/2HP | 3 - 10 | 22 | 207 | 148 | 185 | 170 | 156 | 11 | 18.2 | 49 | 12 | 3.5 | 6 |
3 - 10 | *22 | 200 | 55 | 170 | 146 | 146 | 11 | 18.2 | 49 | 12 | 3.5 | 4 | |
15 -90 | 28 | 263 | 170 | 220 | 195 | 180 | 11 | 20.8 | 57 | 15 | 4 | 7 | |
100 -200 | 32 | 300 | 185 | 255 | 240 | 225 | 13 | 30.2 | 67 | 17 | 4 | 19 | |
750W 1HP | 3 -25 | 28 | 268 | 170 | 220 | 195 | 180 | 11 | 20.8 | 57 | 15 | 4 | 7 |
30 - 120 | 32 | 310 | 185 | 255 | 240 | 225 | 13 | 30.2 | 67 | 17 | 4 | 21 | |
125 -200 | 40 | 336 | 230 | 310 | 300 | 275 | 15 | 20.8 | 79 | 20 | 5 | 35 | |
1500W 2HP | 3 -25 | 32 | 320 | 185 | 255 | 240 | 225 | 13 | 30.2 | 67 | 17 | 4 | 21 |
30 - 120 | 40 | 350 | 230 | 310 | 300 | 275 | 15 | 42.2 | 79 | 20 | 5 | 35 | |
2200W 3HP | 3 -60 | 40 | 360 | 230 | 310 | 300 | 275 | 15 | 30.2 | 79 | 20 | 5 | 35 |
70 - 120 | 50 | 400 | 280 | 390 | 360 | 330 | 19 | 51.7 | 90 | 20 | 5 | 43 | |
3700W 5HP | 3 -25 | 40 | 360 | 230 | 310 | 300 | 275 | 15 | 42.2 | 79 | 20 | 5 | 35 |
30 -80 | 50 | 400 | 280 | 390 | 360 | 330 | 19 | 51.7 | 90 | 20 | 5 | 43 |
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM
2. Are you a manufactuer or trading company?
A:We are the manufacturer
3. Can you do the design for us?
A: yes. if you want a different control system design or higher
column , we are available.
4 . What is your terms of delivery?
A: FOB shenzhen.
5. What's your payment term?
A: T/T OR L/C at sight.
![]() |
