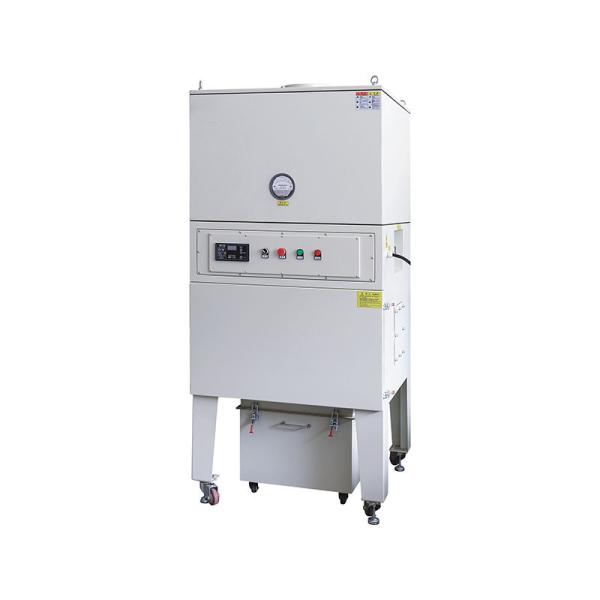

Mediu And High Pressure Industrial Dust Collector CNC Machining Parts

Product features

The volume is moderate, easy to place and install next to the machine, easy to move, does not take up too much space;
► The machine design is simple and pragmatic, easy to clean, replace filter materials and maintenance:
► The filler material is made of imported materials from Japan, which can effectively extend the service life and increase the filtration accuracy.
► Medium-pressure medium-high temperature can simultaneousty achieve adsorption and collection of floating dust, large particles and debris;
► The differential pressure gauge can monitor the condition of the machine filtration operation in real time.

Product parameters

Product Details

Working principle diagram

► Filtration: Under the action of the fan. the dust generated by the fan enters the dust collector through the dust suction port, and after hitting the spoiler in the middle of the air inlet, it acts as a turbulent flow to the incoming gas, making the airflow speed slower; Gravity sedimentation causes the coarse particles of dust in the gas to directly fall into the ash bucket to play the role of pre-dust removal; after the dust partides with fine particle size and small density enter the dust filter chamber, the dust is adsorbed in the filter through the combined effect of diffusion and sieve filtration. The outer surface of the material. The cleaned dean gas passes through the filter cartridge into the upper clean air chamber, and is exhausted by the exhaust pipe through the fan to the exhaust port to be discharged outside the machine.
► Clean dust: As the filtration conditions continue, the dust accumulated on the outer surface of the filter cartridge will increase more and more, which will increase the running resistance of the equipment (increased wind resistance). When the resistance reaches a certain level, the dust collector Start dusting: When the pulse valve is opened, the compressed air in the cylinder ejects a high-speed, high-pressure ejector airflow through the pulse vatve. causing instantaneous positive pressure in the filter cartndge and causing expansion and micto-motion: and forming a wave from the nozzle It is quickly transferred to the bottom of the cylinder, so that the dust deposrted on the filter material falls off and dust is removed. When the dust is completed, the dust collectof will be preset according to the control system, and the dust movement of the next set of filter cartridges will be entered, and the cycle will be repeated and repeated.

Taiwan Lizhun is a company which integrating research, development, production, sales and service, and also specializing in the production of CNC machining center machines and surrounding machine tools and other equipments.

The factory of Lizhun is also located in Dongguan City, which is known as the "factory of the world", covering an area of more than 20,000 square meters.

After unremitting research and innovation, Lizhun company now has an efficient and professional R & D, production and service team.
Relying on strong technical support, professional testing equipments and testing methods, the perfect organizational structure and industry leading service concept, LiSN brand have been trusted by many well-known brands, products include CNC Horizontal machining center, CNC Vertical Machining Center, Double Column Machining Center, Horizontal Boring And Milling Machine, CNC Machine Tools, Drilling And Tapping Machining Center and other products.

The company's products cover mold industry, new energy industry, 5G industry, construction machinery industry, power equipment industry, aerospace industry, military engineering, etc.
Lizhun will continue to uphold the "integrity. Innovation, progress, excellence "spirit of enterprise, to provide high quality machine tools and equipment and a full range of solutions for domestic and foreign customers.
