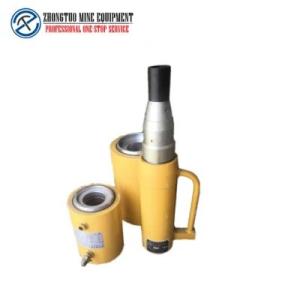

Single Hole Hydraulic Mono Jack Bridge Erecting Machine For Concrete Pulling

Hydraulic Single Hole Mono Jack for Concrete Pulling

Description of Post Tension Mono Strand Stressing Jack

Tensioning jacks are special jacks used for tensioning steel strands and other prestressed tendons. The tensioning jack needs to be used in conjunction with the tensioning oil pump, and the power for tensioning and returning to the top is provided by the high-pressure oil of the tensioning oil pump.

Mono Jack Technical Parameter

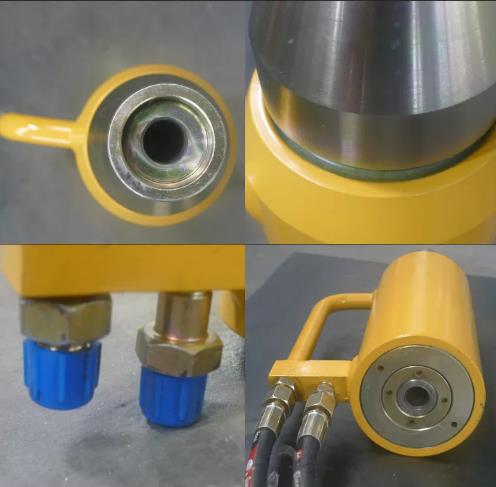

Components of Mono Jack

Post-Tensioning Hydraulic Jack Structure features

1. Mono strand jack is mainly used for single-hole tensioning. It can also be used for porous preloading, tensioning, and troubleshooting, and can be applied to high-strength steel wire bundles and steel strands of various sizes.
2. Installation and construction are very convenient: no need to rotate the arbitrarily installed working anchor; no need to rotate the radial direction of the; it is easier and faster to install the tool anchor plate and tool clamp piece than the original post-card type.
3. The limit plate, tool anchor and tension jack are separated and independent.
4. Better stability: the conventional post-card tensioning jack for a 3-point piston guide, this series of tensioning jacks for a 4-point piston guide; overcome the 3-point guide eccentric tensioning force often produces the phenomenon of pulling the cylinder scrap jack.
5. It overcomes the shortcomings of cumbersome and inconvenient installation of the overall front card tensioning jack at home and abroad.

Related Accessories

Construction of Post Tension Mono Strand Stressing Jack

Operation points of Post Tensioning Hydraulic Jack

1. Tubing must be cleaned before connecting, especially the nozzle part.

2. Before using the jack, it should be run 3-5 times without load to eliminate the air in the inner cavity.

3. During the working process of the jack, the loading should be smooth and the unloading should be slow to avoid sliding wire.

4. After the work is finished, the piston return journey is in place. Wipe frequently and keep clean.

5. If single hole mono Jack was broken, a certain professional knowledge of the people to repair, or back to the factory maintenance.

6. When idle parking or storage parking, the nozzle should be added with the dustproof cap to prevent entering dirt and rust.

Entire Service
We would provide customers with a one-year warranty, during processing, if customers have any problems with installation and use, we have professionals to provide online text, voice, or video communication services for them.
