Multi Purpose Bridge Erecting Machine Hydraulic Prestressed Jacks For Tensioning

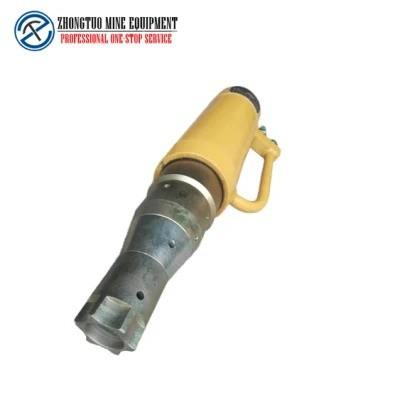

Description of Post Tension Mono Strand Stressing Jack

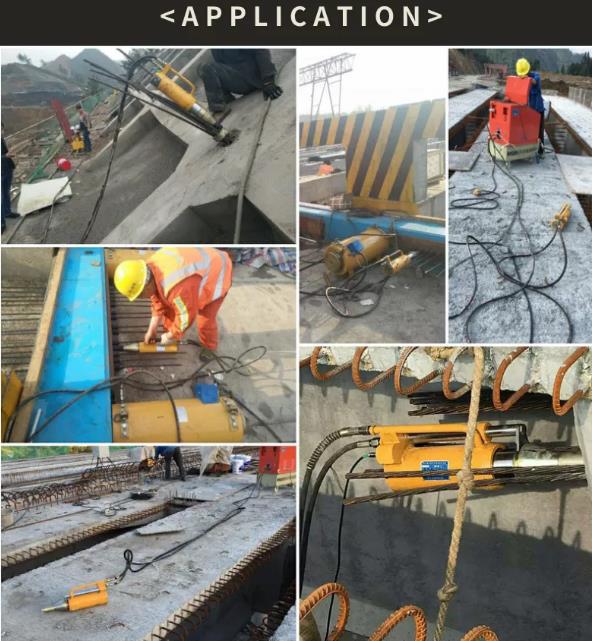

The front cassette jack is a multi-purpose prestressed tensioning equipment, which is easy to operate. Mainly used for single-hole tensioning. It can also be used for porous preloading, tensioning, and troubleshooting, and can be applied to high-strength steel wire bundles and steel strands of various sizes.

Technical Parameter of Mono Jack

Components of Mono Jack

Post-Tensioning Hydraulic Jack Structure feature

1. Both the tension cylinder and the return cylinder are double-sealed, which improves the sealing reliability. The small cylinder and the second cylinder, the small cylinder and the rear end cover, and the small cylinder and the tool ring are all connected by keys to prevent rotation. All are sealed with a Gree ring or Sterling ring, and the sealing is reliable.

2. The second cylinder and the piston head are designed as a whole, which avoids the possibility of failure due to the welding of the two bodies or the threaded connection of the two bodies. It increases the difficulty of the processing technology but improves the reliability.

3. The improved design of the wear-resistant ring and the wear-resistant sleeve avoids the possibility of the assembly type being forced out and improves the reliability of the product.

4. All the important parts under stress are made of high-quality alloy structures or tool steel to improve hardness and strength.

Hydraulic Prestressed Jack Safety Precautions

1. It is strictly forbidden to dismantle the jack under pressure
2. When the jack is tested or loaded, the staff should stand on both sides, and it is forbidden to stand in the direction of the end face, and protective devices should be installed in the dangerous area
In any job, safety is the first priority, especially if the jack is suitable for high pressure and large tonnage, and more attention should be paid to safety.
3. Avoid the misoperation of jack parts flying out and hurting people.
4. Always pay attention to the oil gauge value. When returning, if the pressure of the oil gauge rises rapidly, stop the pump immediately.

Shaanxi Zhongtuo Mining Equipment Company has been a manufacturer and global supplier specializing in high-quality bridge stretching equipment, downhole drill series, steel processing machinery, rock splitting equipment, grouting equipment, and pavement processing equipment for 20 years.

Our Products include prestressed hydraulic mono jacks, multi-strands stressing jacks, synchronized interlocal lifting Jacks, diamond wire saw cutting machines post tension slab prestressed anchors, bridge stainless steel strands, mining polyester geogrid, Yb series high-pressure Ceramic cylinder mud pumps, BW-series mud pumps, handheld piston rock splitter, diesel excavator ultra rock splitter, round concrete pile breaking machines, DTH drilling rigs, well-drilling rigs, mounted drilling rigs, agricultural soil sampling backpack drilling rigs, crawler drilling rigs, hand-held concrete floor scrabbler, floor grinder, riding gasoline trowel machines, road cutter machines, dry mix shotcrete machine, pneumatic injection pump, polyurethane spraying machines, mortar spraying machine, and so on.

We have begun to focus on the development of international markets. With the continuous improvement of
high-quality products and high-quality services, our products are highly appreciated by customers in the international market. Due to the excellent performance of the products and professional after-sales service, our products have been sold to Romania, Bulgaria, Albania, Colombia, Brazil, Peru, Uruguay, Saudi Arabia, Kuwait, United Arab Emirates, Oman, Turkey, Israel, Kazakhstan, Sudan, Madagascar, etc.

The company is equipped with its own product research and development team, which can customize products according to customer drawings or samples, and the factory equipment is relatively complete. From product design to production and installation, professional quality inspectors strictly control the quality of each part.

Shaanxi Zhongtuo Mining Equipment Company takes quality, innovation, and enthusiasm as the principle, development, and win-win as the concept, and keeps working hard to press ahead.
