Capacity 80TPD Gravity Sedimentation Thickener Equipment For Mining Treatment

Capacity 80TPD Gravity Sedimentation Thickener Equipment for Mining Treatment

Product Description:

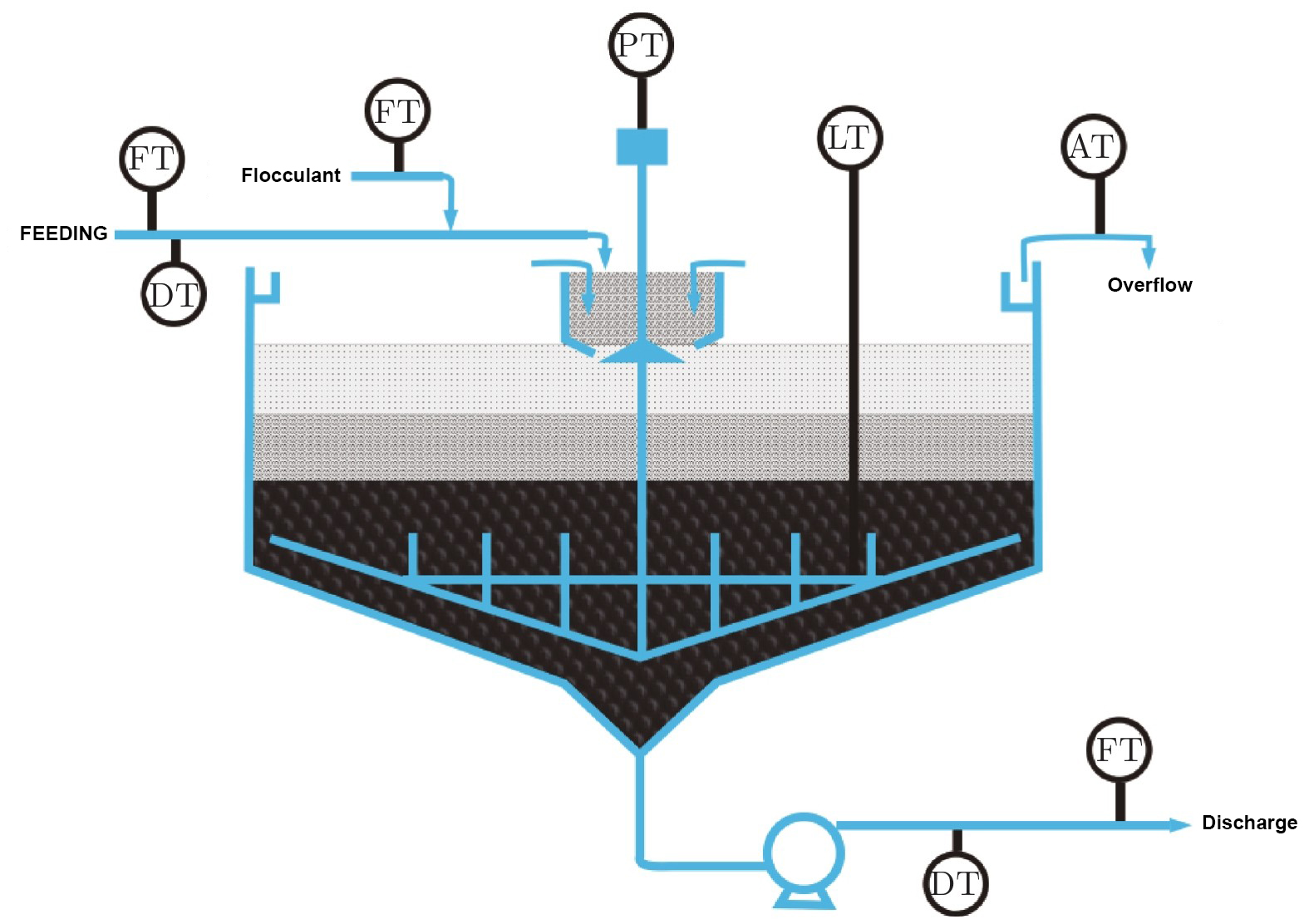

The operating principle of the Thickener Equipment is based on gravity sedimentation. It works by flocculant agent which can settling the solid particles to the bottom of the tank while the clean water is separated and discharged from the overflow pipe. This process helps to classify the minerals and remove any unwanted impurities, leaving clean water behind.

Center drive thickener is consist of cycle tank, rake and drive unit. The bottom of thickener is sloping cone, slope degree: 6°～12°. Normally, the tank is make by concrete, diameter is small, which can also use steel plate. Overflow chute is on the internal side of wall of tank. The vertical column in the center of tank is connected with rake device, which is consisted with rake arm, rake blade and fasten rods. Two rake rams vertical a cross. In order to discharge the settling product on the tank bottom completely, the rake blade mount on the ram with 30° sloping degree. Vertical column is on the inside hole of screw gear. Due to the location function of connecting key, the vertical column only move up and down along the screw gear shaft.

It is mainly for concentration of fine mine, washing, dewatering and tailings in wet mineral separation, it is also widely used for concentration and purification in coal industry, steel plant, chemical industry, construction materials, cement, sewage treatment, etc.

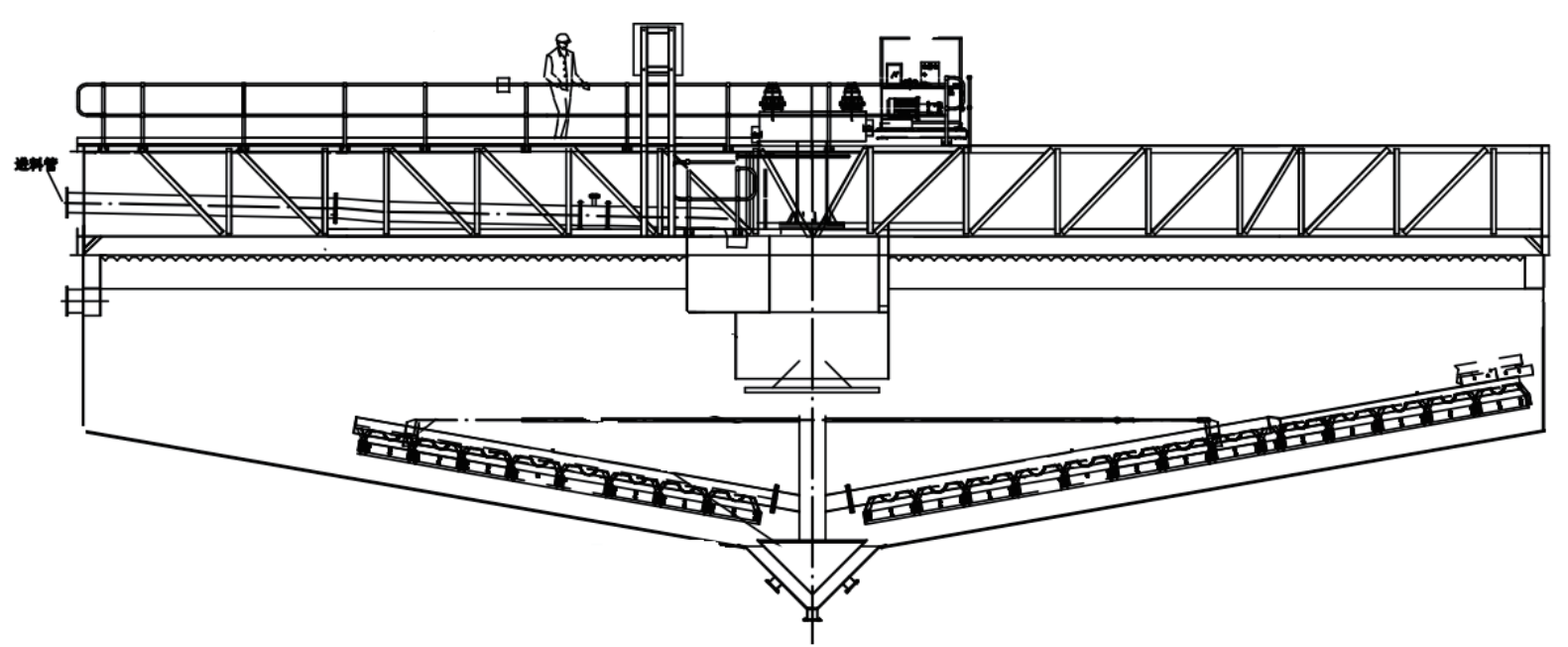

Section Drawing of Thickener:

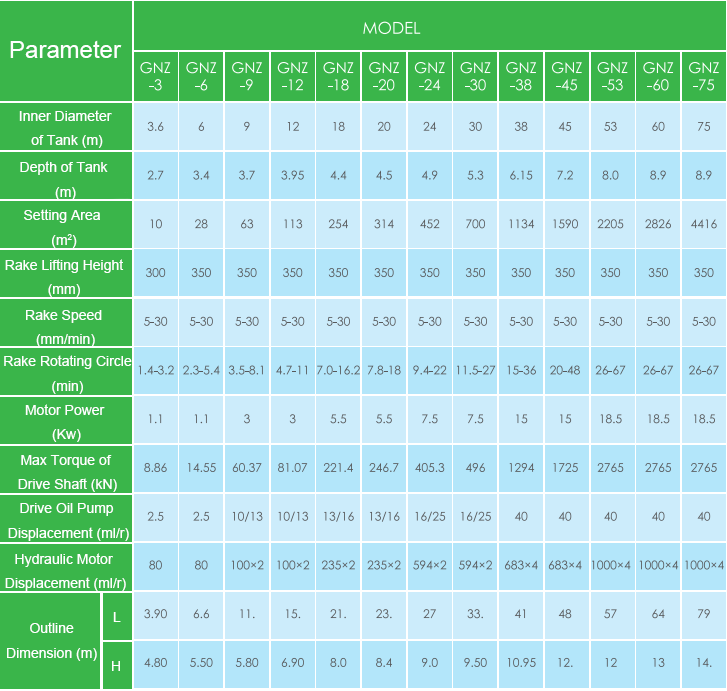

Technical Parameters:

Support and Services:

Our Thickener Equipment product is designed to provide efficient solid-liquid separation and concentrate sludge.

Installation and commissioning

Operator training and process optimization

Routine maintenance and troubleshooting

Spare Parts and consumables

Customized design

Equipment supply

FAQ:

Q: What is the brand name of this thickener equipment?

A: The brand name of this thickener equipment is UNIVEE.

Q: Where is this thickener equipment manufactured?

A: This thickener equipment is manufactured in China.

Q: What type of materials can be processed using this thickener equipment?

A: This thickener equipment can be used to process a variety of materials, including but not limited to: coal, ore, minerals, and chemicals. Please refer to the product specifications for more detailed information.

Univee（Chongqing）Electrical Technology Co., Ltd (hereinafter UNVIEE) is a professional company, specialized in electromechanical equipment research and development, manufacturing, sales and installation. UNIVEE devotes to customized equipment design, manufacture and technical services in solid-liquid separation, industry sewage/waste gas treatment, mine tailings treatment and recycle, solid waste harmless treatment, municipal sewage and waste treatment.

UNIVEE has strong professional design and technical service experience. The core department of UNIVEE is consisted with Chinese specialists who are from a UK leading company, Delkor in solid-liquid separation equipment field. The technical team of UNIVEE has been continuously improved, innovated, optimized in these years by combining Delkor solid-liquid theory, Chinese technical standard and newest international standard, we formed an advantage solid-liquid theory and applied into practice, which are successfully in each kind of environmental protection, sewage/waste gas treatment and solid-liquid industries of UNIVEE’s.

We adheres “Integrity, Prosperity, Innovation” principle to cooperate with our clients and create a better green future.

Main scope of supply: Horizontal vacuum belt filter (HVBF), Ceramic vacuum filter (CVF), Hi-efficient thickener (HT), Deep cone type thickener (DCT), Vertical filter press (VFP), Squeezing filter (SF), Pressure filter (PF), Hydocyclone (HC), etc., which is widely applicated in energy source, chemical industry, mine, metallurgy, fertilizer, pharmacy, food industry, power plant (FGD), paper, textile and printing, sewage treatment, tailing treatment and municipal sewage/waste gas purification, recycle and solid-liquid separation fields.

Our company has an experienced technical developing team, with capability of specialized design, installation, aftersales support and guarantee, providing professional technical services and operation management supports. During the market developing, UNIVEE also cooperated with related research institutes and companies for technology and projects.
