| Categories | Silicone Rubber Injection Molding Machine |
|---|---|
| Brand Name: | JUCHUAN |
| Certification: | SGS CE ISO9001:2015 |
| Place of Origin: | Guangdong China |
| MOQ: | 1set |
| Price: | USD 32000-45000one set |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 Set/Month |
| Delivery Time: | 45 days |
| Model Number: | JC-VI-AO |
| Packaging Details: | Fixed with hard straps |
| Clamp Force(Ton): | 50-400 |
| Injection Volume(cc): | 500-4000 |
| Injection Pressure(kgf/cm2): | 1800 |
| Platen Size(mm): | 300*300-700*700 |
| Min. Mold Thickness(mm): | 50-100 |
| Plunger Stroke(mm): | 300-500 |
| Plunger Diameter(mm): | 250-500 or Customized |
| Heating Plates Distance(mm): | 50-100 |
| Tie Bar Distance(mm): | 400*140-820*395 |
| Mold Opening Type: | 2RT-3RT-4RT-Upper Hanging Die-Lower Hanging Die |
| Max. Operating Pressure(MPa): | 20 |
| Motor Power(KW): | 5.5-11 |
| Heating Power(KW): | 8.4-24 |
| Total Power(KW): | 13.9-35 |
| Gross Weight(Ton): | 5.5-10 |

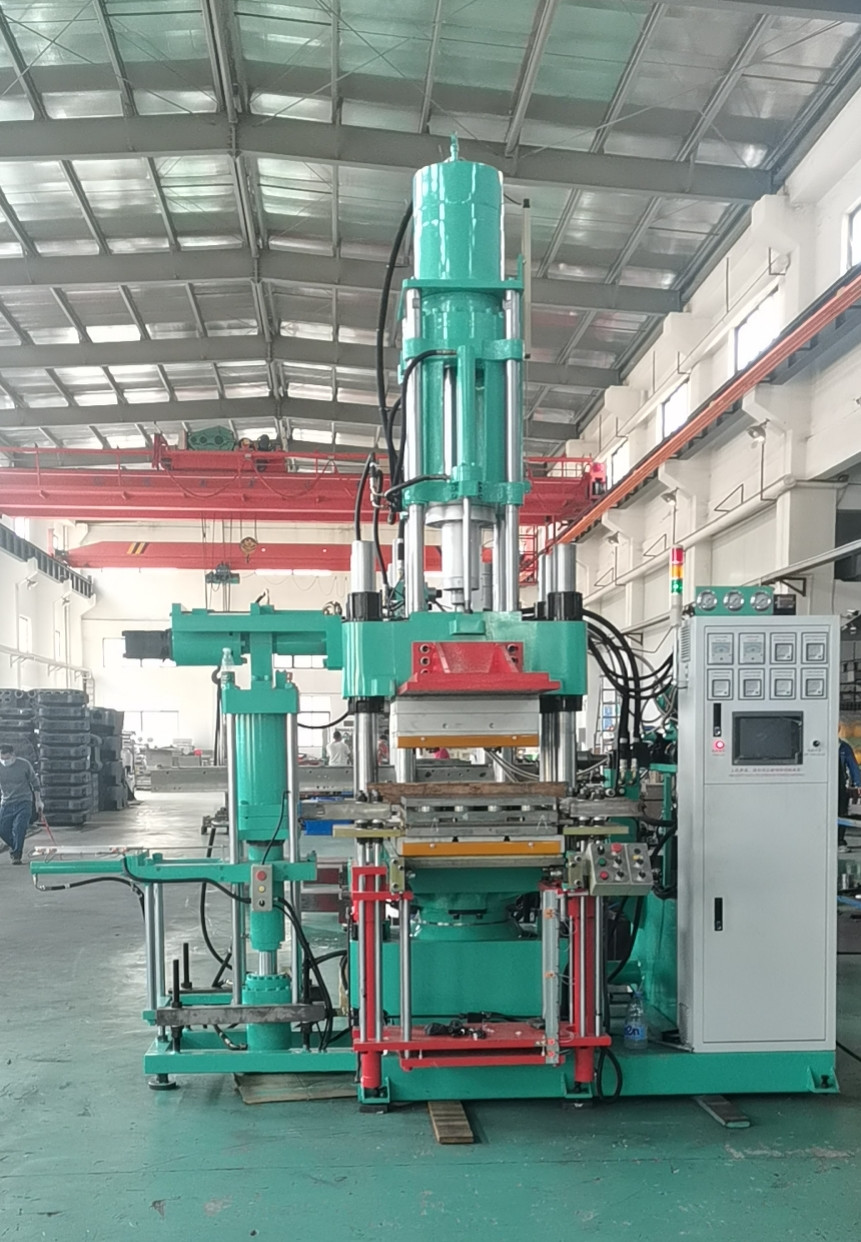

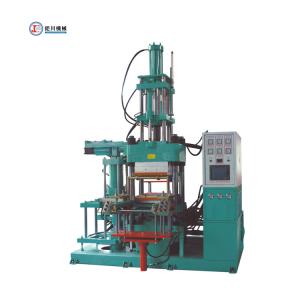

China Factory High Speed Vertical Silicone Injection Molding Machine
for Water Bottle Silicone Part
Machine Features
* This machine is suitable for making car silicone spare parts and silicone electrical products.
* All in all out injection structure, non-nozzle material barrel design, no check valve, no aging rubber when in plasticizing.
* Little residual waste, reduce barrel blockage, easy change different color raw material and clean barrel.
* Visible feeding system: easy check and control rubber temperature and speed, it can effectively monitor plasticizing state of rubber material and ensure 100% plasticizing effect.
* Accurate injection: 1000cc injection can be ±0.1g accurate.
Technical Parameters
| Model | 50VI-AO | 100VI-AO | 200VI-AO | 300VI-AO | 400VI-AO |
| Clamping Force (Ton) | 50 | 100 | 200 | 300 | 400 |
| Injection Volume (cc) | 500 | 500 | 2000 | 3000 | 4000 |
| Injection Pressure (kgf/cm²) | 1800 | 1800 | 1800 | 1800 | 1800 |
| Platen Size (mm) | 300*300 | 400*400 | 550*560 | 700*700 | 700*700 |
| Plunger Diameter (mm) | Customized | Φ250 | Φ360 | Φ450 | Φ500 |
| Min. Mold Thickness (mm) | 50 | 50 | 100 | 100 | 100 |
| Plunger Stroke (mm) | 300 | 350 | 400(500) | 400(600) | 400(500) |
| Heating Plates Distance (mm) | 350 - 450 | 400 - 500 | 500 - 600 | 500 - 600 | 500 - 600 |
| Tie Bar Distance (mm) | 400*140 | 515*230 | 640*310 | 820*395 | 820*395 |
| Mold Opening Type | 2RT-3RT-4RT Upper Hanging Die-Lower Hanging Die | ||||
| Max. Operating Pressure (Mpa) | 20 | 20 | 20 | 20 | 20 |
| Motor Power (KW) | 5.5 | 7.5 | 11 | 11 | 11 |
| Heating Power (KW) | 8.4 | 10 | 15.3 | 24 | 24 |
| Total Power (KW) | 13.9 | 17.5 | 26.3 | 35 | 35 |
| Gross Weight (Ton) | 5.5 | 6 | 7.5 | 9 | 10 |
| Machine Size L*W*H (mm) | 2000*1500*2800 | 2400*1650*3200 | 2600*2000*4000 | 2750*2265*4200 | 2750*2265*4200 |
Application Products
Company Information
* Guangzhou JuChuan Machinery Co. Ltd. has been established in 1997 with a covering area of 20,000 square meters and over 20 sets of processing equipment. Our major products are including silicone rubber injection molding machine, vacuum compression molding machine, hydraulic hot press machine, injection molds, customized equipment and auxiliary equipment like robot arms.
* Our products have gained the national patents with efforts of the esteemed engineers, the advanced R&D ability, and the long-term technical cooperation with German company. We have a completed quality management system and excellent after-sale service system based on the standard GB/T19001-2016/ISO9001-2015. With the idea of "Quality is the BASIC to create value", we commit to provide the best technical support and sales services for all our customers.
* Nowadays, our products export to Germany, Russia, Ukraine, Turkey, Thailand, Vietnam, Malaysia, Indonesia, India, Cambodia, Saudi Arabia, Sudan, South Africa, Nigeria, Kenya, Morocco, Pakistan, Iran, Tunisia, Egypt, Israel, Afghanistan, Kazakhstan, Guatemala and Mexico.

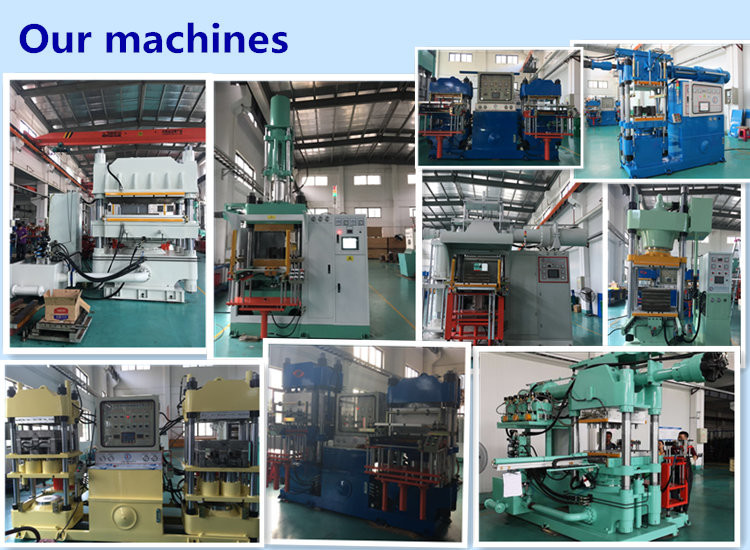

Our Main Products
Silicone rubber injection molding machine
Vertical hydraulic rubber injection machine
Horizontal silicone rubber injection machine
Liquid silicone injection molding machine
Vacuum compression machine
Silicone rubber hot press machine
Trade Show
Our service
1. Free technology training: you can come for inspection and training for free.
2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.
3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)
4. Online remote control for software problems, whatspp or wechat for video checking.
|
