Name: Silicone Pressing Injection Molding Machine For Silicone Baby Nipple Silicone Baby Product Making Machine
Brand: JUCHUAN
Price: 21800 USD

Home > Engineering & Construction Machinery >

Silicone Pressing Injection Molding Machine For Silicone Baby Nipple/ Silicone Baby Product Making Machine

Categories	Silicone Rubber Injection Molding Machine
Brand Name:	JUCHUAN
Certification:	SGS CE ISO9001:2015
Place of Origin:	Guangdong China
MOQ:	1set
Price:	USD 21800-40000one set
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100 Set/Sets per Month
Delivery Time:	45 days
Model Number:	JC-VI-AO
Packaging Details:	Fixed with hard straps
Clamp Force(Ton):	50-400
Injection Volume(cc):	500-4000
Injection Pressure(kgf/cm2):	1800
Platen Size(mm):	300*
Plunger Diameter(mm):	250-500 or Customized
Min. Mold Thickness(mm):	50-100
Plunger Stoke(mm):	300-500
Heating Plates Distance(mm):	350-600
Tie Bar Distance(mm):	400140-820395
Mold Opening Type:	2RT-3RT-4RT-Upper Hanging Die-Lower Hanging Die
Max. Operating Pressure(MPa):	20
Motor Power(KW):	5.5-11
Heating Poweer(KW):	8.4-24
Total Power(KW):	13.9-35
Gross Weight(Ton):	5.5-10
Machine Size LWH(mm):	200015002800 - 275022654200

Contact Now

Add to Cart

Company Info.

Guangzhou Juchuan Machinery Co., Ltd.

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Silicone Pressing Injection Molding Machine For Silicone Baby Nipple/ Silicone Baby Product Making Machine

Silicone Pressing Injection Molding Machine For Silicone Baby Nipple/

Silicone Baby Product Making Machine

Detailed Product Description

Structure Mode:	Vertical	Model Number:	JC-100VI-AO
Main Technology:	Complete Intellectual Property Rights	Platen Size:	400x400mm
Injection Volume:	500cc	Clamp Force:	1000 Ton
Injection Pressure:	1800kgf/cm²	Plunger Stroke:	350mm
High Light:	hydraulic power press machine , hydraulic oil press machine

Silicone Pressing Injection Molding Machine For Silicone Baby Nipple/Silicone Baby Product Making Machine

Application:

Suitable for multilateral, polygonal and other complicated shape products；
Particularly for cooking utensil, sporting goods , medical supplies, auto accessories,high and low voltage electricity, electronic accessory and other high precision applications.
Suit for antomotive and electronic rubber parts, high / cold temperature precision rubber parts, specially for NBR products

Application:

It has various molding method (2RT, 3RT, 4RT, 5RT).
Accurate mold position to ensure safety and mold won’t collide.
Dual motors design to ensure the couple stations could work independently & safely.

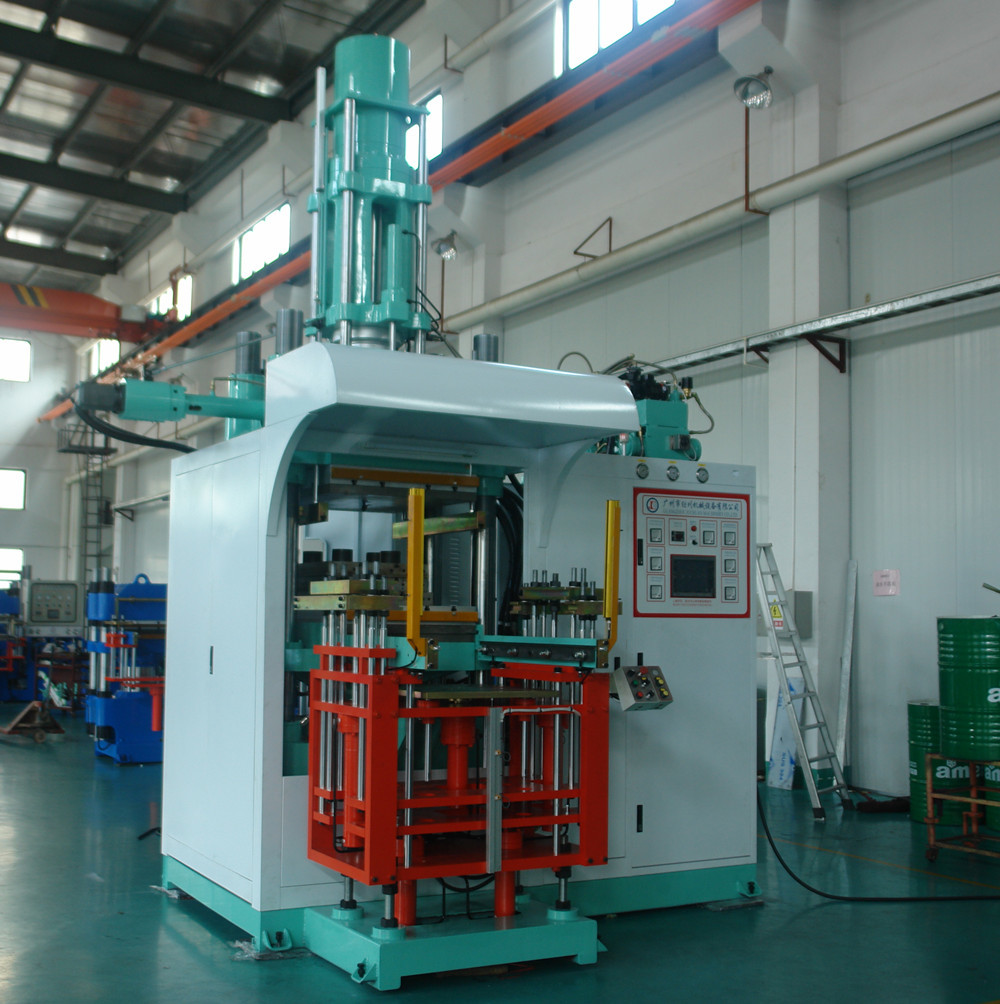

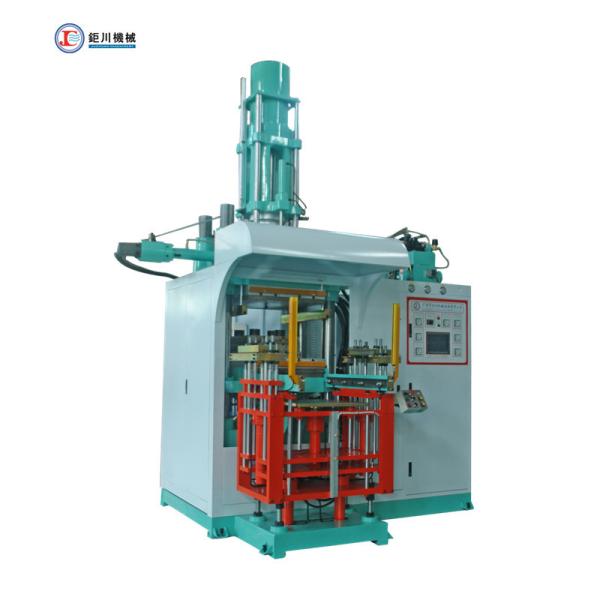

Vertical "all-in-out" Silicone/Synthetic Rubber Injection Machine

Suitable for automotive and electronic rubber parts, high/cold temp precision rubber parts, especially NBR products
All-in-out structure, sprueless injection without material loss controllable injecting material temperature
Excellent for high precision molding part
5-10 times better accuracy than conventional injection machine the measuring precision of 1000cc injection volume is up to ±0.1 g
Anti-collision Molding System prevent mold damage occurring from misalignment (Patented)
Servo-Controlled system -Up to 40% energy saving
Proportional backpressure controlling characteristic

Main Technical Parameters:

Model	Unit	100VI-AO	200VI-AO	300VI-AO	400VI-AO	600VI-AO	800VI-AO	1000VI-AO
Clamping Force	Ton	100	200	300	400	600	800	1000
Injection Capacity	cc	500	2000	3000	4000	6000	8000	10000
Injection pressure	kgf/cm²	1800	1800	1800	1800	1800	1800	1800
Operation table size	mm	400*400	550*560	700*700	700*700	850*850	1000*1000	1200*1200
Min. Mold Thickness	mm	50	100	100	100	100	150	150
Plunger stroke	mm	350	400	400	400	500	500	500
Distance of Thermo-plate	mm	400~500	500~600	500~600	500~600	600~700	650~800	650~800
Distance of Tie bar	mm	515*230	640*310	820*395	820*395	970*500	1140*600	1340*800
Die sinking type	2RT-3RT-4RT-Upper Mold-Lower Mold
Max. Operating Pressure	Mpa	20	20	20	20	20	20	20
Motor Power	hp	10	15	15	15	20	20	25
Electric Heating Power	Kw	10	15.3	24	24	29.75	35	42
Total Power	Kw	20.5	30.3	39	39	48.75	54	64.5
Gross weight	Ton	6	7.5	9	10	14.2	17.5	21
Dimension *(LWH)*	mm	24001650 3200	26002000 4000	27502265 4200	27502265 4200	32002500 4350	L3450W2750 H4500	37503050 5000
