| Categories | Car Spray Booth |
|---|---|
| Brand Name: | SINOCAR |
| Model Number: | SB-002 |
| Place of Origin: | Shanghai,China |
| Certification: | CE/CCC/ISO 9001 |
| MOQ: | 1 SET |
| Price: | Price peivate chat to get |
| Packaging Details: | Standard Package |
| Delivery Time: | 5-8 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 PCS Per Month |
| Control: | Manual |
| Max.Working Temperature: | 80℃ |
| Curing System: | Included |
| Material: | Steel |
| Spray Booth: | Included |
| Safety Door: | Rock Wool Panel Fire Resistant Wall Without Glass |
| Filter: | 2-stage |
| Filter System: | Floor Filter & Celling Filter |

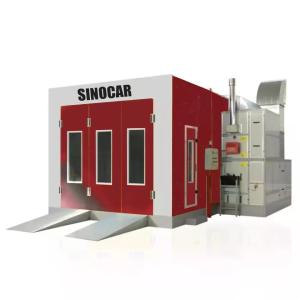

The Car Spray Booth is a vehicle painting booth specifically designed for safety and efficiency. It is an ideal choice for painting a variety of vehicles, from cars, trucks, and buses, to boats, motorbikes, and more. It is constructed with a steel frame and a fire-resistant wall without glass, making it a safe and durable choice. The safety door is made with a rock wool panel, providing additional protection against fire. The spray booth also includes a manual control and 2-stage filter, allowing you to customize your vehicle painting experience. Whether you need a car spray booth for your professional workshop or for your home garage, the Car Spray Booth is the perfect choice for vehicle painting.
| SINOCAR SB-002(STANDARD SPECS) | ||
| Basement Structure | Basement | Steel structure, 2 row of checked plates and 3 rows of vein boards,with the loading capacity of 3T |
| Basement Height | 300MM | |
| Ramp | Inner ramp/external ramp | |
| Booth Cabin | Panel | 1.Colorful steel skin panel. Rock wool panel fire resistant wall
5cm, two layers 0.35cm steel cover with fire resistant thermal
insulation materials in. 2.Galvanized steel roof panel, anti-flame |
| Front Door/Safety Door | Three offs sheetmetal front door with glass | |
| Safety Door | Rock wool panel fire resistant wall without glass | |
| Lighting System | Top Lighting | LED Ceiling lights:8 groups×3pieces =24pieces ×16W, with powder-coated light box |
| Filter System | Primary Filter | The primary filter can capture granules larger than 10μm, filtering rate > 83% |
| Floor Filter | Multi-layer fiberglass filter, filtering rate＞70% | |
| Ceiling Filter | Ceiling filter can capture granules bigger than 4μm, filtering rate> 98% | |
| Intake&Exhaust System | Intake Fan | 2×4KW YDW double-intake centrifugal fans, total air capacity: 25000m³/h |
| Exhaust Duct | Straight tube and bend | |
| Heating System | Halogen Infrared Heating | 220V/380V,24KW, 8 sets Halogen infrared barking lamps, every set with 3*1KW barking lamps.(Diesel heating: oil burner with 140000Kcal/h, Optional) |
| Max.Working Temperature | 80℃ | |
| Heating Up Time | 5-8min | |
| Control System | Control Panel | Intelligent controlling system, lighting switch, spraying, heat spraying, baking, temperature controller, time setting, emergency stop |
| Functions | Spray, Bake, Lighting and Emergency Stop | |
| Size | Inner Size | 7900*4100*2700mm (L*W*H) |
| Outer Size | 8000*5300*3300mm (L*W*H) | |
| Remarks: Electric and Diesel Heating System are optional according to the requirement. | ||
|
