| Categories | Car Spray Booth |
|---|---|
| Brand Name: | SINOCAR |
| Model Number: | SB-001 |
| Place of Origin: | Shanghai,China |
| Certification: | CE/CCC/ISO 9001 |
| MOQ: | 1 SET |
| Price: | $6000-$15000 |
| Packaging Details: | Standard Package |
| Delivery Time: | 5-8 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 PCS Per Month |
| Material: | Steel |
| Spray Booth: | Included |
| Control: | Manual |
| Filter: | 2-stage |
| Lighting: | LED |
| Safety Door: | Rock Wool Panel Fire Resistant Wall Without Glass |
| Max.Working Temperature: | 80℃ |
| Filter System: | Floor Filter & Celling Filter |
The automotive paint booth, also known as the vehicle painting booth, is an essential tool for any automotive and industrial paint shop. It is designed to provide a safe, efficient and controlled environment for the application of any kind of paint or coating. Our spray booth has a curing system included, and a safety door with rock wool panel fire resistant wall without glass. Its maximum working temperature is 80℃, and it is explosion-proof for added safety. In addition, our spray booth is easy to install, energy saving, and provides good air circulation for a better painting result. With our spray booth, you can enjoy a fast and effective painting job, and an improved overall working efficiency.

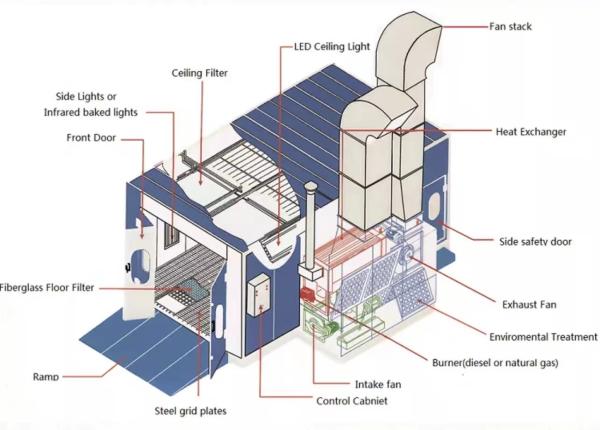

| SINOCAR SB-005(LUXURY SPECS) | ||
| Basement Structure | Basement | Steel structure, 2 row of checked plates and 3 rows of vein boards,with the loading capacity of 7T |
| Basement Height | 300MM | |
| Ramp | Inner ramp/external ramp | |
| Booth Cabin | Panel | 1.Colorful steel skin panel. Rock wool panel fire resistant wall
5cm, two layers 0.35mm steel cover with fire resistant thermal
insulation materials in. 2.Galvanized steel roof panel, anti-flame |
| Front Door/Safety Door | Four offs all glass front door | |
| Safety Door | sheetmetal door with glass | |
| Lighting System | Top Lighting | LED Ceiling lights:8 groups×3pieces =24pieces ×16W, with powder-coated light box |
| Wall LED boards | 8 sets of LED light 3*16W=48W | |
| Filter System | Ceiling Filter | Ceiling filter can capture granules bigger than 4μm, filtering rate> 98% |
| Intake&Exhaust System | Intake Fan | 2×5.5KW YDW double-intake centrifugal fans, total air capacity: 28000m³/h |
| Outlet fan | 2.2KW centrifugal fans | |
| Exhaust Duct | Straight tube and bend | |
| Heating System | Halogen Infrared Heating | Infrared heating lamps with explosion resistant ,220V/380V,24KW, 8 sets Halogen infrared barking lamps, every set with 3*1KW barking lamps |
| Max.Working Temperature | 80℃ | |
| Heating Up Time | 5-8min | |
| Control System | Control Panel | Intelligent controlling system, lighting switch, spraying, heat spraying, baking, temperature controller, time setting, emergency stop |
| Functions | Spray, Bake, Lighting and Emergency Stop | |
| Size | Inner Size | 7900*4100*2700mm (L*W*H) |
| Outer Size | 8000*5300*3300mm (L*W*H) | |
| Remarks: 1.Quantum Graphene Heating System are optional according
to the requirement. 2.Electric and Diesel Heating System are optional according to the requirement. | ||
SINOCAR Spray Booth SB-001 can be used for vehicle painting and automotive paint applications. This product is made in Shanghai,China and is certified by CE/CCC/ISO 9001. The minimum order quantity is 1 SET, and customers can get the price by private chat. The package of the product is standard, and the delivery time is 5-8 weeks. Customers can pay by T/T or Western Union, and the supply ability is about 100 PCS Per Month. The front door and safety door of this product are both made of three offs sheetmetal front door with glass and rock wool panel fire resistant wall without glass respectively. The LED lighting and explosion-proof safety features further ensure the quality and safety of this product.
We offer technical support and service for our Car Spray Booth. Our experts are available to answer any questions you may have about the product and its features. We also provide a comprehensive warranty and maintenance service to ensure that your booth operates at its best. If you ever experience any problems with the product, please contact us and we will do our best to help you.
|
