Automotive Dustfree Car Spray Booth With Filtration System

Categories Car Spray Booth
Brand Name: SINOCAR
Model Number: SB-008L
Certification: CE/CCC/ISO 9001
Place of Origin: Shanghai, China
MOQ: 1
Price: Price private chat to get
Payment Terms: T/T, Western Union
Supply Ability: 100 PCS Per Month
Delivery Time: 5-8 weeks
Packaging Details: Standard Package
Product name: Luxury Spray Booth
Electric Heating: 10 Pcs infrared lamps
Diesel Heating: Oil Burner wirh 140000Kcal/h
Fans: 2*5.5KW inlet fans; 1 pcs 2.2KW outlet fans
Filter System: Floor filter & celling filter
Package Size: 22CBM, 3000kg
Inner Size: 7900*4100*2700mm (L*W*H)
Outer Size: 8000*5300*3300mm (L*W*H)
Max.Working Temperature: 80℃
Functions: Spray, Bake, Lighting and Emergency Stop
Front Door/Safety Door: Four offs all glass front door
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

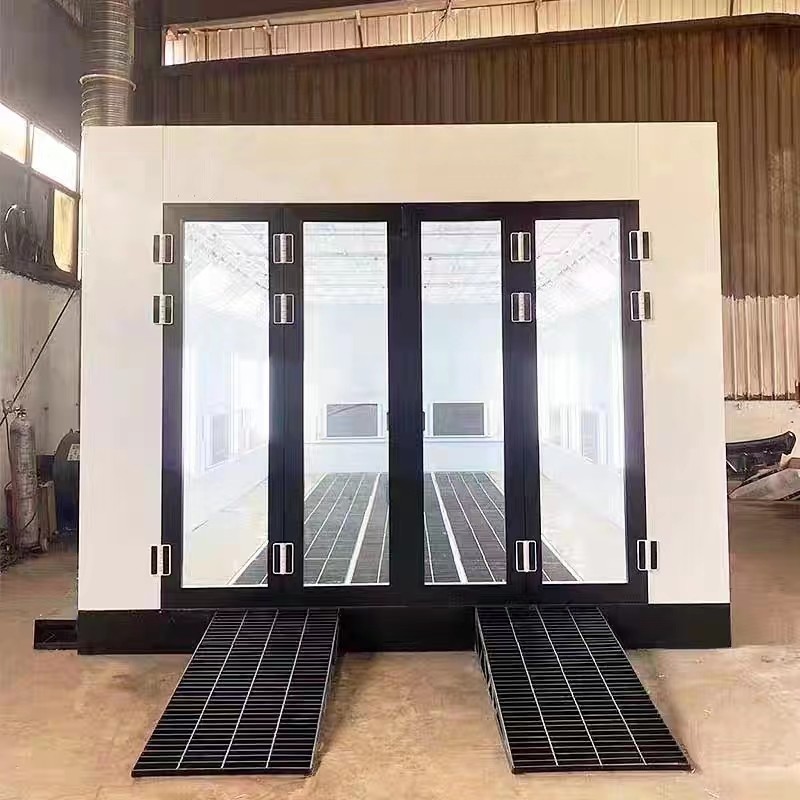

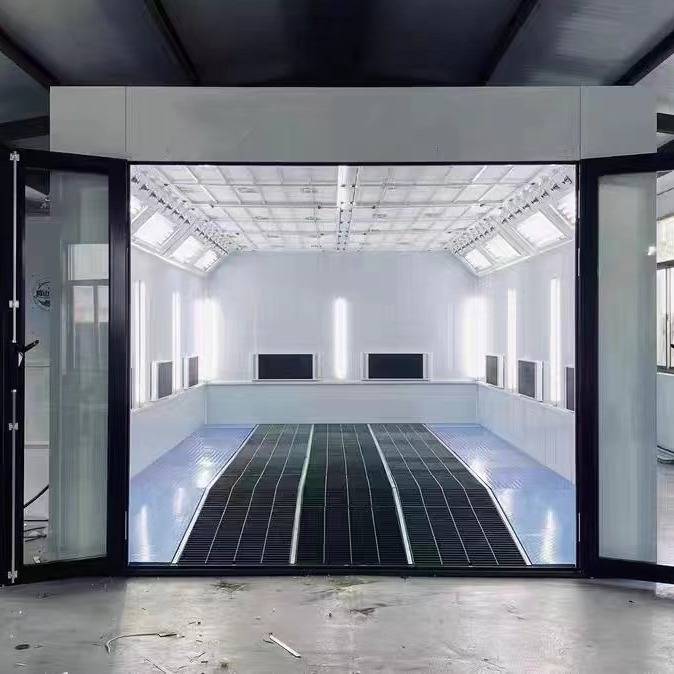

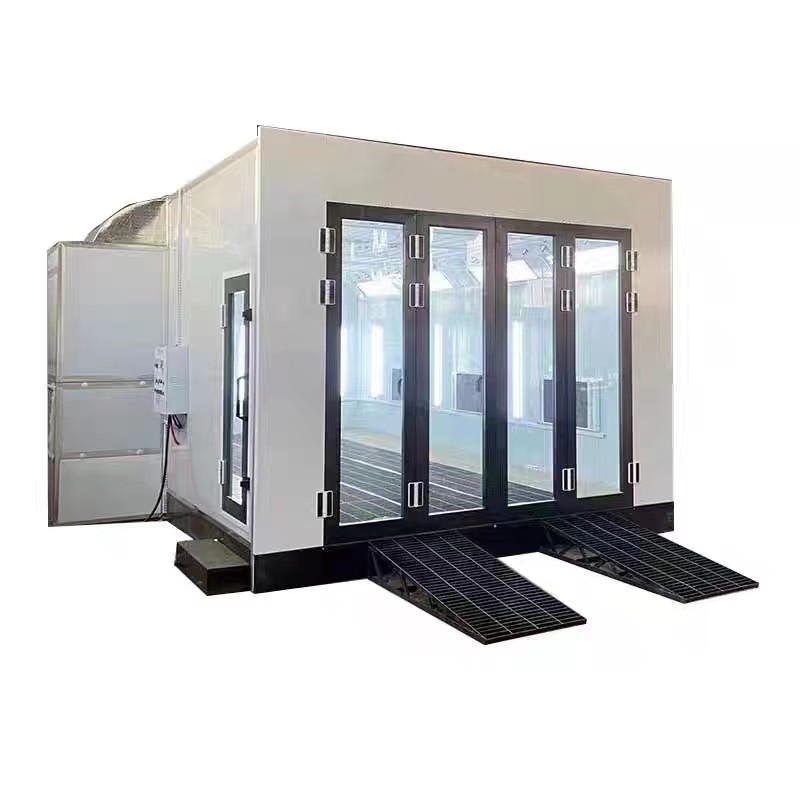

Automotive Dustfree Car Spray Booth With Filtration System

Luxury Car Spray Booth with Fire Resistant Penal Customized Painting Room


Product Description:

A luxury spray booth is a specialized facility or enclosure designed for applying paint, coatings, and finishes to high-end or luxury products such as automobiles, furniture, electronics, and other valuable items. These booths provide controlled environments that minimize dust, debris, and contaminants, ensuring a high-quality and flawless finish on luxury products. Here's an introduction to some key aspects of a luxury spray booth:

Features:

  1. Controlled Environment: Luxury spray booths maintain precise temperature, humidity, and ventilation control to create the optimal conditions for applying coatings. This helps in achieving consistent results and preventing issues like dust, debris, or uneven application.

  2. Filtration Systems: High-end spray booths are equipped with advanced air filtration systems that remove particles and contaminants from the air, ensuring that the painted surface remains free from imperfections.

  3. Lighting: Proper lighting is crucial for achieving accurate color matching and flawless finishes. Luxury spray booths often feature specialized lighting systems that mimic natural daylight to ensure consistent color representation.

  4. Temperature and Humidity Control: Temperature and humidity can affect the drying time and quality of coatings. Luxury booths allow operators to control these factors precisely, which is crucial for achieving the desired finish.

  5. Exhaust System: Efficient exhaust systems help remove fumes, vapors, and overspray from the booth, maintaining a safe and comfortable working environment for operators.

  6. Automation and Technology: Some high-end spray booths may include automation features, such as programmable controls and robotic arms, that enhance efficiency and reduce human error during the painting process.

  7. Size and Configuration: Luxury spray booths come in various sizes and configurations to accommodate different types of products. They can be customized to suit specific needs, whether for large items like cars or smaller items like electronics.

  8. Safety Features: Safety is paramount in any spray booth. Luxury models often include safety features like fire suppression systems, emergency stop buttons, and advanced monitoring systems to ensure the well-being of operators and the protection of the environment.

  9. Energy Efficiency: Many modern luxury spray booths are designed to be energy-efficient, utilizing technologies like variable frequency drives (VFDs) and LED lighting to reduce energy consumption and operational costs.

  10. Compliance: High-quality spray booths adhere to industry standards and regulations, ensuring that the finishes applied meet safety, quality, and environmental requirements.

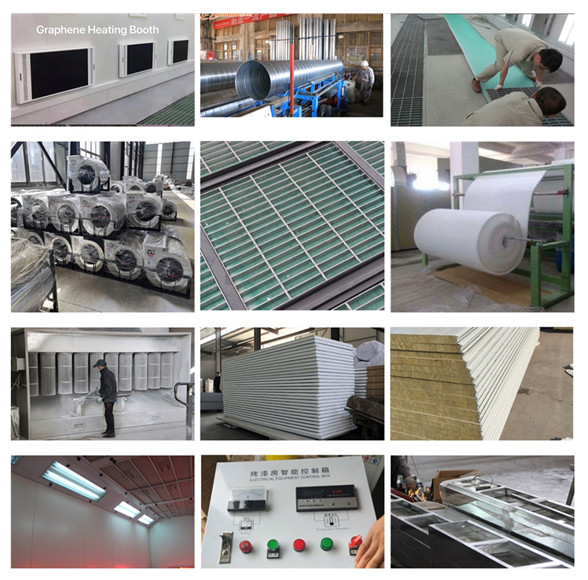

Technical Parameters:

SINOCAR SB-005(LUXURY SPECS)
Basement StructureBasementSteel structure, 2 row of checked plates and 3 rows of vein boards,with the loading capacity of 7T
Basement Height300MM
RampInner ramp/external ramp
Booth CabinPanel1.Colorful steel skin panel. Rock wool panel fire resistant wall 5cm, two layers 0.35mm steel cover with fire resistant thermal insulation materials in.
2.Galvanized steel roof panel, anti-flame
Front Door/Safety DoorFour offs all glass front door
Safety Doorsheetmetal door with glass
Lighting SystemTop LightingLED Ceiling lights:8 groups×3pieces =24pieces ×16W, with powder-coated light box
Wall LED boards8 sets of LED light 3*16W=48W
Filter SystemCeiling FilterCeiling filter can capture granules bigger than 4μm, filtering rate> 98%
Intake&Exhaust SystemIntake Fan2×5.5KW YDW double-intake centrifugal fans, total air capacity: 28000m³/h
Outlet fan2.2KW centrifugal fans
Exhaust DuctStraight tube and bend
Heating SystemHalogen Infrared HeatingInfrared heating lamps with explosion resistant ,220V/380V,24KW, 8 sets Halogen infrared barking lamps, every set with 3*1KW barking lamps
Max.Working Temperature80℃
Heating Up Time5-8min
Control SystemControl PanelIntelligent controlling system, lighting switch, spraying, heat spraying, baking, temperature controller, time setting, emergency stop
FunctionsSpray, Bake, Lighting and Emergency Stop
SizeInner Size7900*4100*2700mm (L*W*H)
Outer Size8000*5300*3300mm (L*W*H)
Remarks: 1.Quantum Graphene Heating System are optional according to the requirement.
2.Electric and Diesel Heating System are optional according to the requirement.

Packing and Shipping:

FAQ:

1. Why choose SINOCAR?
* Top Quality, Competitive Price with high quality revenue producing products.
* Excellent Customer Service.
* Quickest reply in 24 hours with technical support, email, telephone or video call.
* Fast Shipment.
* User-friendly English manual for machine using and maintaining.

2. How is the quality and safety of your products?
* Our products have been tested and CE certified for safety. They also meet the American
and Australian Standard.

3. Q: What's the Min order to your company?
* Minimum Order is 1 set. We have products in stocks, we will send out the products within 2 days.

4. Are Sinocar products designed for commercial use?
* All of our products can be used in commercial applications without any problems.

5. I am a person who values service. How about your after-sales service?
* We provide great purchase experiences. All our products have at least 12 months warranty, if there is any problem for the productsinstallment or usage, we provided skilled technical support and also provide the repair parts if the machine parts broken duringthe warranty period.

6. Do you offer any custom designs?
* Yes, Sinocar provide OEM/ODM services to top range partners. And our skilled engineers can provide great designing suggestions.
