| Categories | Swiss Lathe Collets |
|---|---|
| Machines: | STAR, CITIZEN, TSUGAMI, NOMURA,TORNOS |
| Thread Gauge: | M4*0.7/ M4*0.5/ M5*0.8/ M6*0.75/ M7*0.75/ M8*1.0/ M9*1.0/ M10*1.0/ M17*1.0/ M25*1.5 |
| Material: | Spring Steel |
| Application: | CNC Lathe |
| Brand: | LENS/ IEMCA/ TKURA/ PRO |
| Length: | 45mm~98mm |
| Place of Origin: | Shenzhen.China |
| Brand Name: | Inrover |
| Certification: | ISO9001 |
| MOQ: | 5pcs |
| Price: | Please contact supplier |
| Packaging Details: | plastic box+cartons |
| Delivery Time: | 7-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 30000/Month |
M25P1.5 IEMCA Barfeeder Finger Chuck For Swiss CNC Lathe
IEMCA Finger Chuck/ Barfeed Collet

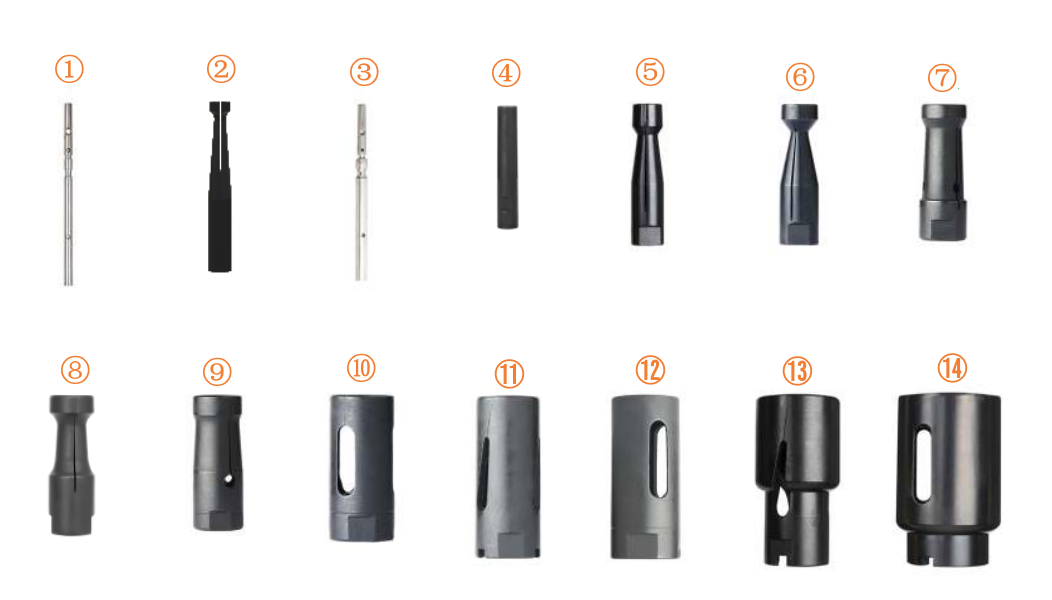

| Model | ID | OD | L | Tooth Gauge | No. |
| 4# | 0.8~4.0mm | 5mm | 98mm | M4P0.7 | 1 |
| 5# | 2.0~4.0mm | 5mm | 37mm | M4P0.5 | 2 |
| 4-7# | 0.8~4.0mm | 7mm | 98mm | M4P0.7 | 3 |
| 4-7# | 4.1~6.0mm | 7mm | 98mm | M4P0.7 | 3 |
| 4-7# | 2.0~5.5mm | 7mm | 98mm | M4P0.7 | 3 |
| 7.5# | 2.0~6.0mm | 7.5mm | 40mm | M5P0.8 | 4 |
| 10# | 1.5·8.5mm | 10mm | 42mm | M6P0.75 | 5 |
| 12# | 1.5~10.5mm | 12mm | 42mm | M7P0.75 | 6 |
| 15# | 2.0~13.0mm | 15mm | 42mm | M8P1.0 | 7 |
| 16# | 12.0~14.0mm | 16mm | 42mm | M8P1.0 | 7 |
| 20# | 3.0~18.5mm | 20mm | 60mm | M10P1.0 | 8 |
| 23# | 16.0~21.0mm | 23mm | 60mm | M10P1.0 | 9 |
| 25# | 16.5~23.0mm | 25mm | 60mm | M10P1.0 | 10 |
| 27# | 16.5~25.5mm | 27mm | 60mm | M10P1.0 | 9 |
| 32# | 4.0~30.0mm | 32mm | 80mm | M25P1.5 | 11 |
| 35# | 28.5~32.0mm | 35mm | 80mm | M25P1.5 | 12 |
| 37# | 31.0~34.0mm | 37mm | 80mm | M25P1.5 | 13 |
| 38# | 31.0~35.0mm | 38mm | 80mm | M25P1.5 | 13 |
| 40# | 21.0~36.5mm | 40mm | 80mm | M25P1.5 | 13 |
| 42# | 31.5~40.0mm | 42mm | 80mm | M25P1.5 | 13 |
| 45# | 38.5~42.2mm | 45mm | 80mm | M25P1.5 | 13 |
| 51# | 42.5~48.0mm | 51mm | 80mm | M25P1.5 | 14 |
|
