Categories | Swiss Lathe Collets |
---|---|
Model Number: | 173E |
Place of Origin: | Shenzhen.China |
MOQ: | 5pcs |
Price: | Please contact supplier |
Payment Terms: | T/T |
Delivery Time: | 7-10 days |
Packaging Details: | plastic box+cartons |
Brand Name: | Inrover |
Certification: | ISO9001 |
Material: | Carbide/Spring Steel |
Clamping Hole Shape: | Round/ Hex/ Square/ Rectangle/ Triangle/ Step Hole/ Elipse/ Octagon/ Six Slots Hole/ Special Hole |
Keyway On Cone: | Can Make As Requsted |
Clamping Hole Surface: | Smooth/Grooved |
ApplicatioSizn: | CNC Lathe |
Supply Ability: | 30000/Month |

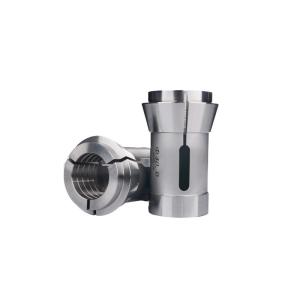

Round Hole 3 Slots Grooved Bore 173E Chuck Collet For Lathe Machine With Large Hole Diameter

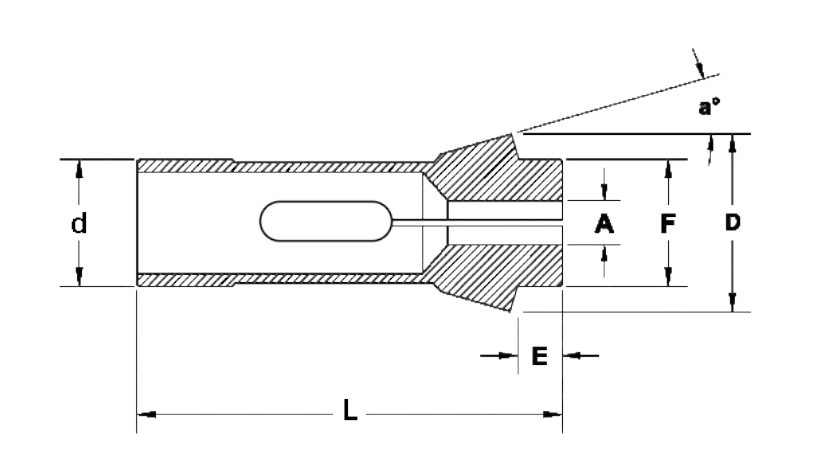

Model No. | d | D | L | E | F | α | A Max | ||
173E | 48 | 60 | 94 | 9 | 50 | 15° | 42 | 36 | 29 |
Product Attribute | Description |
---|---|
Material | Carbide/Spring Steel |
Keyway On Cone | Can Make As Requested |
Clamping Hole Surface | Smooth/Grooved |
One Full Set | Main Collet, Sub Collet, Guide Bush, Bar Feeder Finger Chuck |
Application | CNC Lathe |
Clamping Hole Shape | Round/ Hex/ Square/ Rectangle/ Triangle/ Step Hole/ Elipse/ Octagon/ Six Slots Hole/ Special Hole |
Swiss Lathe Collets Technical Support & Service
We provide free technical support and repairs for Swiss Lathe
Collets. Our experienced technical staff is available to answer
your queries and help you troubleshoot any problems you may have.
We also offer a full range of services to keep your Swiss Lathe
Collets running smoothly.
If you need assistance or have any questions, please do not
hesitate to contact us. We are here to help you get the most out of
your Swiss Lathe Collets.
![]() |
