Name: M1010 Right Thread Bar Feeder Collet 60mm80mm Length
Brand: Inrover
Price: 1 USD

Home > Tool Parts >

M10*1.0 Right Thread Bar Feeder Collet 60mm~80mm Length

Categories	Swiss Lathe Collets
Brand Name:	Inrover
Certification:	ISO
Place of Origin:	China
MOQ:	1pc
Payment Terms:	T/T
Delivery Time:	3-7 days
Packaging Details:	Plastic bags+ Export carton
Thread Gauge:	M40.7/ M40.5/ M50.8/ M60.75/ M70.75/ M81.0/ M91.0/ M101.0/ M171.0/ M251.5
Brand:	LENS/ IEMCA/ TKURA
Material:	Spring Steel
Application:	CNC Lathe Machine
Machines:	STAR, CITIZEN, TSUGAMI, NOMURA,TORNOS, Etc
Length:	60mm~80mm

Contact Now

Add to Cart

Company Info.

Shenzhen Chenri Precision Hardware Tools Co., Ltd.

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Swiss Lathe Bar Feeder Collets

Bar feeder collets are used on Automatic barfeeders made by Fedek, Iemca, Barload, Tornos etc.,

these bar feeders are mainly used on Swiss type CNC machines for feeding the rods.

The Barfeeder chuck (or) Finger Chuck is used to hold the end of the Raw material bar and rotates with it.

The rod is just pushed into the already crimped Barfeeder collet, and it holds the rods under spring tension.

Therefore, the mechanical springing quality is very important in the Bar feeder collets.

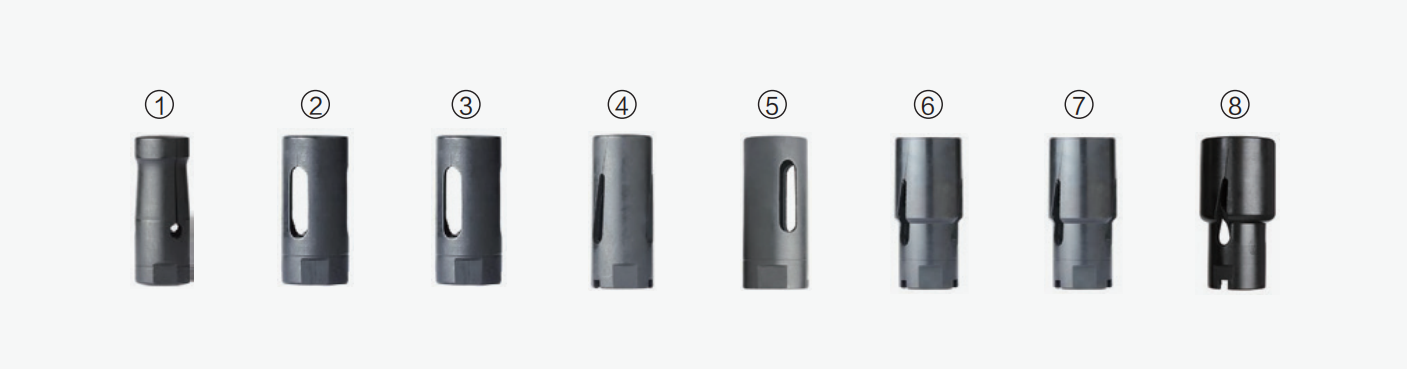

Model	Thread G	Length (mm)	D	Clamping Diameter	No.
#23	M10*1.0	60mm	23mm	16-21mm	1
#25	M10*1.0	60mm	25mm	16.5-22mm	2
#27	M10*1.0	60mm	27mm	16.5-23mm	3
#32	M25*1.5	80mm	32mm	4-30mm	4
#35	M25*1.5	80mm	35mm	28.5-32mm	5
#37	M25*1.5	80mm	37mm	31-34mm	6
#38	M25*1.5	80mm	38mm	31-35mm	7
#40	M25*1.5	80mm	40mm	21-36.5mm	8

All above are standard in stock.

Bar feeder collets are used on Automatic barfeeders made by Fedek, Iemca, Barload, Tornos etc.,

Swiss Lathe Collets - Customized Solutions by Inrover

1. Provide drawing or sample to us

2. We will check drawing and sample to confirm production

3. Lead time: 7-15 days
