Brand Name: | Waterun |
Model Number: | SE-180 SE-80 |
Certification: | CE |
Place of Origin: | China |
MOQ: | 1 |
Price: | USD130 ~ 220 |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal, Credit Card |
Supply Ability: | 10000 units per month |
Delivery Time: | 3-10 days |
Packaging Details: | Solder Smoke Absorber 56 X 40 X 51 cm 13.5kg |
Name: | mini fume extractor |
Filters: | 3 in 1 filter |
Systemic Flow: | 330m3/h |
Filtering Efficiency: | 99.97% 0.3 micron |
Arm Information: | dia.65mm x 1.4m x 2pcs |
Power: | 150W 80W |
Dimensions(mm): | 305 x 305 x 393 mm |
Weight: | 7 kgs |

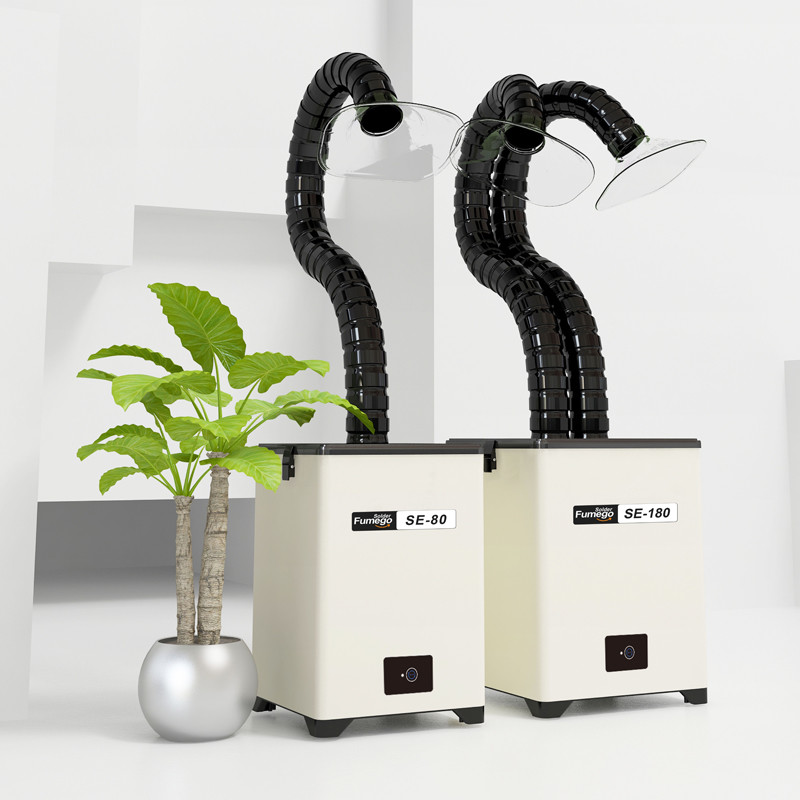

New economic small fume extractor for solder fumes, laser fumes
Description:
This mini FumeGo fume extractor are mainly used to eliminate the
smoke and dust generated during the soldering process in
electronics manufacturing, automobile manufacturing,etc.It is the
best solution to remove such harmful substances, like hydrocarbon
and cyanide etc.With freestanding fume extractor arms and the 3
different air flow speeds to significantly improve the working
environment.
Technical Details:
Model | SE-80 | SE-180 |
Power | 80W | 150W |
Noise | 59 dB | 66 dB |
Systemic Flow | 210 m3/h | 330m3/h |
Air Velocity | 17 m/s | 2 x 13.5 m/s |
Filter Size | 265/240 x 265/240 x 205mm | 305/280 x 305/280 x 205mm |
Gross Weight | 10.1kg | 13.7kg |
Cabinet Dimensions | 265 x 265 x 383mm | 305 x 305 x 393mm |
Package Dimensions | 48 x 36 x 50cm | 56 x 39 x 52mm |
Filtering Efficiency | 0.3um 99.97% | |
Electrical | 110V / 220V | |
Filter Layer | 3 in 1 filter cartridge | |
Remote Control | Not Included | |
Arm Dimension | Diameter 65mm x Length 120cm | |
Packing List | Main Unit: 1 piece Power Cord: 1 piece Arm & nozzle: 1 set Operation Instruction: 1 piece 3in1 Filter cartridge: 1pc already inside machine |
Product Features:
1. New economic version, lower cost fume extractor;
2. Small size, but with bigger filtering capacity;
3. With 3-in-1 filter cartridge, easy to manage the filter
replacement;
4. 360℃ degree filtering design increases the dirt holding capacity
by two times;
5. DC frequency conversion motor, intelligent and energy-saving,
with a life-span as long as 40K hours.
Applications:
Our fume extractors are widely used for eliminating solder fumes,
laser fumes, welding fumes, beauty salon fumes and medical fumes,
3D printing fumes, etc. This small fume extractor especially for
purifying manual soldering fumes, solder pot fumes, soldering robot
fumes, laser marking fumes, beauty salon fumes.
Additional Information:
Available Filter Efficiencies | Pre Filter |
Filter Replacement Period | Pr-Filter: 1 week to 1 month |
About Us:
WATERUN, established in 2003, fume extractor factory located in
Dongguan China, and have been focusing on the purification of
harmful fumes for 18 years. Now we has become the leading
manufacturer of fume extractors in China. Our products are widely
used for eliminating Solder Fumes, Laser Fumes, Welding Fumes,
Beauty Salon Fumes, Medical Fumes, 3D Printing Fumes, etc.
We own several brands: Newoxy, FUME GO, QUBO, etc.
We makes really effective Fume Extractors only. Our superiority in
technology and high quality has gained the leading position in the
air purifying industry. The filtering efficiency of our Fume
Extractors has reached the highest standard in the world.
Patents:
In the past 15 years, we has obtained nearly 50 patents in the air
purifying field.
Honorable Customers:
Global Market:
Our products are getting popular in many countries over the world.
Currently, our products have been exported to USA, Canada, Germany,
Israel, Italy, Brazil, Korea, India, Southeast Asia, Australia,
Japan etc.
Certifications:
Our products have been certified with the European CE
certification, ROHS requirements, Pony certification, and China’s
National Air Quality Testing Standards.
Our Quality:
Our products go from design to production to final product. Each
working procedure is strictly controlled, we make really effective
fume extractors only. The filtering efficiency of our fume
extractors has reached the highest standard in the world.
OEM & ODM Services:
We can offer OEM & ODM services. Welcome to talk with us in details.
![]() |
