Brushless Laser Fume Extractor Mobile Portable With Single Arm

Categories Laser Fume Extractor
Brand Name: Waterun
Model Number: F6001D
Certification: CE
Place of Origin: China
MOQ: 1
Price: USD180 ~ 280
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal, Credit Card
Supply Ability: 10000 units per month
Delivery Time: 3-10 days
Packaging Details: portable fume extractor machine 52 x 35 x 58cm 18kgs Fume Extractor Arms: 44 x 44 x 11cm
Power: 80W
Filters: 3 Layers
Systemic Flow: 235m3/h
Filtering Efficiency: 99.97% @0.3 micron
Arm Length: dia.75mm x 1.4m
Noise: 55dB
Dimensions(mm): 425 x 250 x 410 mm
Weight: 14 kgs
After-sales service provided: Online Support
Application: Industrial, laser fumes,solder fumes etc
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Brushless Laser Fume Extractor Mobile Portable With Single Arm

Brushless Motor Digital Display Portable Fume Extractor With Single Fume Extractor Arm



Description:


The portable fume extractor is an excellent safety machine used for capture and filtration of airborne contaminants.They are affordable and can be easily moved to the places in the shop where they are needed the most.Soldering is one of the key activities in electronics.The solder fumes, soldering smokes released by the solder are not healthy at all;therefore, using our commercial fume extractor which with quite high cost performance is your ideal choice.

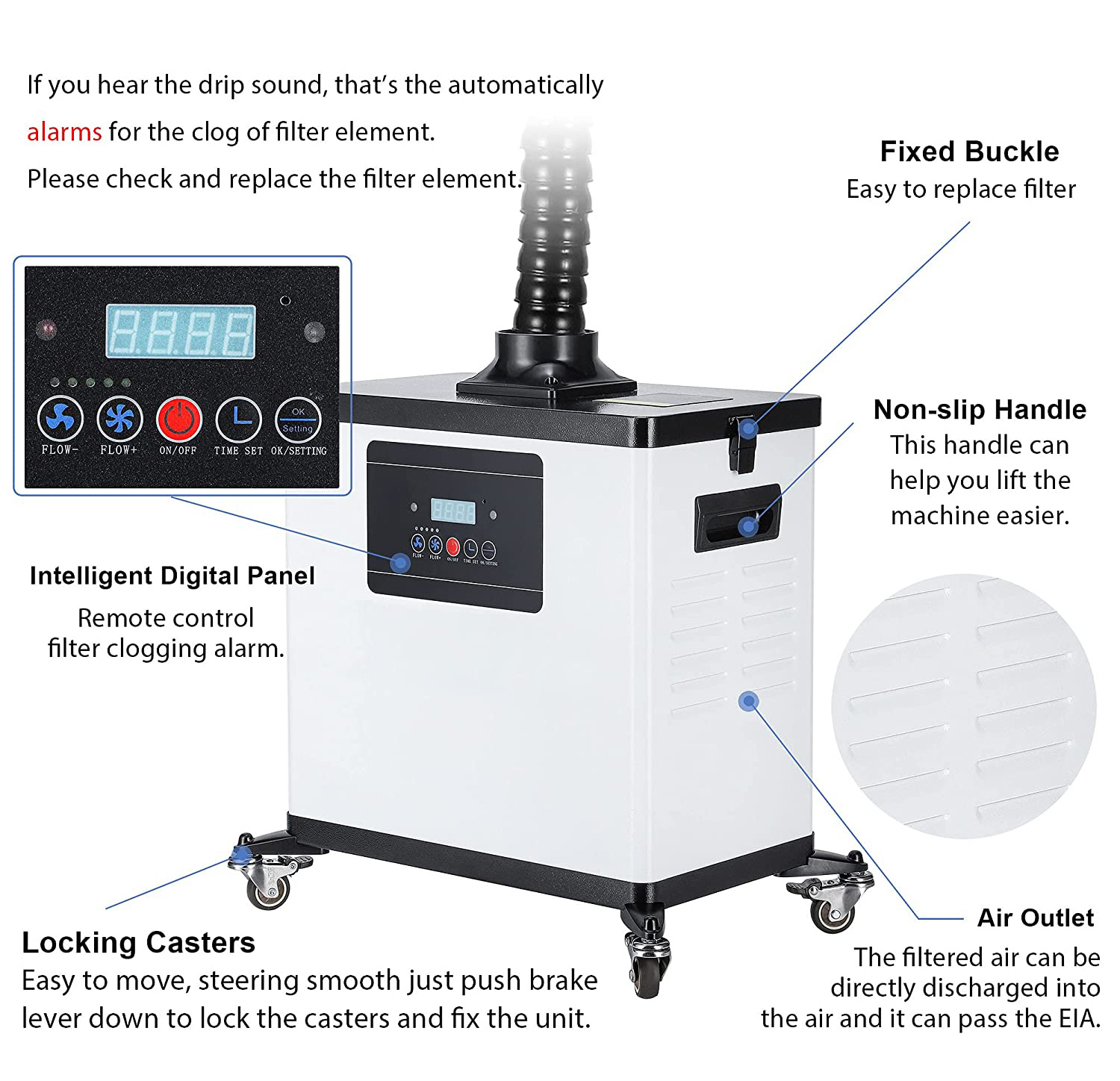

Product Highlight:


Intelligent Digital Display Control
Three Layers Filtering Design
Filter Clogging Alarm system

Technical Details:


ModelF6001DF6002D
Power80W200W
Noise<55 dB<55 dB
Systemic Flow235 m3/h2x 150m3/h
Air Velocity17 m/s2 x 11 m/s
Filter SizePre-filter: 365 x 175 x 6mm
Middle Filter 365 x 175 x 55mm
Main Filter 385 x 195 x 250mm;
Pre-filter: 365 x 175 x 6mm
Middle Filter 365 x 175 x 55mm
Main Filter 385 x 195 x 250mm;
Gross Weight16kg17kg
Cabinet Dimensions425 x 250 x 410mm425 x 250 x 410mm
Package DimensionsBody: 54 x 35 x 58cm
Arm Kits:42 x 41 x 20cm
Body: 54 x 35 x 58cm
Arm Kits: 46 x 42 x 20cm
Filtering Efficiency0.3um 99.97%
Electrical110V / 220V
Filter Layer3 Layers
Remote ControlIncluded
Arm DimensionDiameter 75mm x Length 140cm
Packing ListMain Unit: 1 piece
Power Cord: 1 piece
Arm & nozzle: 1 set
Operation Instruction: 1 piece
Pre-Filter: 5pc (4pieces inside machine)
Middle Filter: 1pc (Included in machine)
Main Filter: 1pc (Included in machine)



Applications & Features:

Our fume purifier is a purification equipment mainly for industrial application,which can be used in manual soldering,solder pots, soldering robot,soldering station, and other industrial welding and laser processing to collect and purify the fumes generated during the production,and protecting the environment and operation's health. Fume extraction systems are also useful for extracting potentially noxious fumes from the use of certain adhesives and chemicals on the workbench,eyelash extensions,dye hair, nail art.

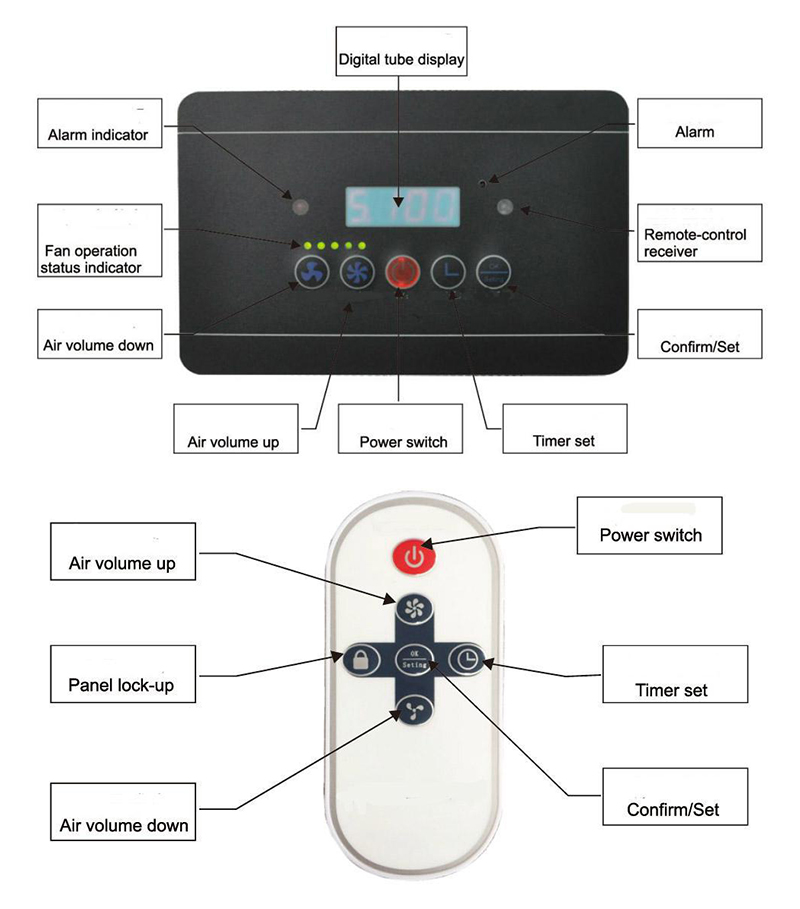

1.With the intelligent control panel and digital display, operation becomes easy and simple;
2.With the remote control, you can control the machine from a distance;
3.Truly sensitive and effective Filter Clogging Alarm system reminds you to replace the filter in time;
4.Wheels with brake make the movement easy and flexible.


Additional Information:


Available Filter EfficienciesInitial Filter
For filter large particles of above 50µm
Second Filter
For filter particles above 0.3µm, filtering efficiency rate 99.97%.
HEPA Filter
For dust particles above 0.3µm, filtering efficiency rate 99.97%,
For remove harmful gases, filtering efficiency rate above 95%;
Filter Replacement PeriodPre-Filter: 1 week to 1 month
Middle Filter: 3 months
Main Filter: 6 months
Anyway, you can adjust it as per the exact pollutants generated in different Environment;

Good Quality


Our products go from design to production to final product. Each working procedure is strictly controlled, we make really effective fume extractors only. The filtering efficiency of our fume extractors has reached the highest standard in the world.


OEM & ODM Services

We can offer OEM & ODM services. Welcome to talk with us in details.
