Flexible customization and quick installation of LED soft modules SR-A series
Detailed product introduction document:PH2.5-PH4 Indoor Soft Module SR-A Series.pdf
Product Description:
Soft modules are usually made of lightweight materials with a thin overall thickness. This design not only reduces the weight of the product, but also facilitates transportation and installation. The thin and light characteristics make it flexible for use in space-constrained environments, such as some high-end places that need to maintain a low-profile appearance.
Product Parameters:
LED Indoor Soft Module SR-A Series (PH2.5-PH4) | |||
Module model (mm) | SR-A 2.5 | SR-A 3 | SR-A 4 |
Module point spacing (mm) | 2.5 | 3.076 | 4 |
Module Size (mm) | 320x160 | 320x160 | 320x160 |
Module pixel | 128x64 | 104x52 | 80x40 |
Density pixels (dot/㎡) | 160000 | 105625 | 62500 |
Lamp bead model | SMD1515 | SMD2020 | SMD2020 |
Brightness (cd/㎡) | ≤800 | ≤800 | ≤800 |
Refresh rate (Hz) | 3840 | 3840 | 3840 |
Scanning mode | 1/32sweep | 1/26sweep | 1/20sweep |
Module weight (kg) | 16.5 | 16.5 | 16.5 |
Module thickness (mm) | 10 | 10 | 10 |
Service life | ≥100,000 hours | ||
Pixel composition | RGB 3-in-1 | ||
Grayscale | 14bit | ||
Maximum power (W/㎡) | 1000-1200W | ||
Average power (W/㎡) | 400-600W | ||
Eliminate ghosting | Equipment | ||
input voltage | AC100~240V 50/60HZ | ||
Module input voltage | DC4.7~5V±0.2V | ||
Environment | Temperature -10~40℃ Humidity 10%-90% | ||
Installation | Magnetic suction/box installation |
Product Advantages:
Product Areas:
1.Advertising Media.
2.Exhibition Display.
3.Commercial Display.
4.Government and Enterprise Image.
5.Cultural Tourism Real Estate.
6.Entertainment Culture.

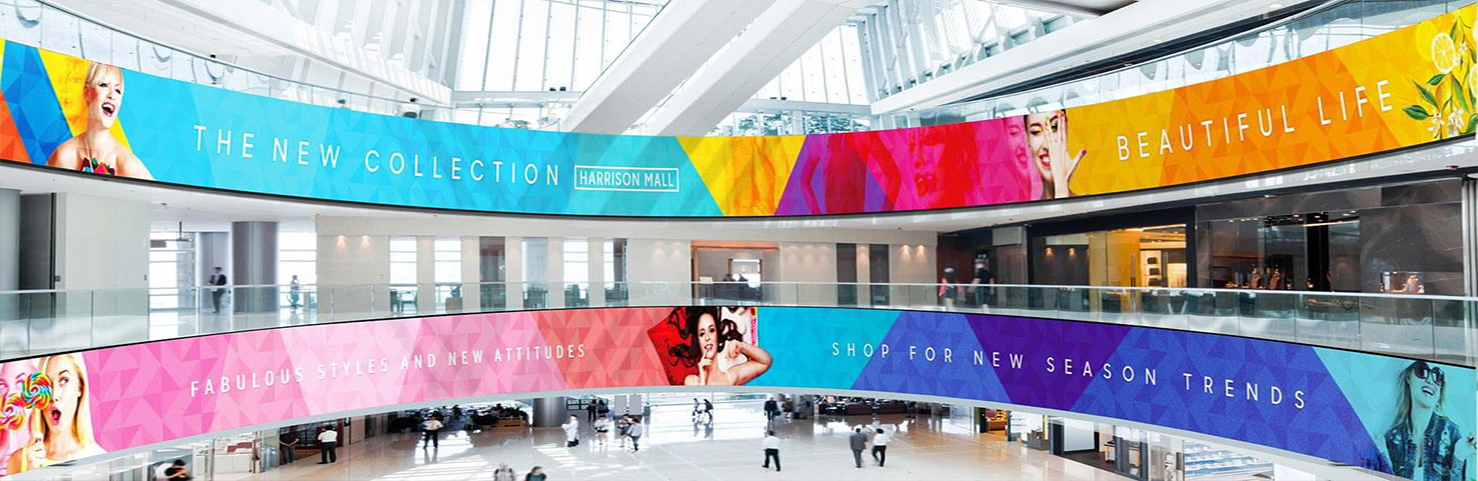

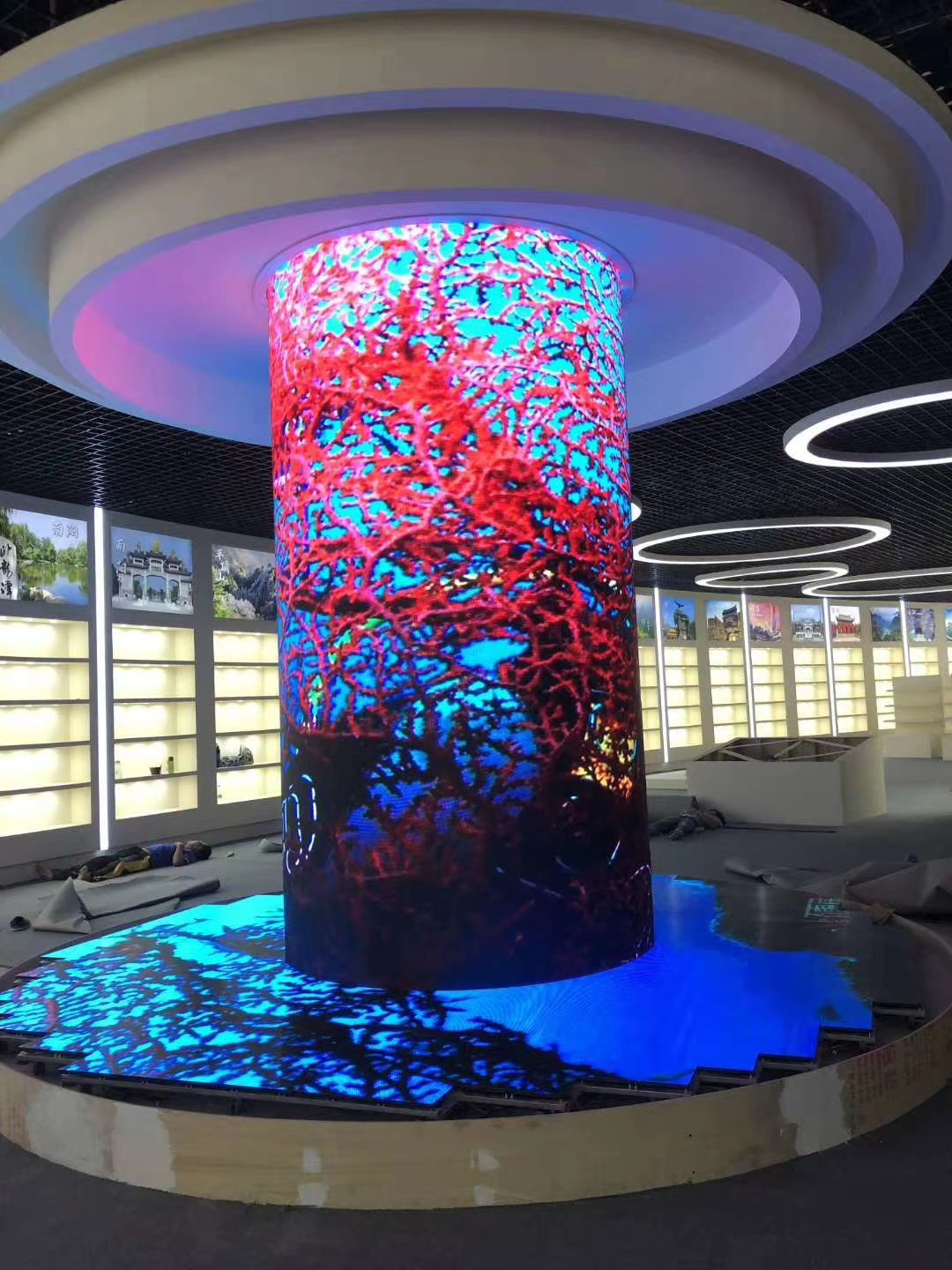

Product Cases:
FAQ:
![]() |
