Brand Name: | Highmight |
Model Number: | HMT-SA-P4 |
Certification: | CE FCC RoHS |
Place of Origin: | Guangdong, China |
MOQ: | >=1 square meters |
Price: | $343/square meters |
Payment Terms: | T/T |
Delivery Time: | 7-35 work days |
Packaging Details: | Flight case/wooden case/carton case packing |
Name: | Flexible LED Video Display |
Color: | Full Color |
IP Grade: | IP65 |
Input Voltage: | AC100~240V 50/60HZ |
Lifespan: | 100,000 hours |
Power Consumption: | 550-600W |
Refresh Rate: | 1920Hz |
Screen Size: | Customized |
Warranty: | 2 years |
Working Temperature: | -10~40℃ |
Gray Scale: | 14bit |
Module size: | 320*160 |
Company Info. |
High Might Technology Co., Ltd. |
View Contact Details |
Product List |

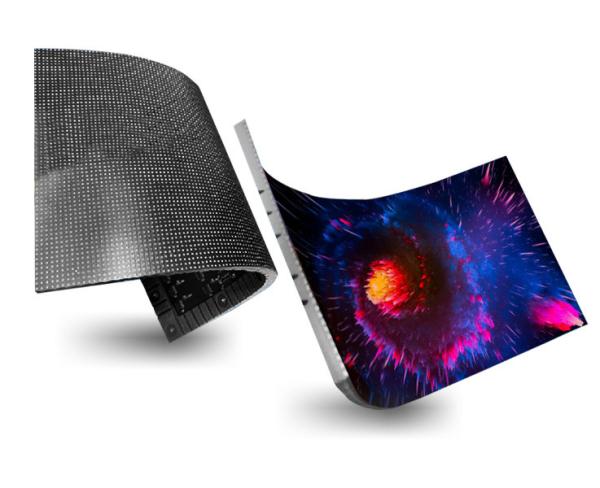

Indoor Outdoor HMT-SA-P4 Highly Accurate Brightness & Color Consistency flexible led screen
Flexible led screen HMT-SA series
Applicable scenarios :
1. commercial real estate
2.Smart city scene
3.Cultural tourism
4. commercial exhibition hall
Features:
1. Ultra high definition video effect with see-through high refresh rate.
2. High refresh rate and gray scale ensures the picture quality remains seamless.
3. Outdoor fixed installation, resistant to various working conditions
4. It delivers an image which is super subtle and without getting tired after a longtime watching
5. Super High Refresh Rate, High Frame Frequency, No Ghosting & Twisting or Smear
6. We have experienced technology enginners team and sales team to answer and solve all your concerned matters.
7. Convenient installation method, convenient and fast: The cabinet adopts a quick-lock structure design, which makes installation convenient and fast
8. Support front and rear maintenance to reduce maintenance costs: the playback screen appears in a suspended style, which will not affect the building's lighting and vision.
Product Details
Models: SA
flexible led screen (HMT-SA series) | ||||||
models | HMT-SA1.5 | HMT-SA2 | HMT-SA2.5 | HMT-SA3 | HMT-SA4 | HMT-SA5 |
Pixel Pitch (mm) | 1.5686 | 2 | 2.5 | 3.076 | 4 | 5 |
Module size (mm) | 320x160 | 320x160 | 320x160 | 320x160 | 320X160 | 320x160 |
Module pixel | 204x102 | 160x80 | 128x64 | 104x52 | 80x40 | 64x32 |
Pixel Density (dot/㎡) | 406406 | 160x80 | 160000 | 105625 | 62500 | 40000 |
LED lamp type | SMD1212 | SMD1515 | SMD1515/SMD2121 | SMD1515/SMD2121 | SMD2121 | SMD2121 |
Brightness (cd/㎡) | 500-800 | 500-800 | 500-800 | 500-800 | 500-800 | 500-800 |
Refresh rate (Hz) | 1920 | 1920 | 1920 | 1920 | 1920 | 1920 |
Scan mode | 1/51 Scan | 1/40 Scan | 1/32 Scan | 1/26 Scan | 1/20 scan or 1/40 scan. | 1/16 Scan |
Module thickness (mm) | 10 | 10 | 10 | 10 | 10 | 10 |
Lifespan | ≥ 100,000 hours | |||||
Pixel composition | RGB three-in-one | |||||
grey scale | 14bit | |||||
Maximum power (W/㎡) | 600-800W | |||||
Conventional power (W/㎡) | 400-600W | |||||
Eliminate Shadows | equipment | |||||
input voltage | AC100~240V 50/60HZ | |||||
Module input voltage | DC4.7~5V±0.2V | |||||
Working temperature and humidity | Temperature-10 ~ 40℃ and humidity-10% ~ 90% | |||||
Module weight (kg/㎡) | 16.5kg/㎡ | |||||
Installation | Magnetic installation / Cabinet installation |
Application:
![]() |
