SR-M series LED soft module solutions with rich colors, high brightness and 140° bending

Categories Flexible LED Screen
Brand Name: Highmight
Model Number: Holographic led screen
Certification: CE FCC RoHS
Place of Origin: Guangdong, China
MOQ: >=1 square meters
Price: Customized price
Payment Terms: T/T
Delivery Time: 7-35 work days
Packaging Details: Flight case/wooden case/carton case packing
Product name: Holographic Advertising Display
Pixels: Customized
Screen dimension: Customized
Color: full color
Application: Live Events Led Display,Outdoor Advertising Led,Adervertising,Outdoor,Indoor Stage
Usage: Outdoor,Indoor
Warranty: 2 Years
Life span: 100000 Hours
Refresh rate: 1920/3840Hz
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

SR-M series LED soft module solutions with rich colors, high brightness and 140° bending

SR-M series LED soft module solutions with rich colors, high brightness and 140° bending


Detailed product introduction document:PH2.5-PH4 Indoor Soft Module SR-M Series.pdf


Product Description:

The soft module adopts magnetic design, which is convenient for quick splicing and installation. This design can flexibly adjust the size and proportion of the display screen according to needs to meet the requirements of different occasions. At the same time, the magnetic design is also convenient for later maintenance and replacement, reducing maintenance costs.


Product Parameters:

LED Indoor Soft Module SR-M Series (PH2.5-PH4))
Module model (mm)SR-M 2.5SR-M 3SR-M 4
Module point spacing (mm)2.53.0764
Module Size (mm)240x120240x120240x120
Module pixel96x4880x4060x30
Density pixels (dot/㎡)16000011111162500
Lamp bead modelSMD1515SMD2020SMD2020
Brightness (cd/㎡)≤800≤800≤800
Refresh rate (Hz)384038403840
Scanning mode1/32sweep1/26sweep1/20sweep
Module weight (kg)14.514.514.5
Module thickness (mm)101010
Service life≥100,000 hours
Pixel compositionRGB 3-in-1
Grayscale14bit
Maximum power (W/㎡)1000-1200W
Average power (W/㎡)400-600W
Eliminate ghostingEquipment
input voltageAC100~240V 50/60HZ
Module input voltageDC4.7~5V±0.2V
EnvironmentTemperature -10~40℃ Humidity 10%-90%
InstallationMagnetic suction/box installation

Product Advantages:

1.High refresh rate: Displays smooth and natural images.
2.Rich colors: Provides realistic color performance.
3.Low power consumption: Low operating cost, environmentally friendly and energy-saving.
4.Silent operation: Noise-free design, suitable for indoor use.
5.High contrast: The image has a more layered feel.

Product Areas:

1.Advertising Media.

2.Exhibition Display.

3.Commercial Display.

4.Government and Enterprise Image.

5.Cultural Tourism Real Estate.

6.Entertainment Culture.

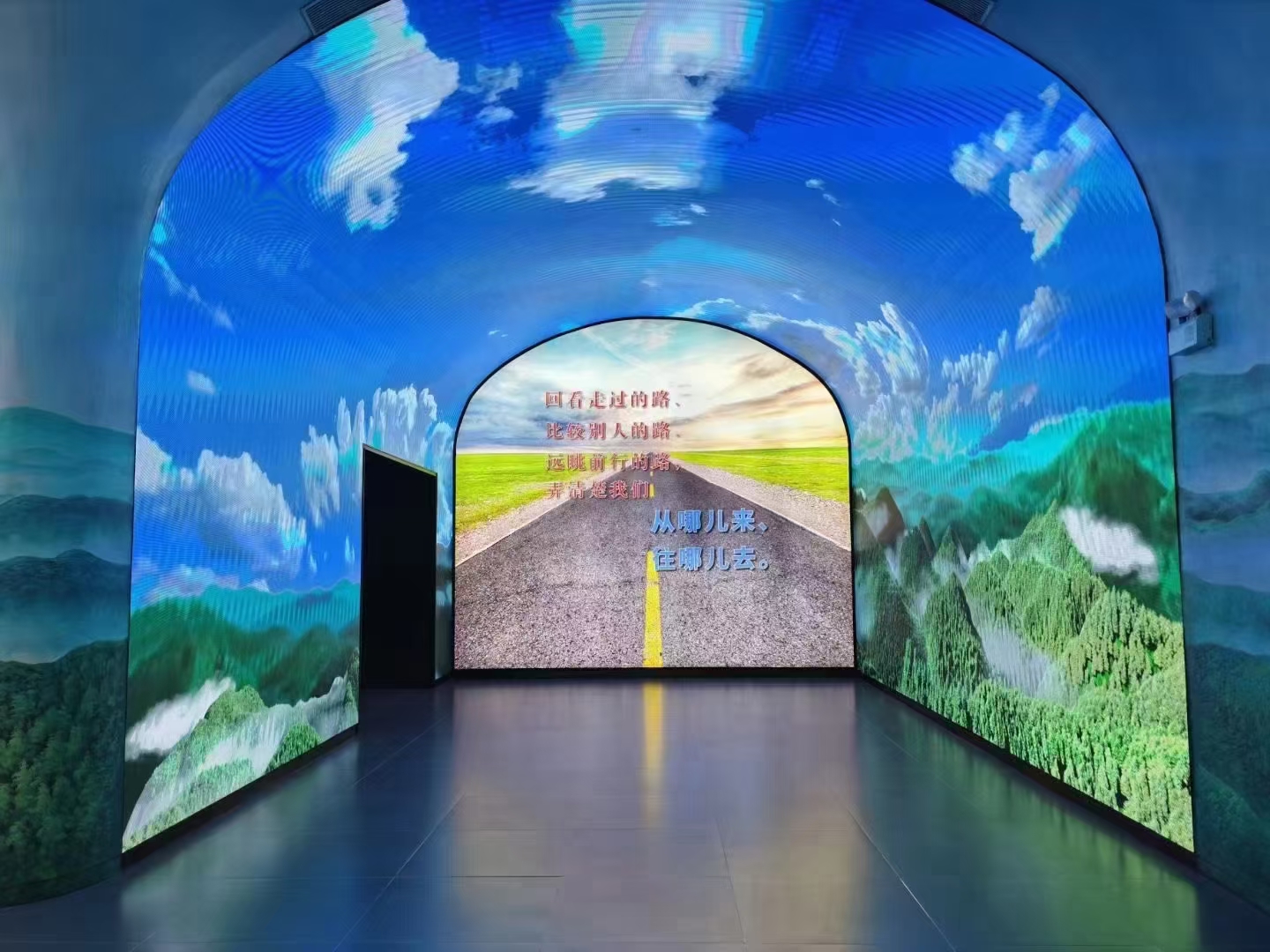

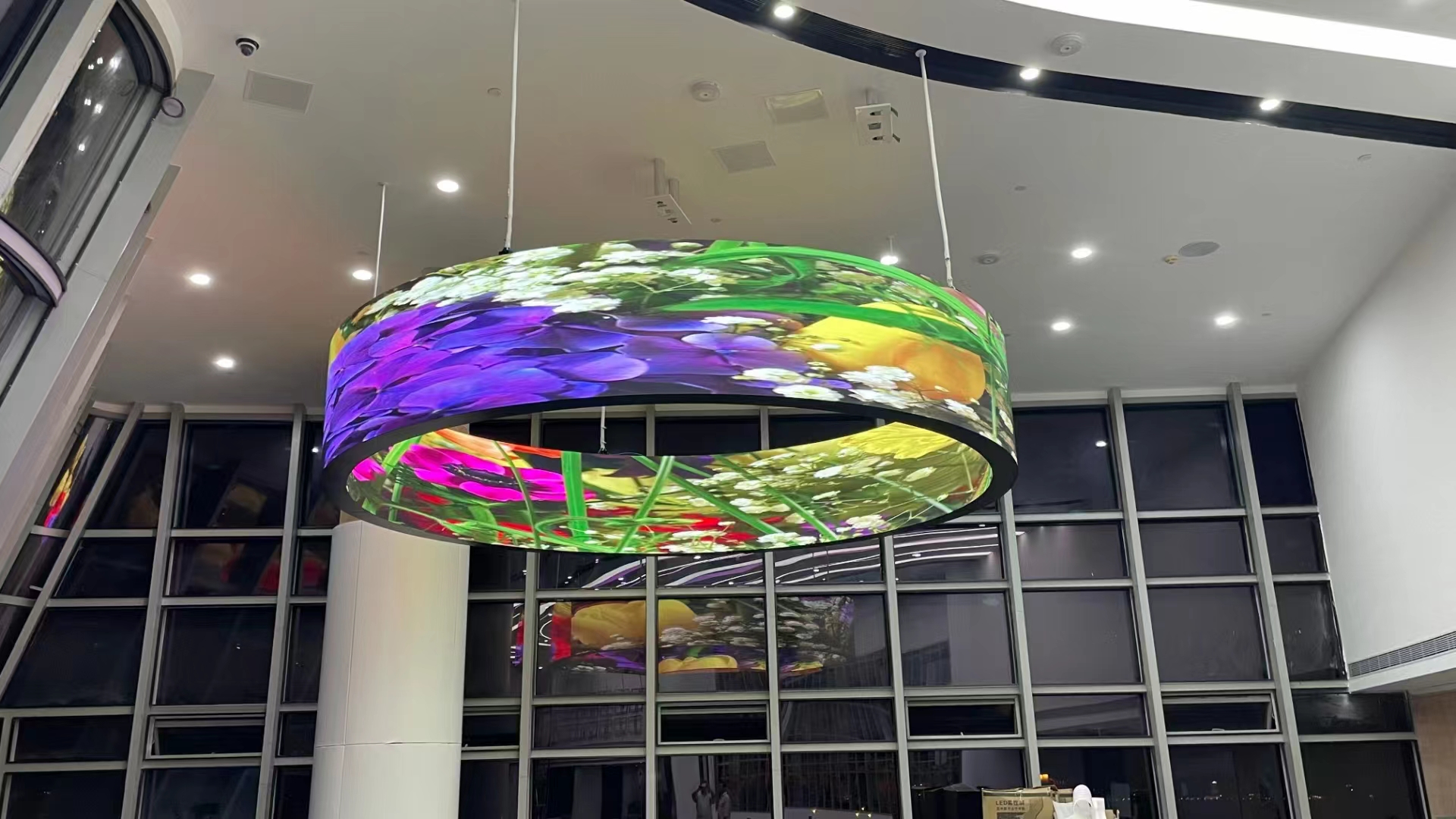

Product Cases:


FAQ:

Q1: Is it difficult to install?
A1: The soft module adopts modular design, which is easy to install and only requires simple splicing and fixing.
Q2: Can it be used outdoors?
A2: Yes, many LED soft modules are waterproof and dustproof, suitable for outdoor use.
Q3: Can the size be customized?
A3: Display screens of different sizes and shapes can be customized according to customer needs.
