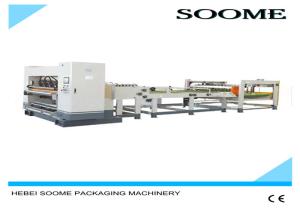

Computerized Corrugated Cardboard Cutting Machine Continuous Easy Stacking

Computerized Corrugated Cardboard Cutting Machine Continuous Easy Stacking

Summarize

The slitter-cutter machine is one of the important unit of the corrugated cardboard production line. It is a mechanical equipment for cutting the finished product of cardboard. Its technical performance and equipment adjustment not only affect the overall production speed of the tile line, but also play a vital role in the size accuracy and external quality of cardboard and cartons. It is suitable for crosscutting, whiteboard, kraft paper, paper plastic composite, plastic hard sheet and other reel materials. The feature uses computer control (automatic length, number alarm, automatic stop, counting), servo motor (step motor) feed, rear discharge material, magnetic powder brake, flat knife cut off and leveling, feed pressure roller (air pressure), automatic deviation (B) (can be selected according to different materials), frequency conversion speed regulation; external function: cutting printed material Material photoelectric tracking (G), which can be selected from different materials.

Main Technical Parameters

1. Design speed:120 m/ min

2. Effective width:1600-2200 mm

3. Length of cutting cardboard:500-999 mm,precision of cutting carboard:±1mm

4. Computer system to keep order. man- machine conversation system NC. automatic adjust cutting speed by carboard specification and maching. the screen display various production message. can consult modification , superation and cancel order during running machine.

5. High quality servo motor, the sever drive system import from Gemany.

6. Transmission system adopts oil pump auto-cye lubricate.

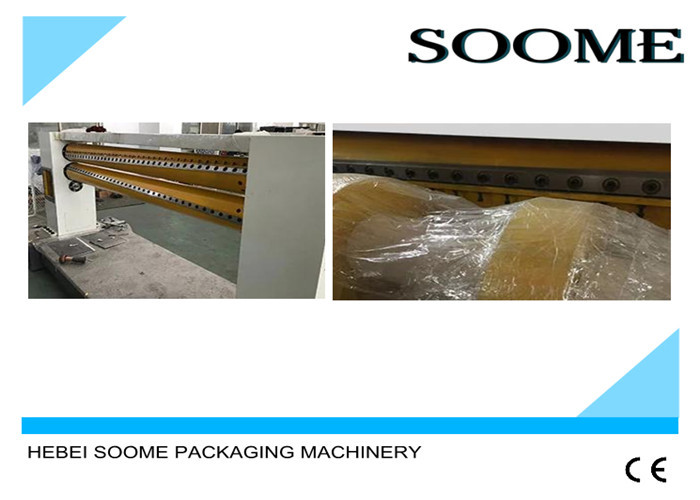

7. Exact and adjustable no gap gear assure knife-edge joggle exactly. incision quality good, beeline degree high, protect knives.

8. Single face conveyor machine :max.stacking height 2000mm, max stacking length 1800mm, design speed: 100m/min.

9. Conveyor system after the slitter and cutter is applied to delivery the board the board on two directions, for rise efficiency and easy stacking.

10. It will be more suitable for large or moderate manufactories of offset printing box.
