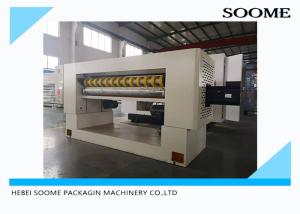

Automatic Paper Board Cutting Machine AC Servo Motor Digital Cutting Machine

Automatic Paper Board Cutting Machine AC Servo Motor Digital Cutting Machine

Technical parameter

Working width: 1800mm

Max. cutting speed:200m/min

Cutting cardboard:max. 9999mm min. 500mm

Cutting precision:±1mm in stable speed

Cardboard: original paper: ＜360g/ liner paper＜200g/

thickness3－14mm moisture content ＜10％

min. width warping1000mm ＜30mm

Comparative moisture content:20％～90％ comparative temperature:5℃－50℃

Steam pressure:0.6－0.9MPa

Cutting cardboard blade shaft diameter:upper￠ 224 mm low￠ 228 mm

Guiding cardboard shaft diameter: front upper ￠165mm(sun wheel) front lower￠135mm

Back upper ￠165mm back lower￠135mm

Electricity :voltage 440V frequency 50Hz current 80A

Total power:32.58kw

Dimension:3000mm×1600mm×1500mm(length x width x height)

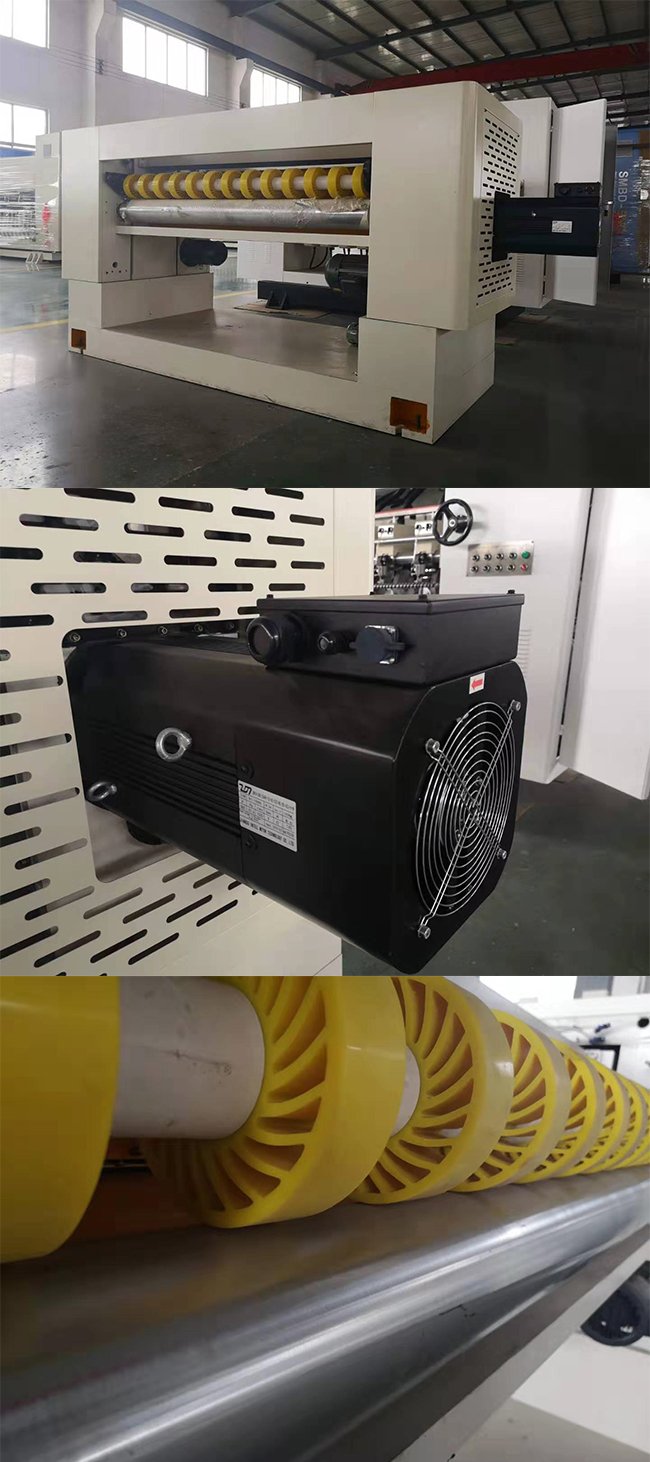

Double Layers Computer Rotary Cutting Off Machine(SHQ2-1800 type,Double layers rotary cutting off blades, adopt AC servo motor from Italy. Multiple orders processing function, can change manually or automatically. Feeding and outputting board by frequency control,automatic tracking the speed of corrugation line, cutting off length 400-9999mm. PLC System is from Taiwan.

Hebei SOOME Packaging Machinery Co., Ltd. Specializing in the manufacturer and sales of corrugated box machinery. Since its establishment in 1995, it is located in China“Dongguang”,Cangzhou city.

In order to speed up the production efficiency, there are three production workshops with a plant area of 20000 ㎡, 108 employees, production Capacity of 1800 sets per year.

We put our hearts in our mind to make no effort equipping each product.Especially we developed several new high speed automatically machines which improved the competition ability of our customers,also got the recognition of thousands packing companies from domestics and overseas based on the principle of honest and trustworthy.

Our products find a good sale in Argentina,Russia,India,Italy,Germany,Egypt,Vietnam,Spain,Iran,Turkey and so on.Anyone who cooperate with us is proud of our good after service and open-minded attitude.

Our goal is simple: to sell the best machines at the best prices, and provides industry-leading customer service. We personally get to know each of our customers, and we know how to discover the most valuable part of our business is SOOME packaging, to help others achieve their goals.
