| Categories | Container Lifting Spreader |
|---|---|
| Brand Name: | OUCO |
| Model Number: | OUCO-20/40-CS |
| Certification: | CCS/BV/ABS |
| Place of Origin: | JIANGSU |
| MOQ: | 1 |
| Price: | negotiation |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 sets per year |
| Delivery Time: | 45 days |
| Packaging Details: | Shipping Container/Wood Crate/nude |
| Material: | Q345B |
| Lifting capacity: | 35-40t |
| Color: | Customer Requirement |
| Usage: | Unloading Cargo |
| After-sales Service Provided:: | Engineers available to service machinery overseas |
| Condition: | New |
The electric series are crane spreaders designed to handle 20-40ft / 20-40-45ft ISO containers. The double girder design is structurally based on the ship-to-shore crane spreaders and is made out of high-quality steel in order to reduce the weight of the spreader.
The robust and reliable telescopic system consists of two electric motors powering two timing belts, equipped with shock absorption through spring washer packages. The twistlocks system works with one electrical
motor per end beam which powers a rotating system. This system is connected with the different “quick exchange floating twistlocks“ by a bar.
Electric Spreaders are available as single-, twin- and separating twin-lift version.
General Arrangement:
Technical Specifications:
| For Operation With ISO Standard 20' Container | For Operation With ISO Standard 40' Container | ||
| Rated Lifting Load | 35t | Rated Lifting Load | 40t |
| Self-Weight | 2t | Self-Weight | 3.5t |
| Allowable Load Eccentricity | 10% | Allowable Load Eccentricity | 10% |
| Spring Stroke | 100mm | Spring Stroke | 100mm |
| Ambient Temperature | -20℃~ +45℃ | Ambient Temperature | -20℃~ +45℃ |
| Twistlock Mode | ISO Floating Twistlock, Driven by a Automatic Spring | Twistlock Mode | ISO Floating Twistlock, Driven by a Automatic Spring |
| Flippers Device | No Power, Fixed Flippers | Flippers Device | No Power, Fixed Flippers |
| Application | Portal Crane, Gantry Crane, Crane in the Plant | Application | Portal Crane, Gantry Crane, Crane in the Plant |

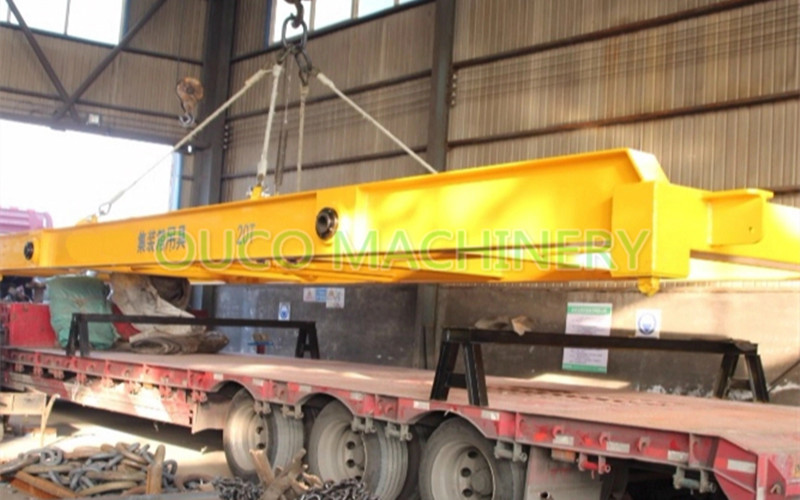

Package and Shipping from OUCO factory:
|
