Categories | Container Lifting Spreader |
---|---|
Brand Name: | OUCO |
Model Number: | OUCO-CS-01 |
Certification: | ISO9001 |
Place of Origin: | China |
MOQ: | 1 set |
Price: | negotiation |
Supply Ability: | 200 sets per year |
Delivery Time: | 7 days |
Packaging Details: | Shipping Container/Wood Crate/nude |
Rated lifting load: | 35-40t |
Application: | Portal crane gantry crane plant crane |
Color: | Customer Requirement |
Type: | container spreader |
Condition: | new |
After-sales Service Provided:: | Engineers available to service machinery overseas |
Warranty: | 12 months |
Port High Efficiency Lifting Semi-Automatic 20 40 feet Container Spreaders
Product Description
Technical Parameters
For Operation With ISO Standard 20' Container | For Operation With ISO Standard 40' Container | ||
Rated Lifting Load | 35t | Rated Lifting Load | 40t |
Self-Weight | 2t | Self-Weight | 3.5t |
Allowable Load Eccentricity | 10% | Allowable Load Eccentricity | 10% |
Spring Stroke | 100mm | Spring Stroke | 100mm |
Ambient Temperature | -20℃~ +45℃ | Ambient Temperature | -20℃~ +45℃ |

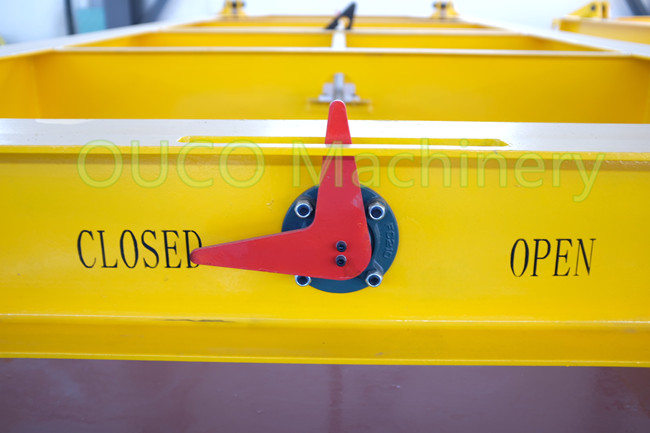

Twistlock Mode | ISO Floating Twistlock, Driven by a Automatic Spring | Twistlock Mode | ISO Floating Twistlock, Driven by a Automatic Spring |
Flippers Device | No Power, Fixed Flippers | Flippers Device | No Power, Fixed Flippers |

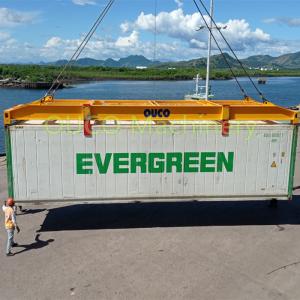

Application | Portal Crane, Gantry Crane, Crane in the Plant | Application | Portal Crane, Gantry Crane, Crane in the Plant |
Genernal Arrangement

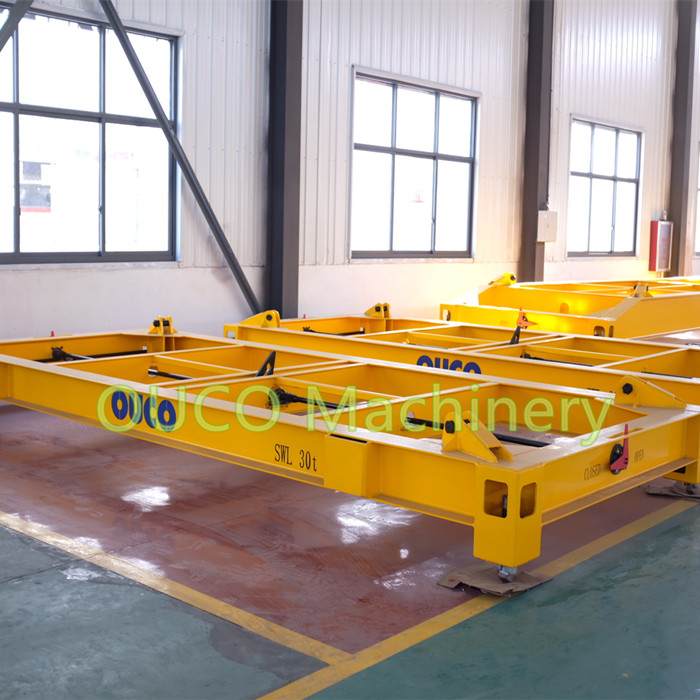

Product Details
![]() |
