| Categories | Container Lifting Spreader |
|---|---|
| Brand Name: | OUCO |
| Model Number: | OUCO-40-40-SCS |
| Certification: | ISO9001 |
| Place of Origin: | Jiangsu. China |
| MOQ: | 1 piece |
| Price: | negotiation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 sets per year |
| Delivery Time: | 15 working days |
| Packaging Details: | Shipping Container/Wood Crate/nude |
| Product name: | ISO Certified 40t Port Crane Spreader, Russian Custom Container Spreader |
| Rated Lifting Load: | 40t |
| Type: | Container Spreader |
| Condition: | New |
| Color: | Support customization |
| After-sales Service Provided: | Provide overseas maintenance services |
| Quality: | High standard |
| Load container type: | 40ft |
The OUCO container spreader is made of high-strength steel and structurally looks like a steel frame, all four corners are equipped with twist locks and guides.
This 40-foot automatic container spreader has a simple structure and higher efficiency, suitable for container lifts of different sizes.
Every container spreader produced by Ou Chao must be overloaded by 25% of the rated load to ensure that the spreader will not have defects such as deformation and cracking after the unloading operation.
We can customize the drive for you, such as pure electric, semi-automatic, hydraulic or mechanical drive.
Notice
Lifting personnel is prohibited.
In the automatic container spreader, the hoisting beam is suspended
on the hoisting wire rope.
When containers of different specifications need to be hoisted, the
container spreader of different specifications is connected with
the hoisting beam with pins, and the size of the connection
interface is uniform, and there is a drive device in each spreader.
The container spreader must be placed on a bracket that keeps the
top of the twistlock off the ground during transportation and
placement.
This is to prevent the top of the twistlock from rubbing against
the ground during lifting, which will block the rotation of the
twistlock and cause damage to the transmission mechanism.
Technical Specification of Container Spreader
| # | For Operation With ISO Standard 20' Container | For Operation With ISO Standard 40' Container | ||
| 1 | Rated Lifting Load | 35t | Rated Lifting Load | 40t |
| 2 | Self-Weight | 2t | Self-Weight | 3.5t |
| 3 | Allowable Load Eccentricity | 10% | Allowable Load Eccentricity | 10% |
| 4 | Spring Stroke | 100mm | Spring Stroke | 100mm |
| 5 | Ambient Temperature | -20℃~ +45℃ | Ambient Temperature | -20℃~ +45℃ |
| 6 | Twistlock Mode | ISO Floating Twistlock, Driven by a Automatic Spring | Twistlock Mode | ISO Floating Twistlock, Driven by a Automatic Spring |
| 7 | Flippers Device | No Power, Fixed Flippers | Flippers Device | No Power, Fixed Flippers |
| 8 | Application | Portal Crane, Gantry Crane, Crane in the Plant | Application | Portal Crane, Gantry Crane, Crane in the Plant |

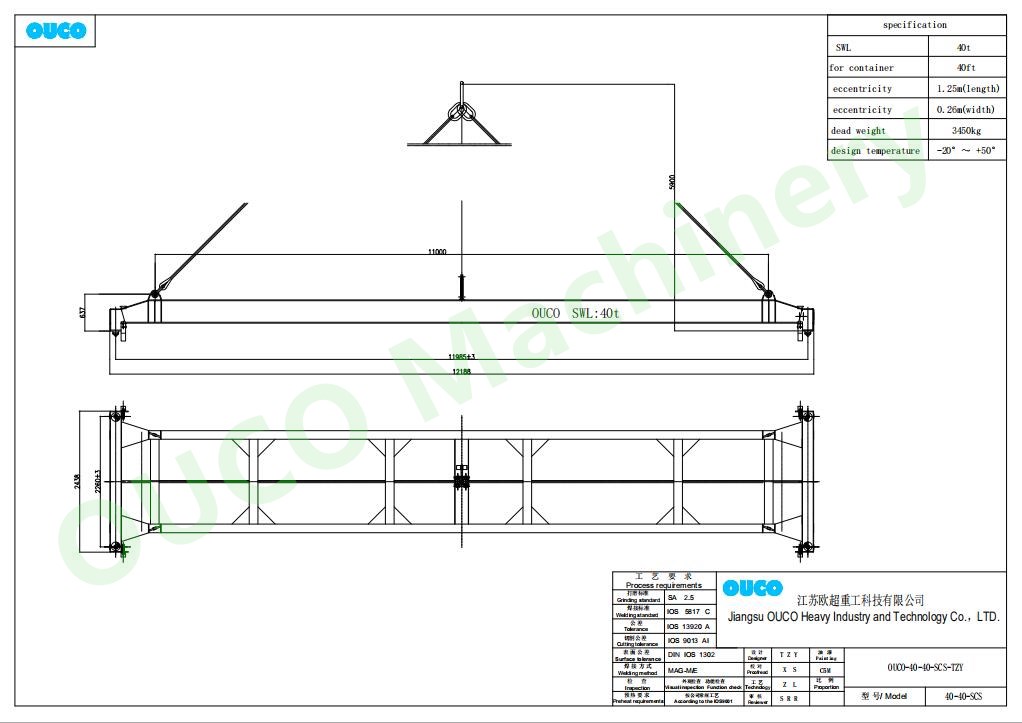

Container Spreader Genernal Arrangement

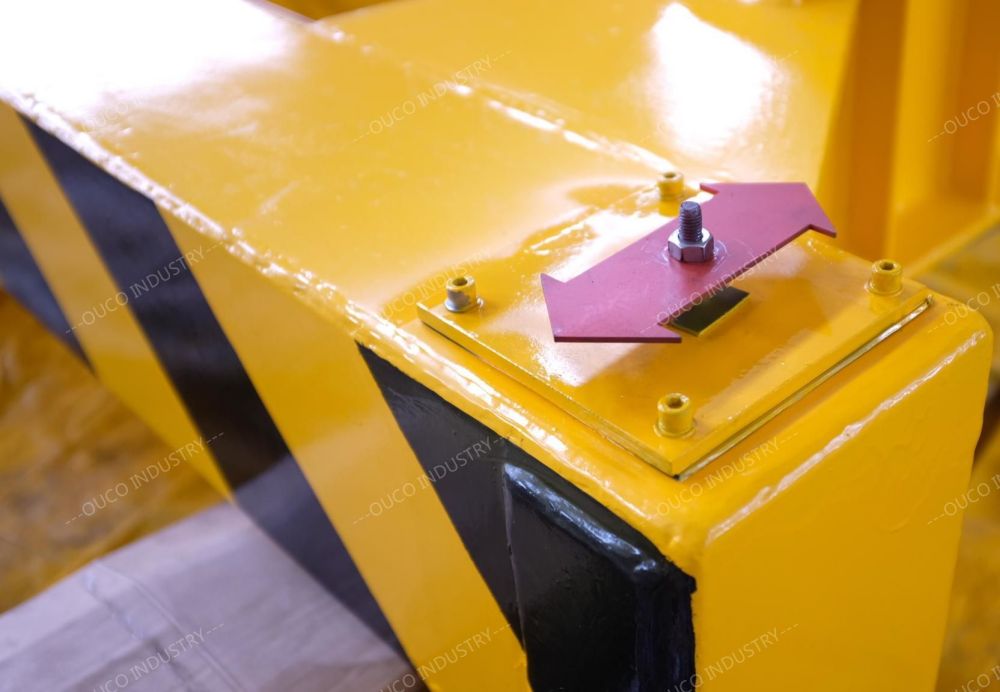

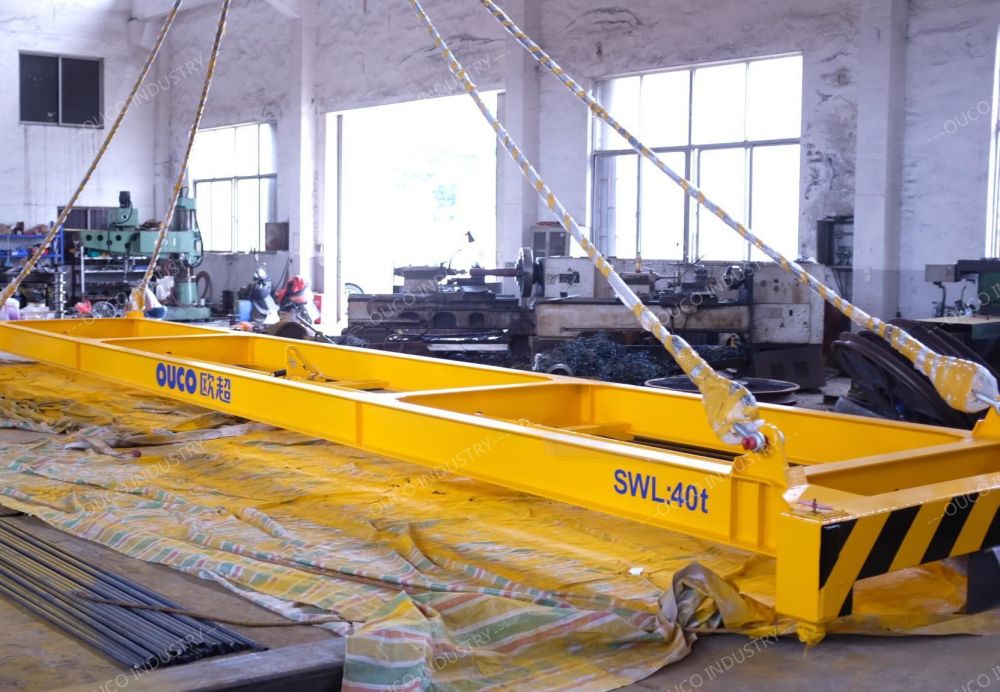

Product Images

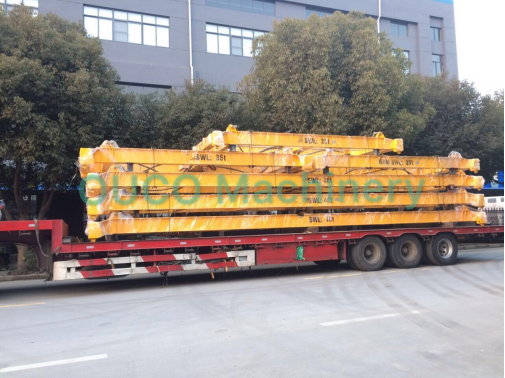

Packing & Delivery
Customer Build
OUCO factory specializes in crane field for over 10 years. OUCO can
design and manufacture any type cranes based on your requirements.
To better ensure the safety of your goods, professional,
environmentally friendly, convenient and efficient packaging
services will be provided.
| Brand | OUCO |
| Spare parts | 1 set ( If needed, more spare parts are available to be provided according to customers' requirements ) |
| Warranty | 1 year( If needed, warranty time is available to be extended according to customers' requirements ) |
| Packing | container |
| Delivery | Standard product : 1month Customized product: 2 months Certified products: 3-4 months |

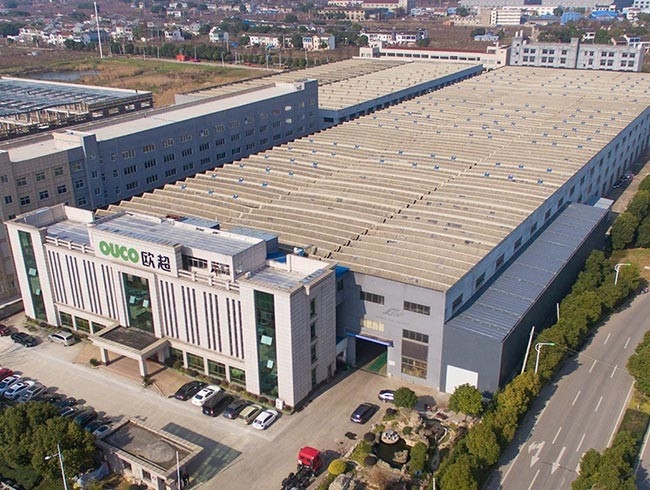

Our Factory
For more details, please feel free to contact us.
|
