Container Spreader ISO Standard With Robust Reliable Telescopic System

Categories Container Lifting Spreader
Brand Name: OUCO
Model Number: OUCO-20/40-CS
Certification: CCS/BV/ABS/ISO/CE
Place of Origin: JIANGSU
MOQ: 1
Price: negotiation
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per year
Delivery Time: 45 days
Packaging Details: Shipping Container/Wood Crate/nude
Material: Q345B
Lifting capacity: 35-40t
Usage: Unloading Cargo
Condition: New
Warranty: 12 monthes
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

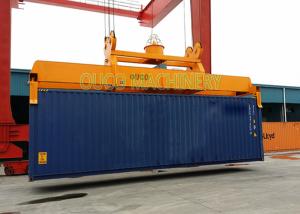

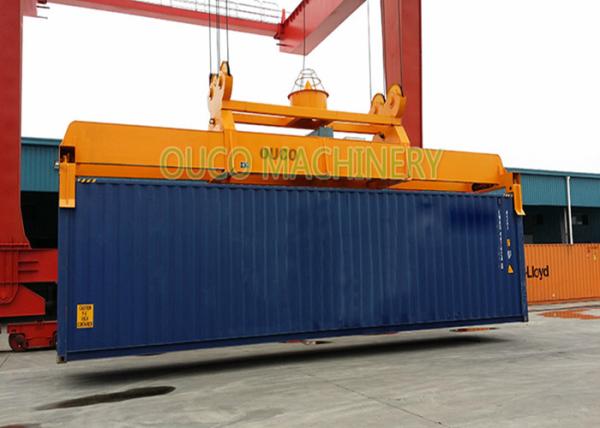

Container Spreader ISO Standard With Robust Reliable Telescopic System

Product description:

The electric series are crane spreaders designed to handle 20-40ft / 20-40-45ft ISO containers. The double girder design is structurally based on the ship-to-shore crane spreaders and is made out of high-quality steel in order to reduce the weight of the spreader.

The robust and reliable telescopic system consists of two electric motors powering two timing belts, equipped with shock absorption through spring washer packages. The twistlocks system works with one electrical
motor per end beam which powers a rotating system. This system is connected with the different “quick exchange floating twistlocks“ by a bar.

Electric Spreaders are available as single-, twin- and separating twin-lift version.

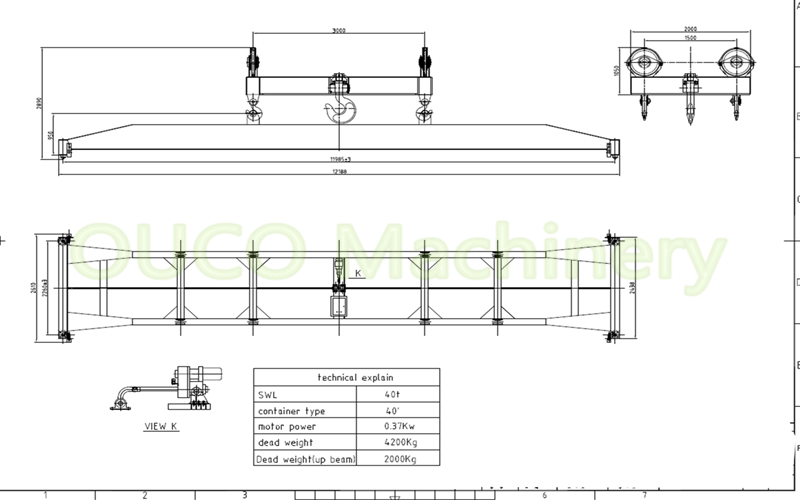

General Arrangement:


Technical Specifications:

For Operation With ISO Standard 20' ContainerFor Operation With ISO Standard 40' Container
Rated Lifting Load35tRated Lifting Load40t
Self-Weight2tSelf-Weight3.5t
Allowable Load Eccentricity10%Allowable Load Eccentricity10%
Spring Stroke100mmSpring Stroke100mm
Ambient Temperature-20℃~ +45℃Ambient Temperature-20℃~ +45℃
Twistlock ModeISO Floating Twistlock, Driven by a Automatic SpringTwistlock ModeISO Floating Twistlock, Driven by a Automatic Spring
Flippers DeviceNo Power, Fixed FlippersFlippers DeviceNo Power, Fixed Flippers
ApplicationPortal Crane, Gantry Crane, Crane in the PlantApplicationPortal Crane, Gantry Crane, Crane in the Plant
Production process at OUCO workshop:



Our factory


With years of experience, the OUCO Marine Group has its own designing team and manufacturing factory, excellent European management who has 47 years of experience on offshore business, which also provides after sales services overseas.
Our production line covers marine and offshore knuckle boom crane, telescopic crane, stiff boom crane, non-standard steel structure, more environmental-friendly operations and also truck crane with the range from 15t to 150t.Port industry which includes cranes, hoppers and grabs.
OUCO Machinery can build any type of handling equipment, according to our own design, but also according to provided designs.
We build products according to any certification requested by the client and are able to build them for working in, and under extreme heavy circumstances for working tempertures of - 40C accordingly.
