2T Lifting Table Transfer Cart Production Logistics Battery Transfer Trolley

Categories Automated Guided Carts
Brand Name: RMK
Model Number: KPX
Certification: CE.ISO
Place of Origin: CHINA
MOQ: 1 set
Price: customized
Payment Terms: T/T
Supply Ability: 300 set per year
Delivery Time: 60 days
Packaging Details: tarp
Name: Transfer trolley
load capacity: 20 T
Wheel material: steel
Brake: Electric motor brakes
Max Capacity: 150ton
Application: Warehouse, Factory, Hospital
Material: Steel
Usage: Transportation
Warranty: 1 Year
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

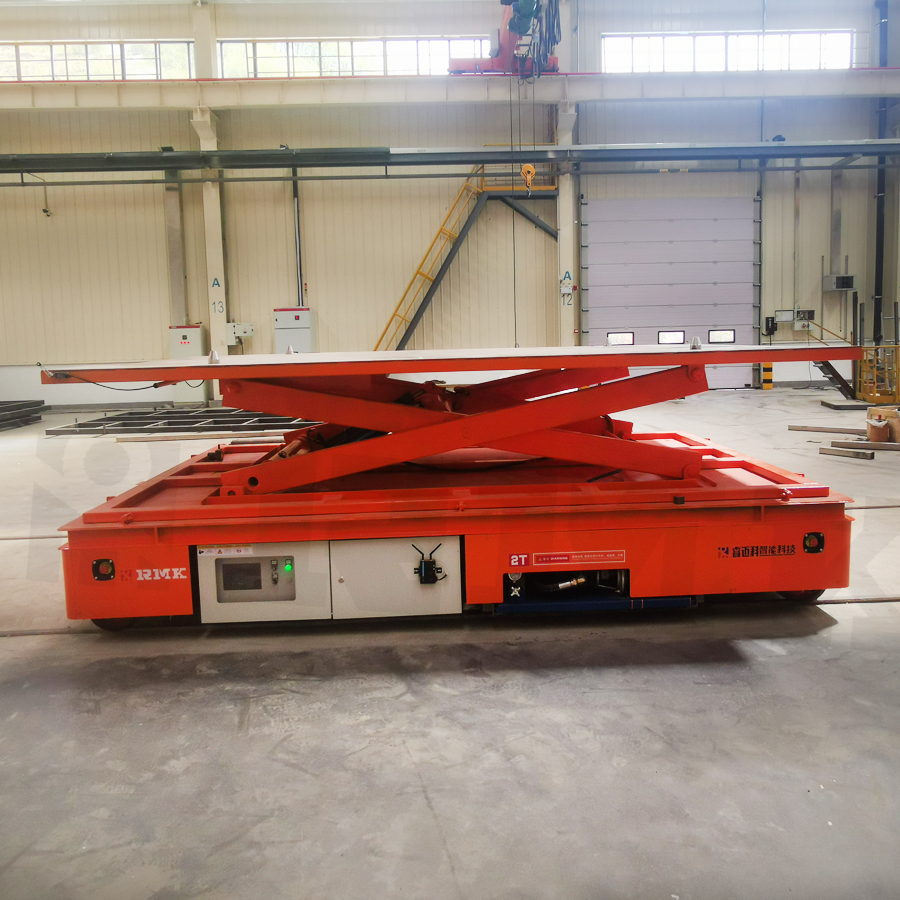

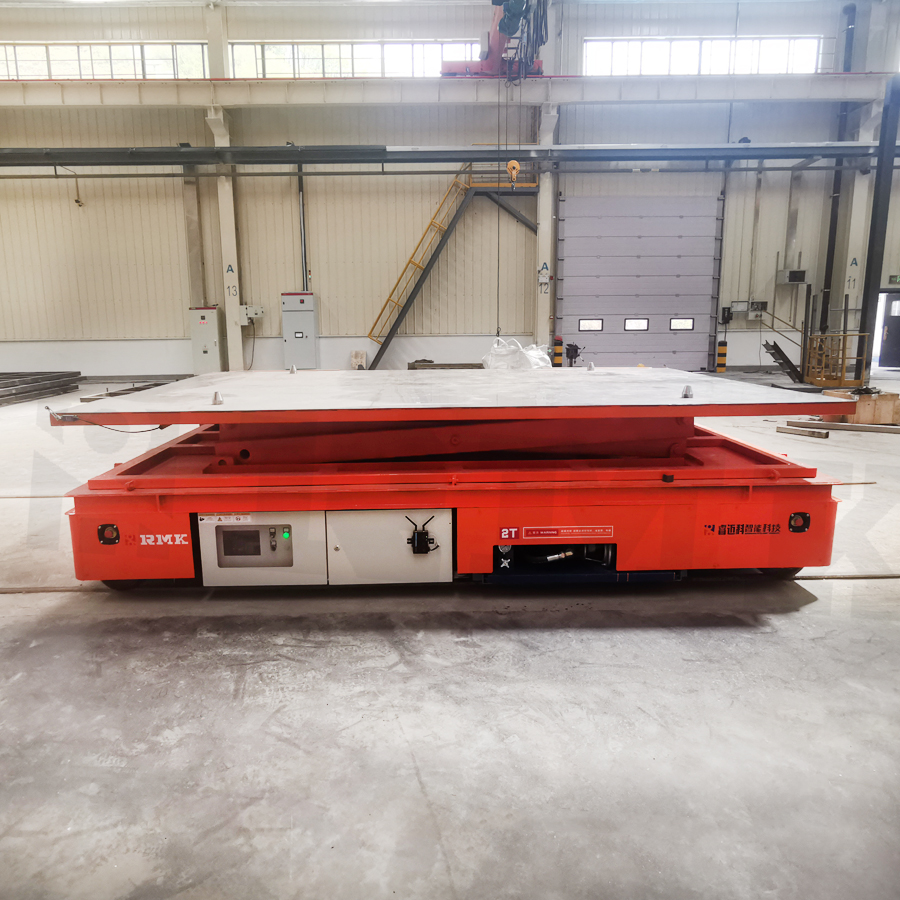

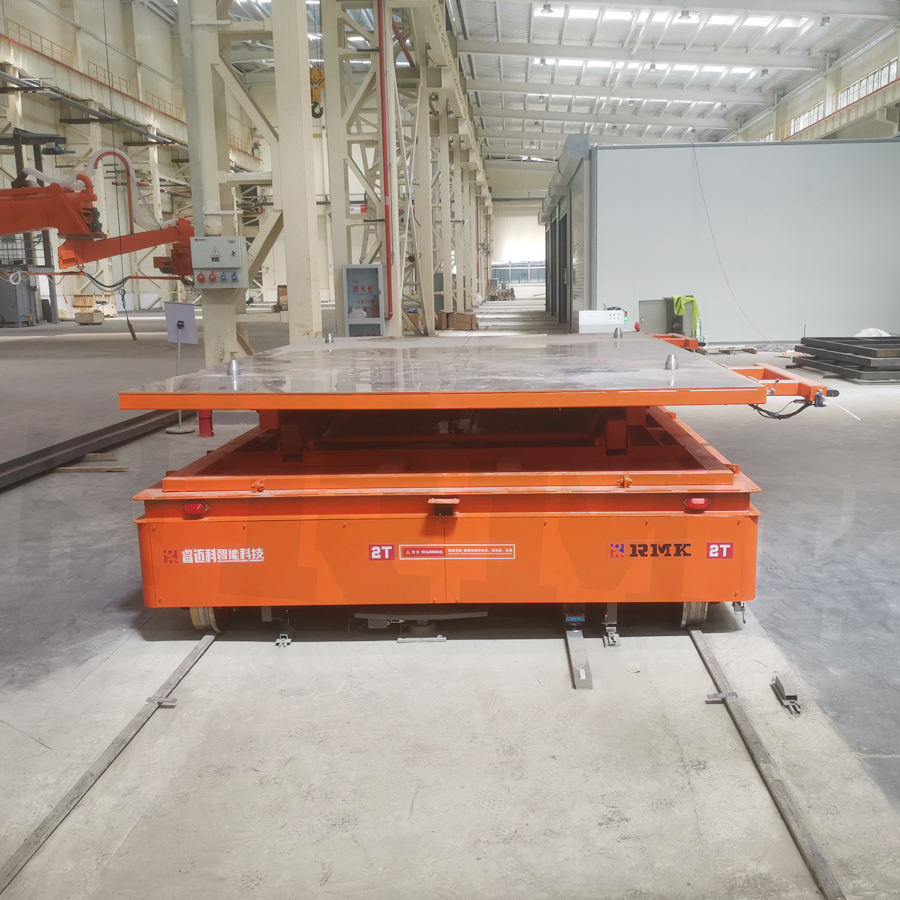

2T Lifting Table Transfer Cart Production Logistics Battery Transfer Trolley

2 tons production logistics automation battery transfer cart


In recent years, production logistics automation has become the development trend of enterprise upgrading. Automatic handling robot is an important tool of logistics automation, which can not only help enterprises improve production efficiency and reduce costs. The storage and handling robot is a new and high technology emerging in modern times, integrating the scientific fields of design mechanics, mechanics, automatic control technology and computer technology. The reason why it is favored by enterprises is that it combines the advantages of people and machines, and is full of adaptability and artificial intelligence


Technical parameters for Battery powered electric transfer carts KPX series
ModelKPX-2tKPX-5tKPX-10tKPX-20tKPX-25tKPX-30tKPX-40tKPX-50tKPX-150t
Rated Load(t)25102025304050150
Table Size(mm)Length2000350036004000450045005000550010000
Width150020002000220022002200250025003000
Height4505005005506006006506501200
Wheel Base(mm)120025002600280032003200380042007000
Rail Inner Gauge(mm)120014351435143514351435143514352000
Wheel Diameter(mm)Ø270Ø300Ø300Ø350Ø400Ø400Ø500Ø500Ø600
Wheel Quantity444444448
Ground Clearance(mm)505050505050505075
Running Speed(m/min)0-250-250-250-200-200-200-200-200-18
Motor Power (Kw)11.21.62.233.54515
Battery Capacity (Ah)180180180180250250300330600
Battery Voltage(V)243648484848484872
Running Time When Full Load4.325.44.8443.53.63.32.9
Running Distance for One Charge (Km)6.58.17.24.84.84.24.343.2
Max Wheel Load (KN)14.425.842.677.794.5110.4142.8174266
Reference Weight(t)2.83.64.25.96.56.87.6827

Features of warehousing AGV unmanned carrier:

1. High degree of automation

The entire cargo handling process does not require manual participation. The staff only need to input the handling requirements at the terminal of the handling robot, and the warehouse automatic handling robot will complete the transportation task along the preset route after receiving the task instruction. The robot consists of a computer, a laser reflector, an electronic control device, etc.

2. High security

The AGV unmanned carrier has the functions of automatic obstacle avoidance and automatic stop when encountering obstacles to ensure that the AGV is free from collision, reduce the failure rate and ensure the safety of the AGV robot carrying goods.

3. Can work in special environment

Compared with traditional manual handling, automatic handling robot can replace manual handling in narrow roads, harsh conditions and harmful environments, ensuring the safety of employees

4. Easy to manage

Compared with manual work, the handling robot is more convenient to manage. Although the initial cost is relatively high, in the long run, the cost invested can be recovered in one to two years

The application of AGV unmanned carrier in the factory has improved the operation efficiency, reduced the labor cost, and greatly reduced the waste of logistics and supply chain logistics in the enterprise. With the continuous development of logistics technology in factories and the changes brought about by intelligent manufacturing on logistics, more and more enterprises have noticed the intelligent logistics, so there is a broader market space.
