Heavy Duty Smart Cart Agv Automatic Material Transport Cart

Categories Automated Guided Carts
Brand Name: Remarkabl
Model Number: RWP/KPX/RGV/AGV
Certification: ISO9001,ISO14001,ISO45001,CE
Place of Origin: china
MOQ: 1
Payment Terms: L/C, T/T
Supply Ability: 500 sets/year
Delivery Time: 40 days
Packaging Details: The whole cart will be packed by the tarp, the parts will be packed by polywood case.
name: Automated Guided Carts
Power Supply: Maintenance Free Battery /lithium Battery
Climbing slope: No More Than 2 Degrees /customized
Brake: Electric Motor Brakes
Control Method: Remote Control/ Hand Operate Pendant/PLC
Warranty: 1 Year
Safety Features: Audible And Visual Alarm Lamp And Emergency Stop Button,Anti-collision Edge,Laser Obstacle Avoidance Sensor
feature: Automated ,explosion-proof,high temperature,Omnidirectional movement/Lifting/Clamping device/customized

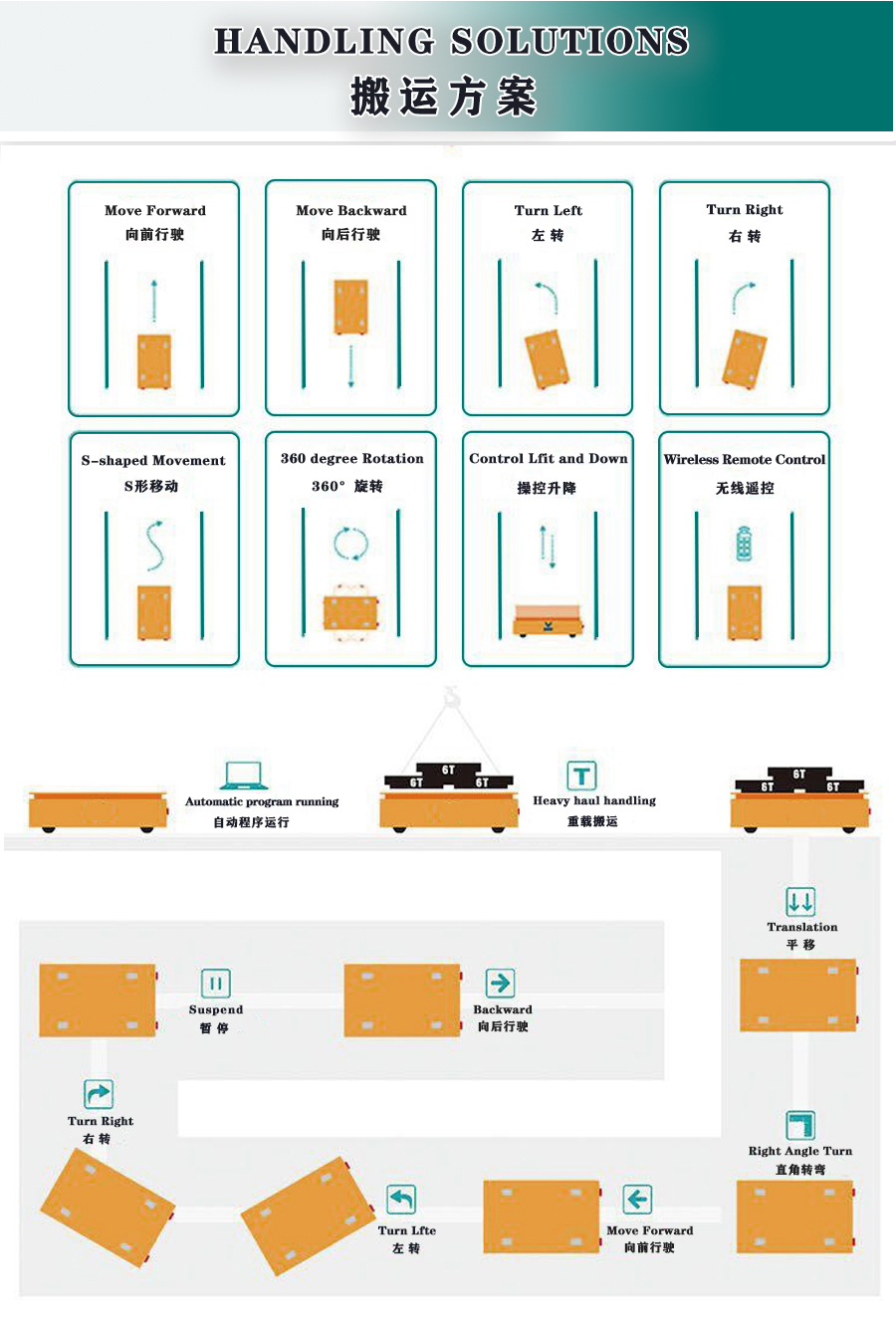

Move Way: Forward,backward,Omnidirectional movement, horizontally and diagonally movement, and can rotate 360 degrees in place ,turning while driving with no stop
Application: Industrial Filed,hydropower industry,military industry, automobile industry,Widely, Material or stock shuttle, Light and heavy industry, Workshop/factory etc
Running speed: 0-25 M/min(Adjustable)
Key words: transfer cart,transfer trolley,battery transfer trolley,Industrial Transfer Cart,Coil transfer transfer cart,heavy-duty transporter, trackless transfer cart, Transfer Cart,
Steering mode: Differential , hydraulic, steering wheel
model: Automatic transfer cart AGV/RGV
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

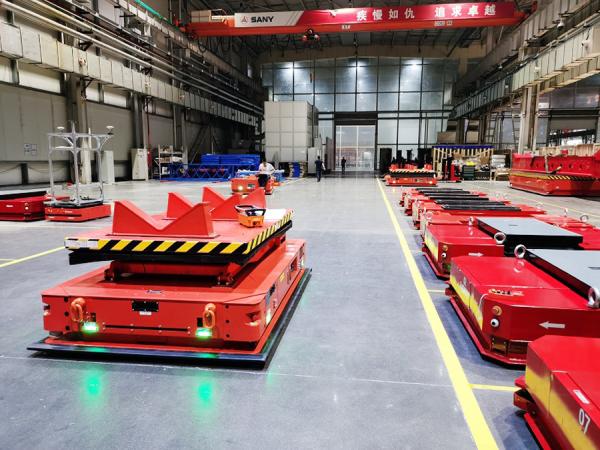

Heavy Duty Smart Cart Agv Automatic Material Transport Cart

Heavy Duty Automated Guided Carts For Industrial Automatic Material Transport Cart

Automatic material Transport Automated guided carts manufactured by REMARKABLE are custom-built carts, designed to specifications agreed with the client and with an extremely high load capacity: up to 300 tonnes.These automatic agv transport cart for manufacturing industry have been conceived and built to realize their utmost working flexibility.Because they have no predefined path and can steer in any direction and move on any kind of floor. And these transport car are very useful to bring the heavy loads where overhead cranes cannot arrive.

Automated guided carts also known as AGV handling robot has the functions of automatic lifting, automatic guiding, running control, anti-collision, running prompt, all-round steering, adapting to uneven ground, etc. It is easy to operate, high in safety and stable in operation.

AGV cart is a computer controlled, driverless vehicle for transporting heavy loads, with automatic self-loading/unloading capabilities if required. The AGV is pre-programmed, moves autonomously without the presence of an operator, within factories and warehouses, in both indoor and outdoor environments. It is effectively an online robot which can respond in real time to frequent changes in production operations and absorb the impact of real time decision making.

The specifications of the AGV for your specific use case are drawn up together with Morello’s technical team who have the experience to outline and advise on the best solution to optimise your operations.

Overall, the AGV Cart is a valid cost-effective material handling transportation system allowing companies to streamline manufacturing and warehousing operations with specific operational advantages.

The automation rail transfer cart advantages:

– faster transport times, thus saving man-hours;

– the elimination of human error in the alignment of tracks, which may lead to problems when loading the materails;

– improved safety during movement thanks to the certified safety components installed on-board the machine, which minimise the risk of damage to property or persons by the automatic transfer cart RGV;

– possibility for complete process automation.China Foundry Parts Mold Die Rail Transfer Cart With Limited Switch

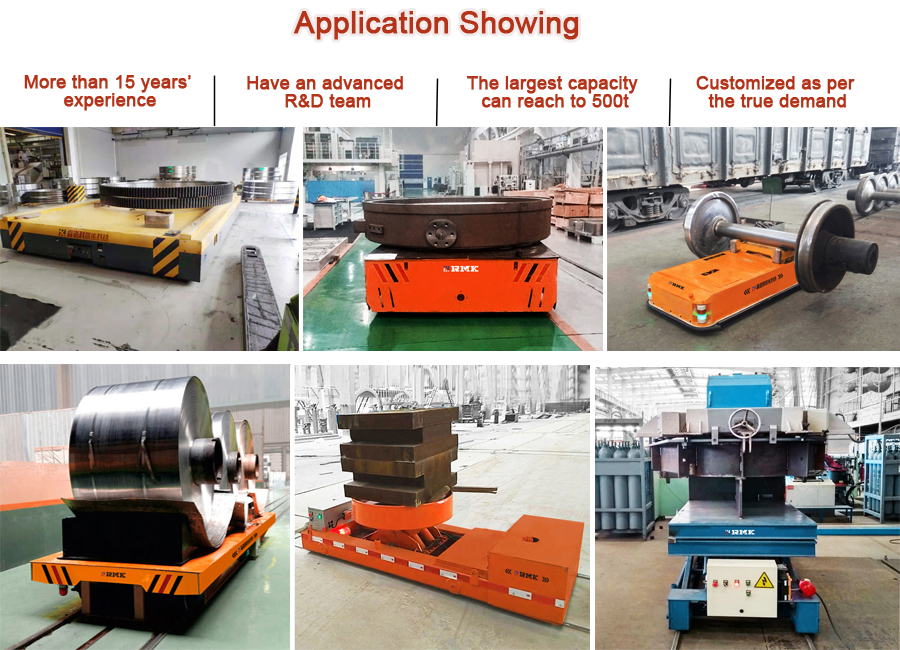

Transfer carts are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base. we have the solution you need and each style can be designed for your specific application.


Technical parameters for trackless electric transfer carts
rated load(t)5101520304050150
impacted rated load(t)7.51522.530456075225
structure of framesteel plates welded, beam structure
max. wheel load(t)2.84.34.85.67.7101227
ground requirementcement floorsteel plate ground
table size(mm)3000×20003600×20004000×22004500×22005000×22005500×23006000×230010000×3000
height of the whole cart(mm)4505306006006507007001200
ground clearance(mm)5075
wheels base(mm)1500170018002000
axles distance(mm)250031003400390043004800520010000
turning radius(mm)250131013401390143014801520110001
turning typeturning while driving with no stop
control method for turningcontrol button
turning structuremechanical
motor power(Kw)3.556710121515
wheel diameter(mm)Ф300 x 4Ф350 x 4Ф400 x 4Ф400 x 6Ф500 x 6Ф600 x 8
wheel materialZG55+hydropur ture
running speed(m/min)0-150-12
brake principleelectric magnetic brake
operation methodwith wire or no wire
battery modelD-250 x 24D-33 x 24D-400 x 24D-440 x 24D-250 x 36D-330 x 36D-440 x 36D-600 x 36
battery maintenancefree of maintenance
charger's installationinstalled on cartsplit-type
charger functionautomatic charging
radar control3-0.3m, automatic stop for obstacles
warning equipmentsound and light
other functionsturning light, night light and power display
