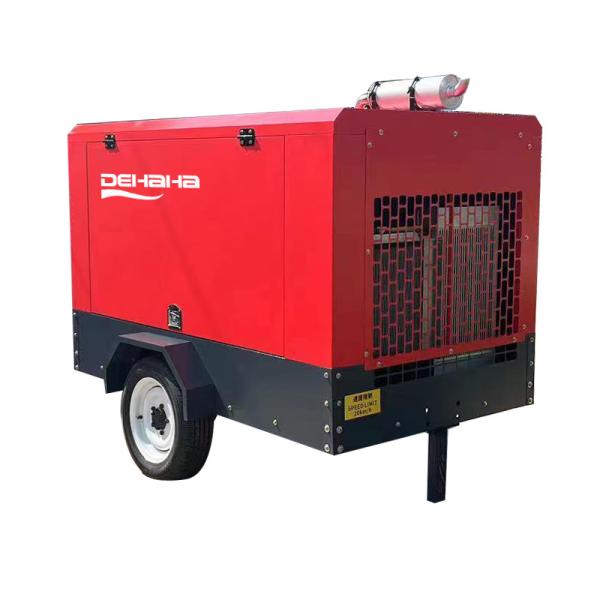

Two Stage Diesel Industrial Portable Air Compressor For Mining 18.5 Kw 8 Bar 140cfm

Two Stage Diesel Industrial Portable Air Compressor For Mining 18.5 Kw 8 Bar 140cfm

Two Stage Diesel Industrial Portable Air Compressor For Mining 18.5 Kw 8 Bar 140cfm
Two Stage Diesel Industrial Portable Air Compressor For Mining 18.5 Kw 8 Bar 140cfm
Categories Portable Diesel Air Compressor
Brand Name: dhh
Model Number: DHHLGI1-4/8-18. 5
Certification: CE/ISO9001
Place of Origin: Jiangsu
MOQ: 1 SET
Price: Negotiate
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 600 set/month
Delivery Time: 20 days
Packaging Details: Wooden box
Product name: Diesel compressor
Type: Screw
Configuration: PORTABLE
Power Source: Diesel
Voltage: 380V/50hz or customer's requirement
Protection class (optional): IP23/ IP54
Working Pressure: 8 bar
Gas Type: Air
Capacity: 4 to 20 m3/min
Power: 18.5 to 110 kW
Pressure: 8 bar to 10 bar
Lubricating oil Capacity: 18L
Number of tires and loading capacity: 2 Pcs/1505kg/Pc
Way of moving: 2 wheels
Rotation Speed: 1480 RPM
Screw air end/ compression grade: Twin screw/Two stage compression
Contact Now
Company Info.
Dhh Compressor Jiangsu Co., Ltd
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Two Stage Diesel Industrial Portable Air Compressor For Mining 18.5 Kw 8 Bar 140cfm

Two stage 18.5 kw 8 Bar 140cfm Diesel industrial portable air compressor for mining


Product Description


Diesel portable screw air compressor can meet the requirements of overload use and can withstand harsh environments. Install the flat structure of the fuel tank, place it around each fuel tank, increase the oil reserve, make the fueling interval longer, and balance the weight on both sides. Not only is it convenient for maintenance services, it also reduces fuel consumption and greatly reduces operating costs.


Product Feature

● Diesel Engine
The choice of domestic and foreign famous brand diesel engines such as cummins and yuchai meets the national IIemission standards, with strong power and low fuel consumption. Perfect service.
● High Reliability
Less compressor parts, without wearing parts, so it is reliable, long life, overhaul interval is up to 40 to 80 thousand hours.
● The Power Balance is Good
There is no unbalanced inertia force, can smoothly high-speed operation, can achieve no basic operation, especially suitable for portable compressors, small size, light weight, small footprint.
● Strong Adaptability
With a mandatory gas transmission characteristics, the volume flow is almost free from the impact of exhaust pressure, in a wide range of speed to maintain high efficiency.
● Easy Operation and Maintenance
A high degree of automation, the operator does not have to go through a long period of professional training, can achieve unattended operation.

Portable diesel screw air compressors parameter list:

ModelPower (kW)Rated speed (RPM)Air Delivery (m3/min)Pressure (Mpa)Screw air end/ compression gradeVoltage (V) (optional)Protection class (optional)Lubricating oil Capacity (L)Number of tires and
loading capacity		Way of movingMoving speed (KM/H)Movement Steering Rotation AngleMobile Turning Radius R(M)
DHHLGI1-4/8-18. 518.5148040.8Twin screw/Two stage compression380/660IP23/ IP54182 Pcs/1505kg/Pc2 wheels≤60any angle1.6
DHHLGI1-6/8-3030148060.8Twin screw/Two stage compression380/660IP23/ IP51262 Pcs/1505kg/Pc2 wheels≤60any angle1.6
DHHLGI1-10/8-45451480100.8Twin screw/Two stage compression380/660IP23/ IP54362 Pcs/1505kg/Pc2 wheels≤60any angle1.6
DHHLGI1-13/8-5555
55		1480
1480		13
13		0.8
0.8		Twin screw/Two stage compression
Twin screw/Two stage compression		380/660
380/660		IP23/ IP54
IP23/ IP-54		45
45		2 Pcs/1615kg/Pc
4 Pcs/1615kg/Pc		3 wheels
4 wheels		≤60
≤20		any angle
30°		2.5
10
DHHLGI1-16/8-7575
75		1480
1480		16
16		0.8
0.8		Twin screw/Two stage compression
Twin screw/Two stage compression		380/660
380/660		IP23/ IP54
IP23/ IP54		54
54		2 Pcs/1615kg/Pc
4 Pcs/1615kg/Pc		3 wheels
4 wheels		≤60
≤20		any angle
30°		2.5
10
DHHLGI1-16/10-9090
90		1480
1480		16
16		1.0
1.0		Twin screw/Two stage compression
Twin screw/Two stage compression		380/660
380/660		IP23/ IP54
IP23/ IP54		54
54		2 Pcs/1615kg/Pc
4 Pcs/1615kg/Pc		3 wheels
4 wheels		≤60
≤20		any angle
30°		2.5
10
DHHLGII-13/14. 5-90901480131.15Twin screw/Two stage compression380/660IP23/ IP54544 Pcs/1615kg/Pc4 wheels≤2030°10
DHHLGII-13/17-110110
110		1480
1480		13
13		1.7
1.7		Twin screw/Two stage compression
Twin screw/Two stage compression		380/660
380/660		IP23/ IP54
IP23/ IP54		65
65		2 Pcs/1615kg/Pc
4 Pcs/1615kg/Pc		3 wheels
4 wheels		≤60
≤20		30°
30°		3
15
DHHLGII-15/14. 5-110110
110		1480
1480		15
15		1.15
1.15		Twin screw/Two stage compression
Twin screw/Two stage compression		380/660
380/660		IP23/ IP54
IP23/ IP54		65
65		2 Pcs/1615kg/Pc
4 Pcs/1615kg/Pc		2 wheels
4 wheels		≤60
≤20		any angle
30°		3
15
DHHLGI1-20/8-9090
90		1480
1480		20
20		0.8
0.8		Twin screw/Two stage compression
Twin screw/Two stage compression		380/660
380/660		IP23/ IP54
IP23/ IP54		65
65		2 Pcs/1615kg/Pc
4 Pcs/1615kg/Pc		3 wheels
4 wheels		≤60
≤20		any angle 30°3
10
DHHLGII-20/10-110110
110		1480
1480		20
20		1.0
1.0		Twin screw/Two stage compression
Twin screw/Two stage compression		380/660
380/660		IP23/ IP54 IP23/ IP5465
65		2 Pcs/1615kg/Pc
4 Pcs/1615kg/Pc		2 wheels
4 wheels		≤60
≤20		any angle 30°3
15

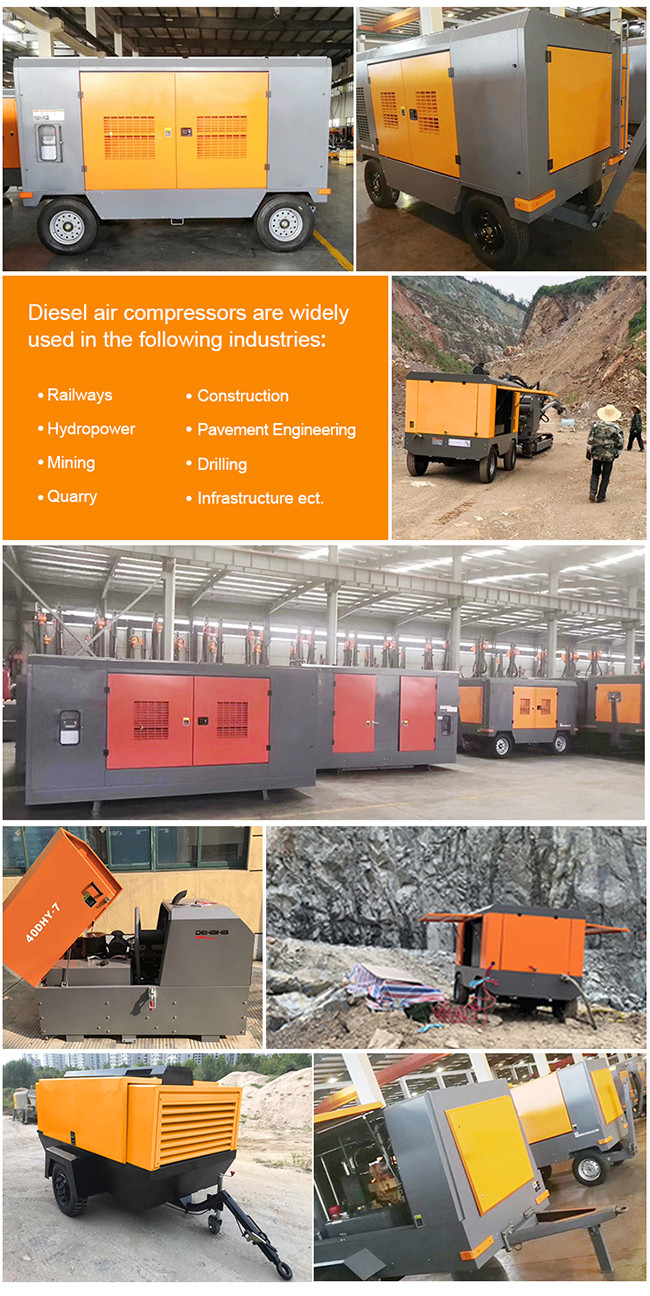

Application industry
Diesel-driven screw air compressor tubes are widely used in mining, drilling, urban construction, road repair, bridge repair, engineering rescue and other industries.
Project Case


About us

Dehaha Compressor was founded in 1996 with over 150 skilled employees and more than 25 R&D engineersteams ’ . We focus on the research & develop,manufacture and energy-saving solutions of screw air compressor to create value for customers and society.In 2018 our total sales volume approached 15 million US dollars.By over 23 years enhanced experiences of designing,producing and marketing,today our valued customers are over 130 countries.


Germany Standard and 13 years exporting experience help us won more than 50 loyal overseas agents.

Dehaha’s primary businesses focus in following key areas:
Oil-injected rotary screw compressors
Portable screw air compressors
Oil free air compressors
High pressure air compressors
Air treatment equipment


Our Services

1.24/7 after sales service support in different languages.
2.Follow up the feedback of products in 2 months interval by email or call.
3.Guidance of installation and commissioning on site can be provided by factory-trained technicians or local Authorized Service Center.
4.Technical training for customers in DEHAHA air compressor factory or working site.
5.Plenty of original spare parts with proven quality are all available from our central stocks in Shanghai and all distributors’depots.
6.All kinds of technical documents in different languages.
