| Categories | Portable Diesel Air Compressor |
|---|---|
| Place of Origin: | Jiangsu |
| Brand Name: | dhh |
| Model Number: | 50DHY-7 |
| Packaging Details: | Wooden box |
| Price: | Negotiate |
| Certification: | CE/ISO9001 |
| MOQ: | 1 SET |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Delivery Time: | 25 days |
| Supply Ability: | 600 set/month |
| Product name: | 10 bar Diesel air compressor |
| Condition: | New |
| Type: | Screw |
| Configuration: | PORTABLE |
| Power Source: | Diesel |
| Lubrication Style: | Lubricated |
| Mute: | Yes |
| Dimension(L*W*H): | 2110*1500*1620mm |
| Warranty: | 2 Years |
| Working Pressure: | 7 bar, 8 bar |
| Gas Type: | Air |
| Color: | yellow and gray |
| Application: | for tunneling and constuction |
| Pressure: | 10 bar |
| Capacity: | 185cfm |
| Motor: | 50KW |
| Weight: | 780KG |
| OEM: | Offered |
| Cooling way: | Air Cooling |
| Company Info. |
| Dhh Compressor Jiangsu Co., Ltd |
| View Contact Details |
| Product List |

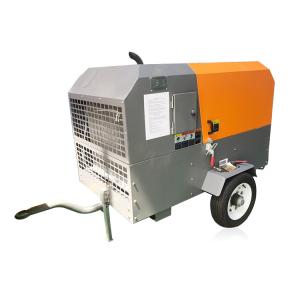

Model: 50DHY-7
1. Diesel engine driven screw air compressor
2. Type:Rotary Twin Screw, one-Stage
3. Free air delivery: 175cfm
4. Normal working pressure:10 bar
5. Diesel engine: Yuchai 50kw
6. Cooling: by air
7. Control type: Micro PLC controller
8. Driven: direct driven
9. Dimension:2110*1500*1620mm
10. Weight:780kg
11. Noise level: less than 85 db(A)
12. Outlet connection: 2
13. Connection size: G1" and G1 1/2" (can be customized)
14. Wheel: 15"*2 pcs
Characteristic advantage
●High Reliability
Less compressor parts, without wearing parts, so it is reliable,
long life, overhaul interval is up to 40 to 80 thousand hours.
●The Power Balance is Good
There is no unbalanced inertia force, can smoothly high-speed
operation, can achieve no basic operation, especially suitable for
portable compressors, small size, light weight, small footprint.
●Strong Adaptability
With a mandatory gas transmission characteristics, the volume flow
is almost free from the impact of exhaust pressure, in a wide range
of speed to maintain high efficiency.
●Easy Operation and Maintenance
A high degree of automation, the operator does not have to go
through a long period of professional training, can achieve
unattended operation.
Protable Diesel Screw Air Compressor (Low,Medium Presssure Series)
| Model | Pressure (Mpa/bar) | Air delivery(m3/min) | Oil content(ppm) | Diesel Power(kW/HP) | Weight(kg) | Dimensions(mm) | |
| (m3/min) | cfm | ||||||
| 42DHY | 0.7/7 | 4 | 141.2 | ≤6 | 42/57 | 780 | 2110*1500*1620 |
| 50DHY | 07/7 | 6 | 211.8 | ≤6 | 50/68 | 1050 | 2532*1682*1684 |
| 58DHY two wheels | 0.8/8 | 7 | 247.1 | ≤6 | 58/80 | 1550 | 3140*1740*1900 |
| 110DHY-8 four wheels | 0.8/8 | 12 | 423.6 | ≤6 | 110/150 | 2480 | 3120*1630*2290 |
| 110DHY-10 two wheels | 1.0/10 | 12 | 423.6 | ≤6 | 110/150 | 2260 | 2890*2020*2270 |
| 110DHY-10 four wheels | 1.0/10 | 12 | 423.6 | ≤6 | 110/150 | 2260 | 3120*1630*2290 |
| 110DHY-14.5 two wheels | 1.45/14.5 | 10 | 353 | ≤6 | 110/150 | 2130 | 2890*2020*2270 |
| 110DHY-14.5 four wheels | 1.45/14.5 | 10 | 353 | ≤6 | 110/150 | 2180 | 3120*1630*2290 |
| 138DHY-14.5 four wheels | 1.45/14.5 | 13 | 458.9 | ≤6 | 140/180 | 3000 | 3350*2060*2350 |
| 139DHY-13 four wheels | 1.3/13 | 15 | 529.5 | ≤6 | 140/180 | 3000 | 3650*1700*2040 |
| 141DHY-13 four wheels | 1.3/13 | 15.5 | 547.2 | ≤6 | 140/180 | 2510 | 3650*1700*2040 |
| 180DHY-8 four wheels | 0.8/8 | 20 | 706 | ≤6 | 179/240 | 3800 | 3720*1970*2250 |
| Model | Pressure (Mpa/bar) | Air delivery(m3/min) | Oil content(ppm) | Diesel Power(kW/HP) | Weight(kg) | Dimensions(mm) | |
| (m3/min) | cfm | ||||||
| 177DHY-17 four wheels | 1.7/17 | 16 | 564.8 | ≤6 | 177/240 | 3800 | 3720*1970*2250 |
| 188DHY-18 four wheels | 1.8/18 | 18 | 635.4 | ≤6 | 191/260 | 3650 | 3720*1970*2250 |
| 195DHY-19 four wheels | 1.9/19 | 19 | 670.7 | ≤6 | 194/260 | 3830 | 3720*1970*2250 |
| 198DHY-18 four wheels | 1.8/18 | 18 | 635.4 | ≤6 | 191/260 | 3900 | 3720*1970*2250 |
| 250DHY-17 four wheels | 1.7/17 | 22 | 776.6 | ≤6 | 250/340 | 4800 | 3810*2000*2900 |
| 260DHY-21 four wheels | 2.1/21 | 21 | 741.3 | ≤6 | 250/340 | 4590 | 4510*2000*2900 |
| 228DHY-21 four wheels | 2.1/21 | 21 | 741.3 | ≤6 | 228/310 | 4060 | 3800*1870*2250 |
| 228DHY-22 four wheels | 2.2/22 | 27 | 953.1 | ≤6 | 295/380 | 4910 | 4150*2000*2900 |
