The Miner's Power Partner Portable Diesel Screw Air Compressor

The Miner's Power Partner Portable Diesel Screw Air Compressor

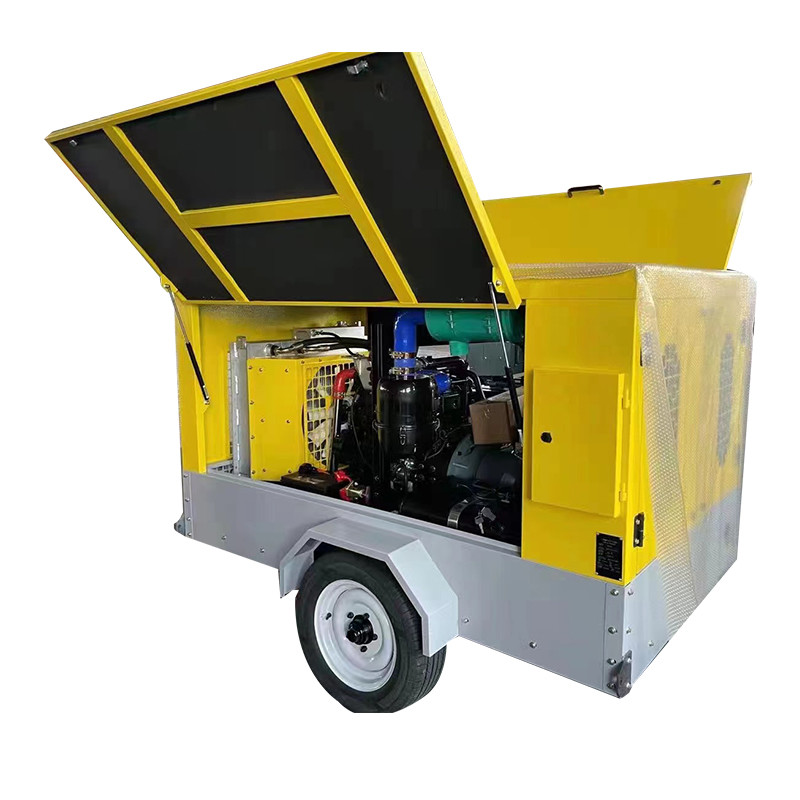

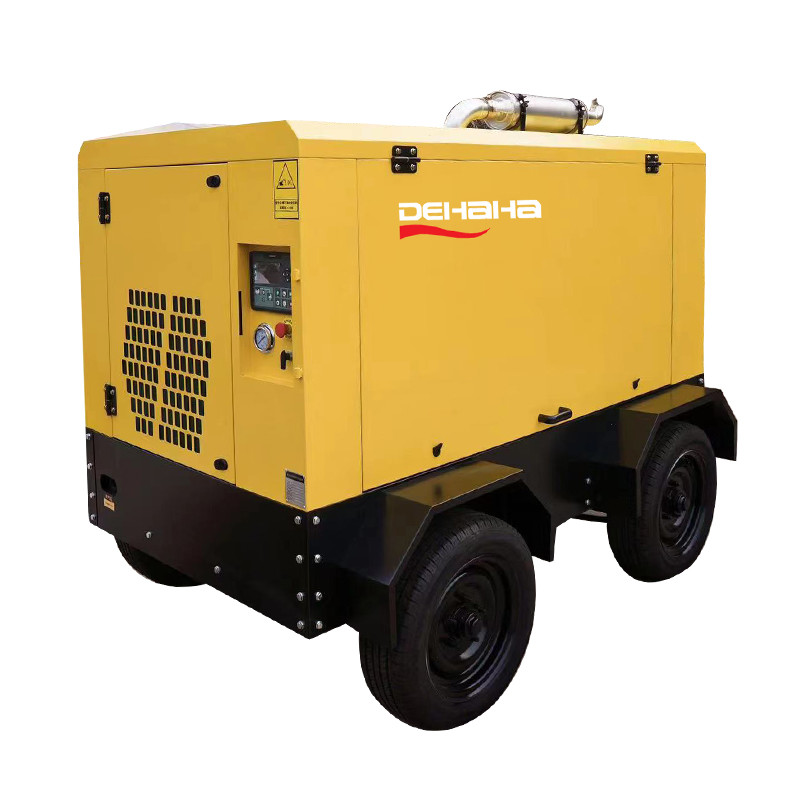

Heavy-Duty Mobile Mining Diesel Air Compressor

The 637 CFM, 18-bar industrial portable air compressor is designed for demanding mining applications. This diesel-powered screw compressor excels under overload conditions and withstands tough environments. With a flat fuel tank design, it maximizes oil reserves, extends refueling intervals, and ensures balanced weight distribution. This setup not only facilitates maintenance but also reduces fuel consumption and significantly lowers operating costs.

Product Features

Diesel Engine Equipped with renowned diesel engines from brands like Cummins and Yuchai, this compressor meets national II emission standards. It delivers robust power while maintaining low fuel consumption, ensuring reliable performance.

High Reliability Featuring fewer components and no wearing parts, this compressor is exceptionally reliable, boasting a lifespan of up to 40,000 to 80,000 hours between overhauls.

Good Power Balance Engineered to eliminate unbalanced inertia forces, it operates smoothly at high speeds, making it ideal for portable applications. Its compact size, lightweight design, and small footprint enhance mobility.

Strong Adaptability With efficient gas transmission characteristics, this compressor maintains high performance across a wide range of speeds, largely unaffected by exhaust pressure.

Easy Operation and Maintenance Highly automated, the compressor is user-friendly, requiring minimal training for operators and allowing for unattended operation.

Specifications

• Model: DHHLGII-18/18-194
• Air Delivery: 18 m³/min
• Working Pressure: 18 bar
• Power: 194 kW
• Rated Speed: 2200 RPM
• Compression Type: Twin screw, two-stage compression
• Voltage Options: 380/660 V
• Protection Class Options: IP23/IP54
• Lubricating Oil Capacity: 72 L
• Tires and Loading Capacity: 4 pcs, 1880 kg each
• Mobility: 4 wheels
• Max Speed: ≤20 KM/H
• Steering Angle: 30°
• Turning Radius: 18 M



DHH Compressor Jiangsu Co., Ltd. was established in 1996 and has 26 years of experience in the air compressor industry. It’s an innovative factory which integrates production, trade, service,research and development. We focus on research, development and manufacture screw air compressors of world's newest energy-saving and intelligent internet information system with the industry's top technology and elite engineering team.

Products include:

• Oil-injected screw air compressor (7.5~630kW)

• Oil-free air compressor, screw and scroll (7.5~ 400kW)

• Combined screw air compressor for fiber laser cutting applications

• 3 to 5bar Low pressure screw air compressor (7.5~400kW)

• Portable diesel screw air compressor (42~295kW)

The company has obtained ISO9001, EU CE certification, CLASS 0 oil-free certification, German TUV certification, and obtained more than 20 patent certificates. In 2018, we were rated as "High-tech Enterprise" and "Private Technology Enterprise", etc.

Our factory is located in Qidong City, Jiangsu Province, adjacent to Shanghai. We have more than 150 skilled employees and 25 engineers, and we are very strict in every step of manufacturing. The company has a professional international trade center located in Shanghai, China. The company conducts brand promotion and service in the global market with branches in English, French, Russian, Spanish and Portuguese. Now, our valued customers are located in more than 130 countries. Germany technology and 14 years of export experience have helped us to gain more than 50 loyal overseas agents.

DHH's mission is to become a world-renowned high-end brand, with sustainable development, continuously improve its own value, and it is committed to provide our customers with energy-saving products
