Categories | Outdoor Fixed LED Display |
---|---|
Brand Name: | Shenzhen LED World |
Model Number: | LW-FO 4 |
Certification: | CE,RoHS,FCC,CCC |
Place of Origin: | China |
MOQ: | 1 square meter |
Price: | negotiable |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 5,000 square meters per month |
Delivery Time: | 10~20 days after receiving the deposit |
Packaging Details: | Carton/Plywood case etc. |
Module weight: | 0.33kg |
Cabinet size: | 1024mm*768mm |
Best view distance: | 4m~200m |
Max power consumption: | 1200w/sqm |
Warranty: | 2 years |
Grey scale: | 16384 |
Lifetime to 50% brightness: | 75000hours |
Pixel pitch: | 4mm |
Module resolution: | 64*32 dots |
LED configuration: | SMD2525 |
Company Info. |
Shenzhen LED World Co.,Ltd |
View Contact Details |
Product List |

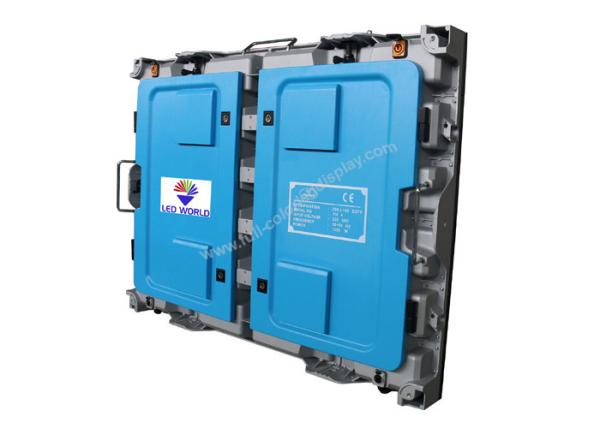

Outdoor series fixed led display_201905211506521.p...Outdoor permanent LED Display P4 screen with 1024mm x 768mm die casting cabinet
Outdoor permanent LED Display P4 screen features:
Outdoor permanent LED Display P4 screen parameter:
Model number | P4 |
Pixel pitch | 4mm |
Module resolution | 64*32 dots |
Module size | 256mm*128mm |
Cabinet resolution | 256*192 dots |
Cabinet size | 1024mm*768mm |
Pixel density | 62500dots/sqm |
LED configuration | SMD2525 |
Module weight | 0.33kg |
Average consumption | 700w/sqm |
Best view distance | 4m~200m |
View angle | 140º |
Brightness | ≥6500cd/sqm |
Scanning | 1/8scan |
Refresh rate | ≥1920Hz |
Frame frequency | 60Hz |
Max power consumption | 1200w/sqm |
Warranty | 2years |
Grey scale | 16384 |
Working voltage | 220VAC/50Hz±10% |
Life span | 100000hours |
Lifetime to 50% brightness | 75000hours |
Working temperature | –20℃ to +60℃ |
Certification | CCC/CE/RoHS |
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. |
Our service:
Why choose LED World:
Trade term:
Advantage:
Outdoor permanent LED Display P4 screen detail:
![]() |
