8CH DWDM Multiplexer Network Device For Multiplexing Dual Fiber 1U Rack

8CH DWDM Multiplexer Network Device For Multiplexing Dual Fiber 1U Rack

8CH DWDM Multiplexer Network Device For Multiplexing Dual Fiber 1U Rack
8CH DWDM Multiplexer Network Device For Multiplexing Dual Fiber 1U Rack
Categories DWDM Device
Brand Name: Iseelink
Model Number: DWDM-8ch
Certification: CE, ROHS
Place of Origin: China
MOQ: 1pc
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Delivery Time: 3-5days
Product Nmae: 8CH DWDM MUX/DEMUX
Channel: 8ch
Center Wavelength Accuracy: +-0.1nm
Channel Spacing: 0.8nm (100GHz)
Contact Now
Company Info.
Shenzhen iseelink Communication Technology Co., Ltd.
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

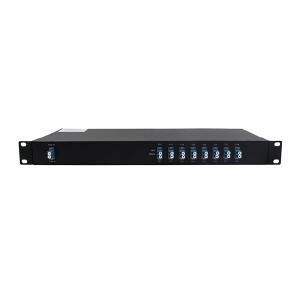

8CH DWDM Multiplexer Network Device For Multiplexing Dual Fiber 1U Rack

16ch DWDM MUX/DEMUX Plug-and-Play for Fiber Capacity Increase


The 8CH DWDM MUX/DEMUX is ideal for increasing the fiber capacity between two sites without the need for installing or leasing additional fibers. It may be used as a standalone tabletop device or mounted in a 1-unit space of a 19” data rack. It can achieve 8ch duplex data multiplex and de-multiplex.
The complete passive solution requires no power cabling and no configuration; it is a true plug-and-play solution.

Product Features

● 8 Channel 100 GHz DWDM combined Multiplexer and Demultiplexer (MUX and DEMUX)
● Standalone compact form factor-1U, Installation friendly
● Plug’n play: requires no configuration
● Green product: completely passive, needs no power and no cooling
● Low Low insertion loss, insertion loss <=3dB,
● High channel isolation:adjacent isolation >=25dB; non-adjacent isolation >=40dB
● Compatible with 100GHz ITU Grid DWDM active transponders and transceivers from HTFuture and other third parties
● High reliability, MTBF of 100 years
● Designed for Telcordia / Bellcore GR-120

Product Application


  • DWDM transmission
  • Metro and long-haul networks
  • Point-to-point DWDM fiber optimization
  • Linear add/drop DWDM fiber optimization
  • DWDM peer-to-peer case
  • DWDM chain network case
  • DWDM+OLP optical line protection Case
  • DWDM Ring network case
  • DWDM single fiber bidirectional networking case
  • DWDM ultra long-distance solution

Product Specification


Parameter4 Channel8 Channel16 Channel
MUXDEMUXMUXDEMUXMUXDEMUX
Channel Wavelength (nm)ITU 100GHz Grid
Center wavelength Accuracy(nm)±0.1
Channel Spacing (nm)0.8nm(100GHz)
Channel Passband(@-0.5dB bandwidth (nm)>0.25
Insertion Loss (dB)<=1.8<=3.0<=4
Channel Uniformity (dB)<=0.6<=1.0<=1.5
Channel Ripple (dB)0.3
Isolation (dB)AdjacentN/A>30N/A>30N/A>30
Non-adjacentN/A>40N/A>40N/A>40
Inertion Loss Temperature Sensitivity (dB/℃)<0.005
Wavelength Temperature Shifting (nm/℃)<0.002
Polarization Dependent Loss (dB)<0.1<0.1<0.15
Polarization Mode Dispersion<0.1
Directivity (dB)>50
Return Loss (dB)>45
Maximum Power Handling (mW)300

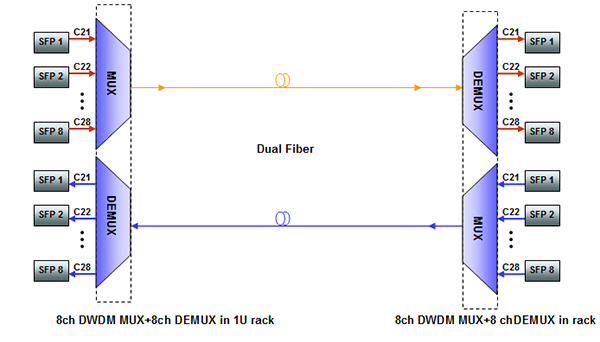

Product Application
