16channel Mux Demux DWDM Device Multiplexer Network For OSP3800 System

8ch MUX/DEMUX WDM Wavelength Division Multiplexing Device for 5G Network Long Haul Network

MUX & demux is a wavelength division multiplexing (WDM) based combiner / demultiplexer board, which multiplexes multiple standard DWDM or CWDM wavelengths on the same optical fiber for transmission. The demultiplexing board is used to demultiplex multiple standard DWDM or CWDM wavelengths transmitted on a single fiber.

Product Features

• Support 4 CH / 8 CH / 16 CH
• Plug’n play: requires no configuration
• Green product: completely passive, needs no power and no cooling
• Low insertion loss
• 4CH maximum insertion loss ≤1.8dB
• 8 CH maximum insertion loss ≤3dB
• 16CH maximum insertion loss ≤4.5dB
• High stability
• Insertion loss is stable, independent of fiber parameters
• Good characteristics,few affected by temperature
• High channel isolation
• Adjacent isolation ≥25dB
• Non-adjacent isolation ≥40dB

Product Application

• 16-channel DWDM optical signal multiplexed into one fiber
• 16-channel optical signal de-multiplexer to single-wavelength signals
• Telecom
• Datacenter
• 5G Network
• Long Haul Network

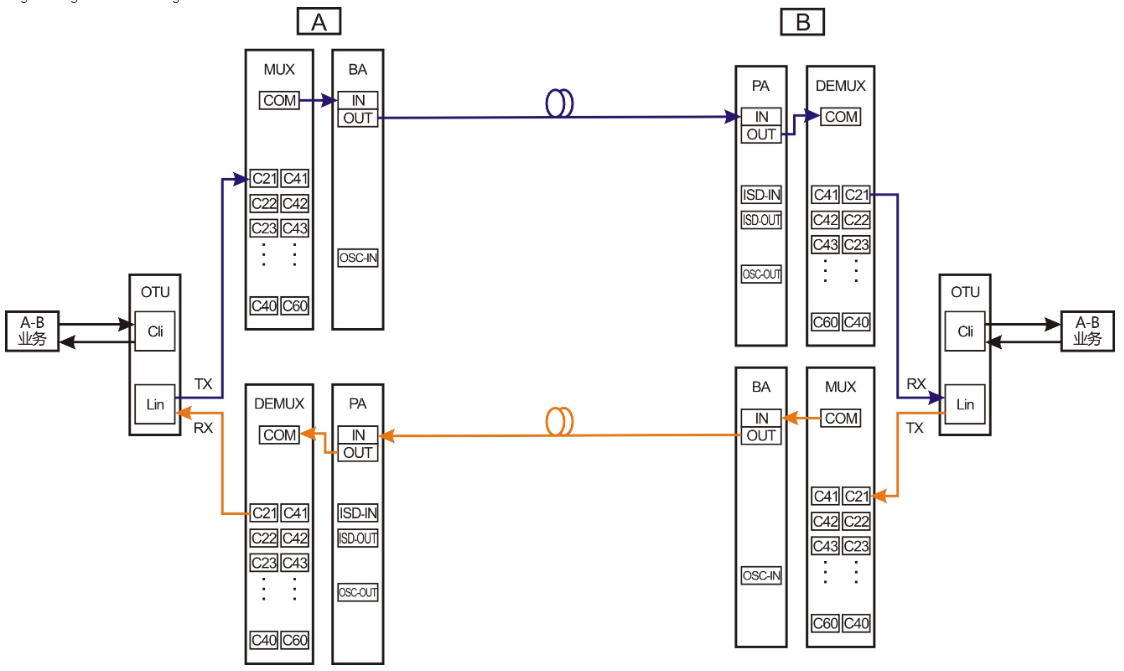

Functional Structure

Product Specification
